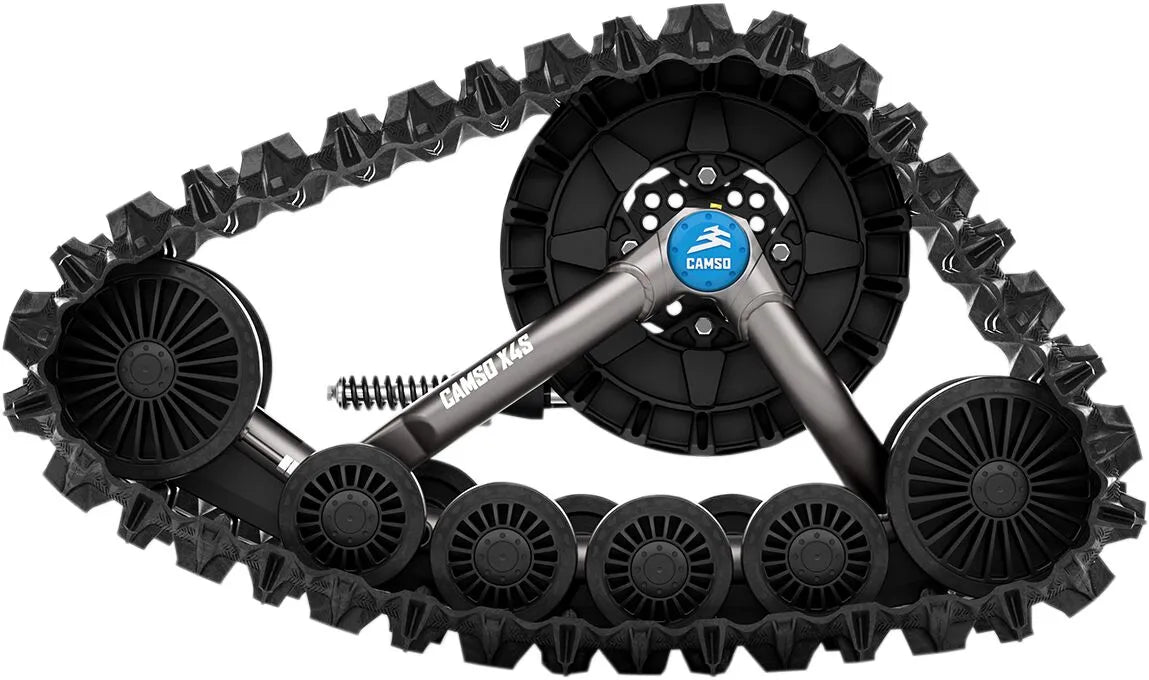

Camso X4S 4-Track System for ATV

Transform your ATV into an unstoppable all-terrain vehicle with the revolutionary Camso X4S 4-Track System. Designed for year-round performance, this advanced undercarriage track kit delivers unmatched versatility, stability, and handling across any landscape, from snow to mud to sand.

Description

The Camso X4S 4-Track System represents the pinnacle of ATV track technology, engineered to elevate your off-road experience. This comprehensive ATV track kit includes four robust tracks, providing superior traction and flotation compared to traditional wheels. Its innovative design features a new geometry solid steel frame, significantly enhancing front steering and overall handling, giving riders precise control in challenging conditions. The system boasts an impressive ground surface area of 1.30 m² (2000 square inches), distributing weight effectively and preventing sinking. With a front track width of 29.2 cm (11-1/2") and a rear track width of 31.8 cm (12-1/2"), the X4S ensures optimal balance and stability. Key components like the idler and mid-roller wheels have an increased width of 26 mm, offering superior track support and durability. These wheels are equipped with double bearing bolted-on designs for easier serviceability and feature standard, replaceable sealed bearings for cost-effective maintenance. Experience an elevated ground clearance of 39 cm (15-3/8"), allowing you to confidently navigate obstacles. This all-terrain track system is built for ultimate durability and performance, making it the ideal choice for serious ATV enthusiasts seeking an unparalleled riding adventure.

Features & Highlights

• Unmatched All-Terrain Versatility: The Camso X4S is engineered as the next generation track system, providing exceptional stability and handling on any terrain, from snow to mud, all year round.
• Enhanced Steering & Control: Featuring a new geometry solid steel frame, this system delivers superior front steering and handling, ensuring precise control and maneuverability.
• Robust Wheel Design: Idler and mid-roller wheels boast an increased 26 mm width for better track support, combined with double bearing bolted-on wheels for simplified servicing.
• Economical Maintenance: Equipped with standard and replaceable sealed bearings, the X4S ensures long-term, cost-effective maintenance without compromising performance.
• Superior Traction & Flotation: With four high-performance tracks, the kit offers a substantial 1.30 m² (2000 square inch) ground surface, significantly improving traction and flotation over varied landscapes.
• Optimized Dimensions: Front track length of 237.2 cm (93-3/8") and rear track length of 250.2 cm (98-1/2") provide optimal contact and stability, while front and rear track widths are 29.2 cm (11-1/2") and 31.8 cm (12-1/2") respectively.

Technical Specifications

• Type: Track System
• Units: Set (4 Tracks)
• Product Name: Undercarriage Track System
• Front Track Length: 237.2 cm (93-3/8")
• Rear Track Length: 250.2 cm (98-1/2")
• Front Track Width: 29.2 cm (11-1/2")
• Rear Track Width: 31.8 cm (12-1/2")
• Front Height: 60.45 cm (23-13/16")
• Rear Height: 58.93 cm (23-3/16")
• Ground Clearance: 39 cm (15-3/8")
• Ground Surface: 1.30 m² (2000 square inch)
• Idler/Mid-Roller Wheel Width: 26 mm
• Tooth Count: 15, 18
• Vendor Part Number: P242-ZZ-1818
• EAN: 45101422

Important to Know

• An adapter kit is required for mounting this track system to your specific vehicle and is not included with this purchase.
