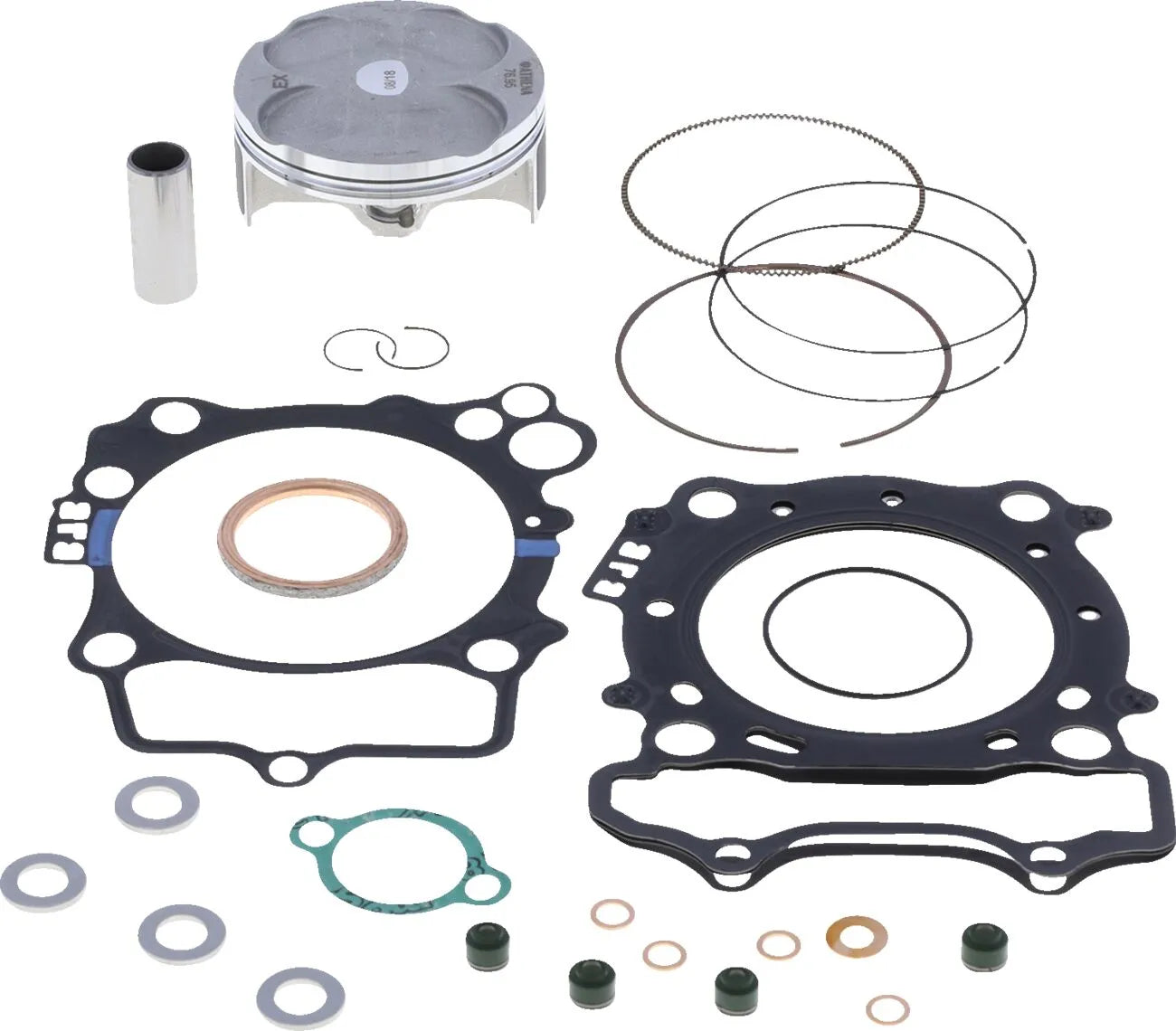

Athena Piston Kit with Gaskets - 76.96mm Bore - P5F0770212009B
Info del producto
- Número de artículo
- 09031715
- Número de fabricante
- P5F0770212009B
- Posición
Upgrade your 4-stroke off-road motorcycle with the Athena Piston Kit, meticulously engineered for superior performance and lasting durability. This kit provides the reliability of original equipment with enhanced resistance and output, ensuring your engine operates at its peak.
Description
The Athena Piston Kit is designed specifically for 4-stroke off-road motorcycles, utilizing reverse extrusion and CNC machining for precise construction. Crafted from a high-performance aluminum alloy with a high silicon content, this piston delivers exceptional strength and heat dissipation. The smooth piston profile promotes consistent flow and optimal flame propagation, leading to improved combustion efficiency. The included piston rings, manufactured in Japan, minimize friction with the cylinder wall, increasing overall performance. These rings feature wear-resistant coatings such as PVD or chromium nitride, ensuring extended retention and durability. Boost your engine's performance and longevity with this top-quality piston kit.
Features & highlights
- High-performance aluminum alloy construction ensures excellent reliability and resistance.
- Reverse extrusion and CNC machining provide precise dimensions and optimal fit.
- Smooth piston profile promotes regular flow and perfect flame propagation for enhanced combustion.
- Piston rings made in Japan with wear-resistant coatings (PVD or chromium nitride) for increased durability.
- Optimized design reduces friction and increases overall engine performance.
- Complete kit includes necessary gaskets for a straightforward installation.
Technical specifications
- Brand: Athena
- Part Number: 09031715
- Engine Type: 4-Stroke
- Displacement: 250 cc
- Bore Size: 76.96 mm
- Compression Ratio: 13.5:1
- Piston Material: Forged Aluminum Alloy
- Type: Top End
Important to know
Ensure compatibility with your specific motorcycle model before installation. Professional installation is recommended for optimal performance.
- Brand
- ATHENA
- Vendor part number
- P5F0770212009B
- Product name
- Piston Kit
- Bore size
- 76,96 mm
- Compression ratio
- 13.5:1
- Displacement
- 250 cc
- Piston material
- Aluminum Alloy, Forged
- Engine type
- 4-Stroke
- Type
- Top End
- Units
- Kit
