Axel Joost Elektronik Easy FP Keyless Ignition Switch

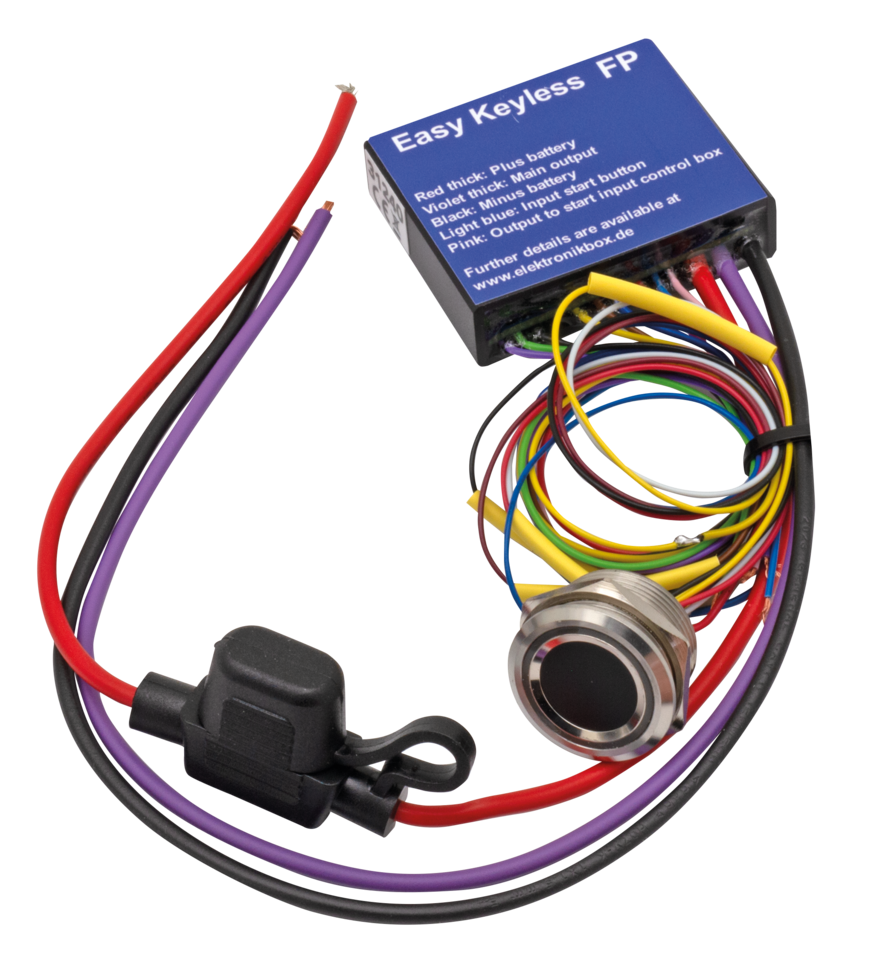

These keyless ignition switch solutions draw nearly no current in the standby mode and hereby saves your bikes battery power so you can start your bike even after not using it for months. The unit has two 20Amp load switches which control the power supply to the motorcycle and starter motor. All this is operated with just one switch button. Pressing the switch button once activates the power supply to the sending unit and, for the RFID version, automatically turns on the ignition if a registered electronic key is within range. The Fingerprint version is activated when your fingerprint is recognized. Pressing the button switch a second time activates the starter motor. The ignition is deactivated by shortly hitting the button switch again, which turns the unit off. The Easy RFID comes with one antenna and two RFID tags, the Easy FP comes with a 25mm threaded fingerprint sensor. When installed together with a control box from Elektronikbox there is no need to wire an extra button to the module. The units have an extra output what simulate the function of a start button, resulting that you can use your original start button at the bike also for the activation of the module. Comes complete with comprehensive installation manual.

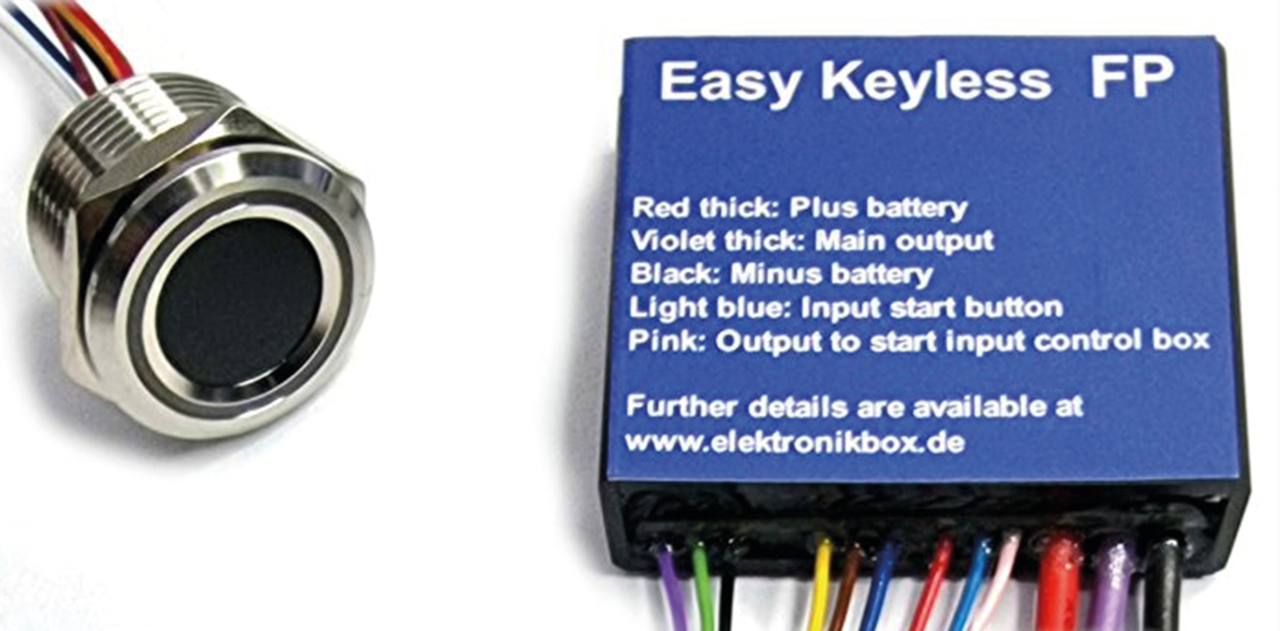

Easy FP fingerprint Keyless Ignition Switch Module

Easy Keyless Ignition Fingerprint

• Category: Ignition Switches
