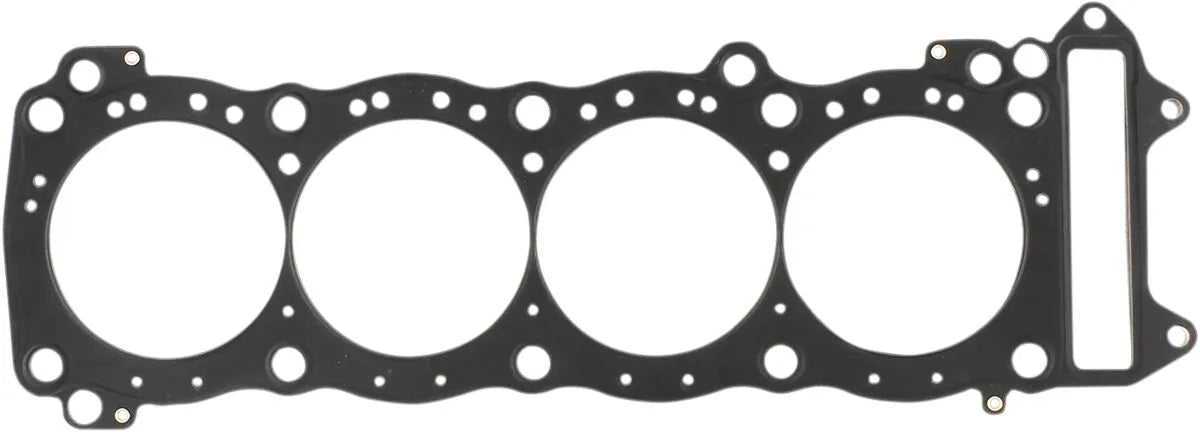

Cometic Cylinder Head Gasket - C8658-018

Ensure peak engine performance and sealing integrity with the Cometic 84mm cylinder head gasket. Engineered for demanding motorcycle applications, this high-performance gasket offers superior durability and a precise fit for 1396cc engines.

Description

The Cometic 84mm cylinder head gasket is meticulously engineered to provide an unyielding seal for high-performance 1396cc motorcycle engines. Utilizing advanced Multi-Layer Steel (MLS) or robust Single-Layer Steel (SLS) construction, this gasket ensures exceptional durability and longevity under extreme conditions. Cometic's innovative Load Control Embossments (LCE) promote an even torque load across the sealing surface, significantly reducing bore distortion and enhancing piston ring seal for improved power output. Crafted from a stainless steel core, the gasket features outer layers embossed and coated on both sides with high-grade Viton. This specialized coating is crucial for resisting harsh sealing environments, accommodating diverse load conditions, and performing optimally on various surface finishes. With a precise 84.00 mm bore size and a slender 0.46 mm (0.018") thickness, this Cometic high-performance gasket is designed for exact fitment and reliable, leak-free operation, proudly made in the USA.

Features & Highlights

• Advanced Sealing Technology: Incorporates Multi-Layer Steel (MLS) or Single-Layer Steel (SLS) designs for superior resilience and a consistent, leak-proof seal under extreme engine conditions.
• Optimized Performance: Features Load Control Embossments (LCE) to distribute torque evenly, minimizing bore distortion and maximizing piston ring seal for enhanced power and efficiency.
• Premium Material Construction: Built with a durable stainless steel core and outer layers coated on both sides with Viton, offering exceptional resistance to heat, chemicals, and wear.
• Precision Fitment: Engineered to exact specifications with an 84.00 mm bore and a 0.46 mm (0.018") thickness, ensuring perfect compatibility and reliable operation for 1396cc engines.
• USA Made Quality: Manufactured in the USA, guaranteeing high standards of craftsmanship and materials for a product you can trust.

Technical Specifications

• Product Name: Gasket
• Type: Cylinder Head
• Material: Steel
• Bore Size: 84.00 mm
• Thickness: 0.46 mm (0.018")
• Displacement: 1396 cc
• Units: Each
• Vendor Part Number: C8658-018

Important to Know

• Dowel pins are not included.
