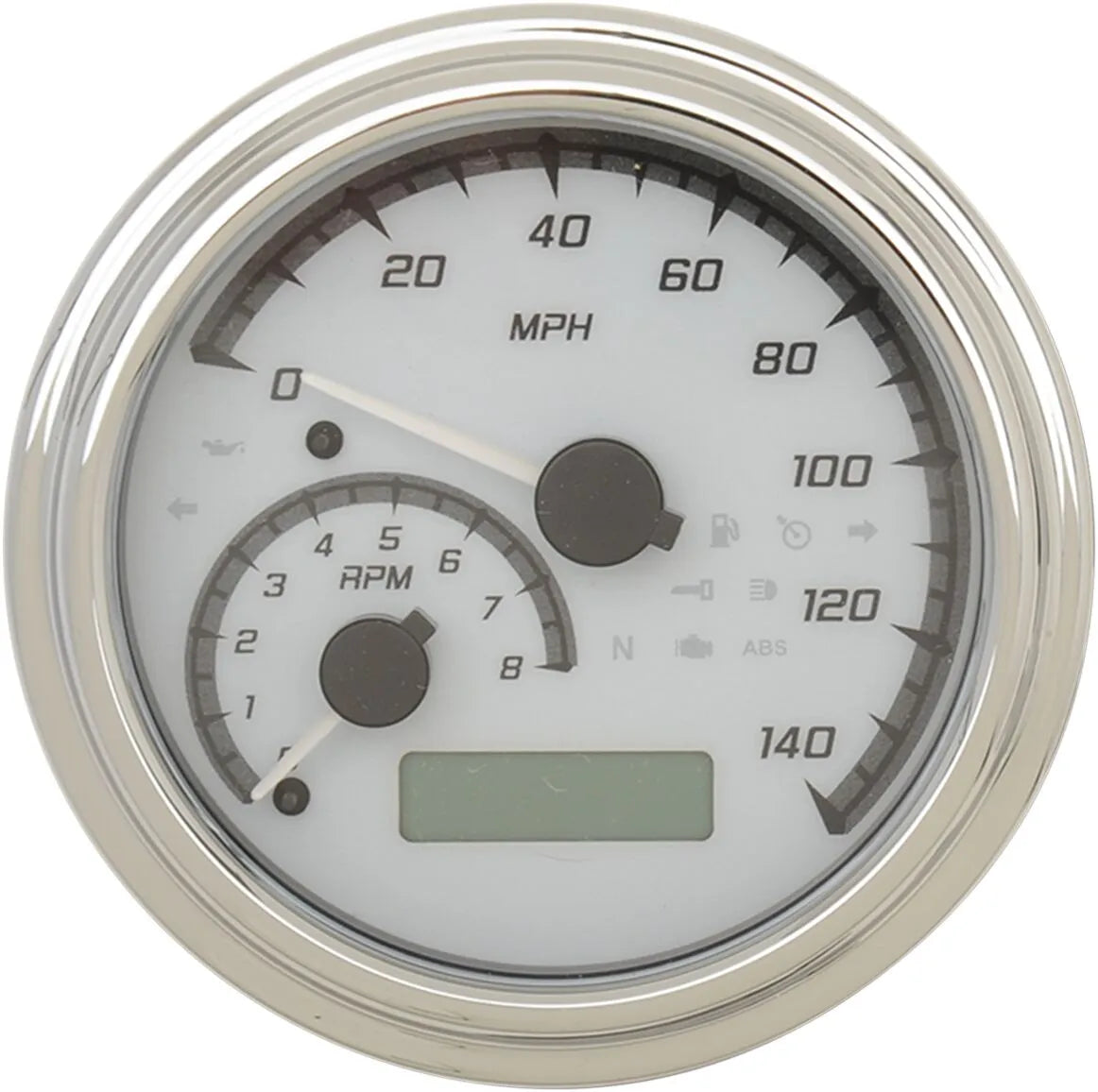

Dakota Digital MVX Analog Speedometer/Tachometer - mph - MVX-2011-WG-C

Upgrade your motorcycle's instrumentation with the Dakota Digital MVX Series Analog Gauge System. This all-in-one gauge combines classic analog styling with modern digital functionality, providing essential information at a glance. Perfect for enthusiasts seeking a blend of tradition and innovation.

Description

The Dakota Digital MVX Series Analog Speedometer offers a comprehensive suite of features, including a 140 mph speedometer and 8,000 rpm tachometer. The system also includes an odometer, dual resettable trip meters, and a full complement of indicator lights for turn signals, high beam, neutral, and low oil pressure. The tachometer has an adjustable shift point and can display a digital numeric readout for precise monitoring. For '11-'22 models, enjoy 31 user-selectable colors for the pointer, backlight, and LCD message center, allowing you to customize the gauge to your bike's aesthetics. Additional functions include resettable miles to service with a warning, an hour meter, a 12-hour clock, and voltage readout with a low-voltage alert. With its seven-speed gear position indicator (compatible with 3- to 7-speed transmissions), security system indicator, and automatic turn signal cancelling compatibility, this gauge system provides advanced monitoring capabilities, including performance calculations such as 0-60 time, top speed, peak RPM recall, and quarter-mile time and speed. The Dakota Digital MVX series provides essential data in a stylish, customizable package.

Features & highlights

• Combines analog styling with digital functionality for a comprehensive display.
• Offers 31 user-selectable colors for a customized look on '11-'22 models.
• Provides performance calculations, including 0-60 time and quarter-mile speed.
• Includes a seven-speed gear position indicator compatible with various transmissions.
• Features resettable miles to service with a warning and hour meter for maintenance tracking.
• Displays voltage readout with a low-voltage alert to monitor electrical health.
• Equipped with a 140 mph speedometer and 8,000 RPM tachometer.

Technical specifications

• Brand: Dakota Digital
• Product Name: Gauge
• Type: Analog Speedometer
• Face Color: White, Gray
• Housing Color: Chrome
• Calibration: 0 kph - 225 kph, 0 rpm - 8,000 rpm
• Outside Diameter: 4-5/8" (11.8 cm)
• Features: Backlit, 31 User-Selectable Colors

Important to know

Installation requires a cut/splice wiring process; this is not a direct plug-in gauge. An oil pressure sending unit is required and sold separately (part #s 2212-0513 or DS-250019). Cylinder head temperature sensor functionality requires the bike to be equipped with a factory sender unit.
