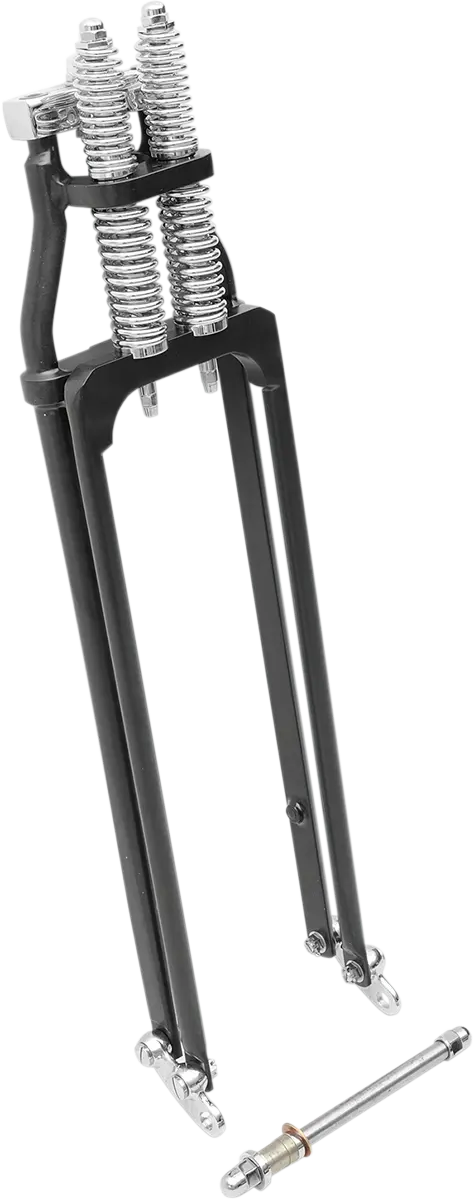

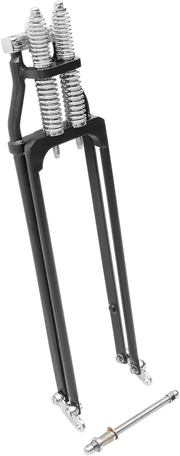

Drag Specialties Custom Springer Springer Forks - MU35218

Upgrade your ride with the Drag Specialties Custom Springer Forks, a cost-effective alternative to traditional shock-dampened designs. These fully assembled springer forks provide classic styling and reliable performance for your custom motorcycle build.

Description

The Drag Specialties Custom Springer Forks deliver a vintage aesthetic with modern functionality. Designed as a fully assembled unit with an in-line top bracket, these forks offer a clean, streamlined look without a built-in rake. The standard 31" length (measured from the top bearing to the axle) is comparable to a standard-length FXST front end, ensuring compatibility with a range of motorcycles. The 1" O.D. steering stem is specifically designed for Timken® type bearings, providing smooth and precise steering. With both rear legs threaded for right or left brakes, these springer forks offer versatile braking options. Enhance your motorcycle's appearance and handling with these high-quality custom springer forks, perfect for achieving that classic bobber or chopper style. Installation might require custom spacers depending on the wheel used.

Features & highlights

• Economical alternative to shock-dampened springer forks.
• Fully assembled for easy installation.
• 31" standard length comparable to a standard FXST front end.
• 1" O.D. steering stem designed for Timken® type bearings for smooth steering.
• Both rear legs are threaded for versatile brake mounting options.
• Includes 3/4" O.D. axle kit with brake mount pivot, thrust washer, and hub spacers.
• Riser mounts are on 4-3/4" centers and threaded 1/2"-20.

Technical specifications

• Brand: Drag Specialties
• Product Name: Springer Forks
• Type: Fork
• Color/Finish: Black
• Length: 31" (measured from top bearing to axle)
• Steering Stem: 1" O.D. (for Timken® type bearings)
• Axle: 3/4" O.D.
• Rocker Spacing: 9-1/4"
• Riser Mount Centers: 4-3/4" (threaded 1/2"-20)

Important to know

• Requires a wheel compatible with a 3/4" O.D. axle. Custom spacers may be required depending on the wheel used.
• Springers do not accept spotlight bars.
• No fender mounts included.
