Koso D2 Lcd Multifunction Meter
Koso D2 Lcd Multifunction Meter
About this product
About this product
Upgrade your motorcycle's instrumentation with the Koso North America D2 LCD Multifunction Meter. This high-quality, plug-and-play meter seamlessly integrates with your bike's CANBUS system, providing a wealth of information in a sleek, modern package. Monitor vital engine stats and customize the display to your preference with its 8-color changeable LCD.
Description

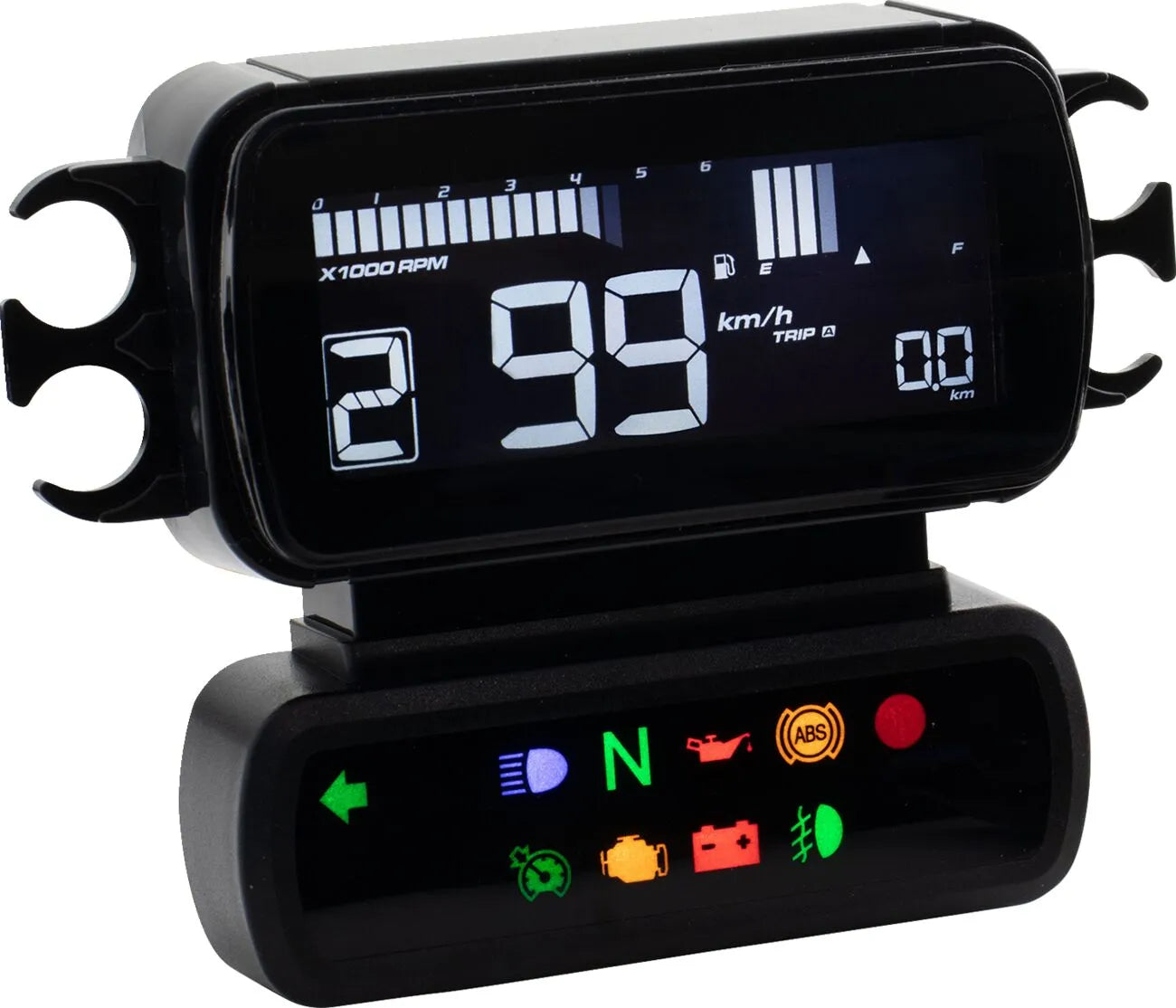

The Koso D2 LCD Multifunction Meter is more than just a speedometer. It combines tachometer and speedometer functions with a programmable shift light and gear indicator, putting all essential performance data at your fingertips. The meter also displays engine temperature, battery voltage, and tire pressure, alongside a comprehensive system of indicator lights to keep you informed about your bike's health. Designed for a clean look, it mounts below a cutout top handlebar clamp (handlebar riser or relocation kit may be needed depending on application). With a display range of 0-124 mph and an effective temperature range of -4°F to 185°F (-20°C to 85°C), this meter is built for performance in diverse conditions. Installation is simplified thanks to its direct plug-and-play compatibility with the stock harness.
Features & highlights
- High-quality, plug-and-play meter for easy installation.
- 8-color changeable LCD display for personalized viewing.
- Tachometer, speedometer, gear indicator, and programmable shift light all in one.
- Displays engine temperature, battery voltage, and tire pressure.
- Directly plugs into the stock harness and works with CANBUS systems.

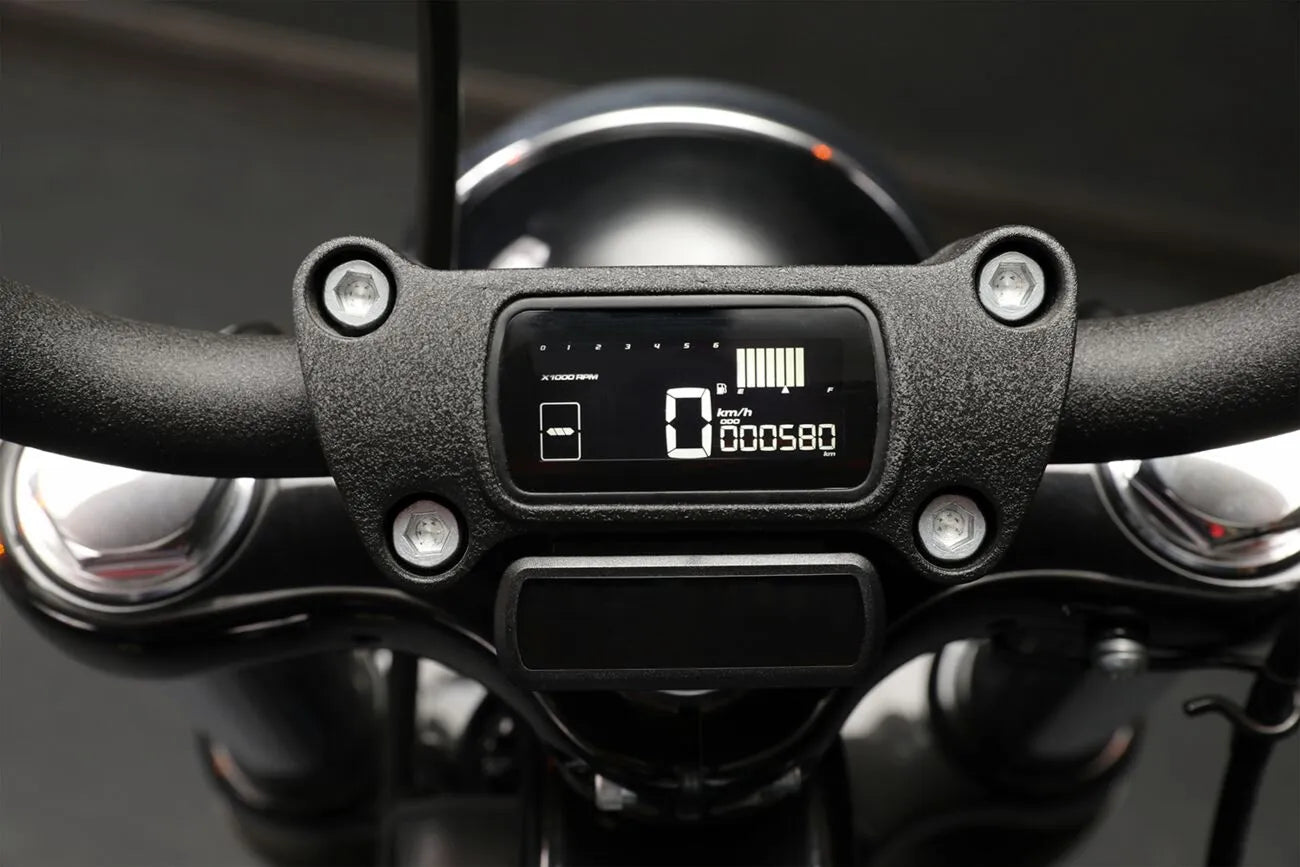

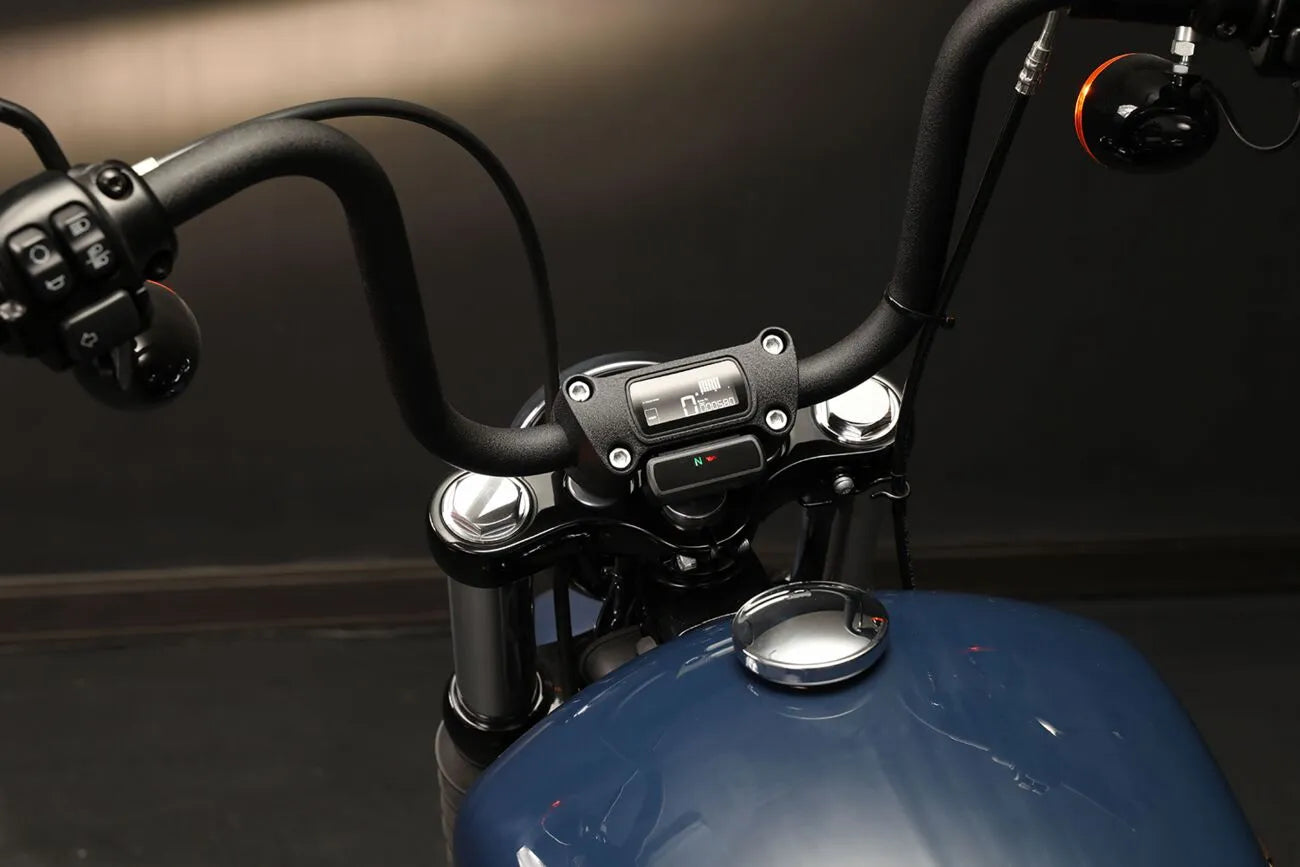

- Sleek design mounts below the handlebar clamp.
Technical specifications
- Brand: Koso North America
- Product Name: Gauge
- Type: Multi-Function Speedometer
- Display Range: 0-124 mph
- Calibration: 0 kph - 199 kph
- Operating Voltage: 12VDC
- Effective Temperature Range: -4°F-185°F (-20°C-85°C)
- Length: 3-7/16" (88 mm)
- Width: 1-1/16" (27 mm)
- Depth: 2-5/8" (66 mm)
- Face Color: Black
- Housing Color: Black
Important to know
This kit includes 1 x LCD Meter, 1 x Meter adapter box, and 1 x Zip tie (4.6 x 300mm). Please note that installation images are for demonstration purposes only; the mounting plate is not included. For XL models, a separate fuel level sensor kit (OEM PART #6120008) may be required for the fuel meter to function correctly.
Shipping & Return
Shipping & Return
Free shipping to GLS parcel shop parcel box for purchases over DKK 1,000.
GLS home delivery costs DKK 59.
We do our best to ship your order as quickly as possible. All orders are generally packed within 24 hours on weekdays.
There is a 14-day return policy. Read more
Specifications
KOSO NORTH AMERICA
BA080020
Gauge
66 mm (2-5/8")
Black
27 mm (1-1/16")
88 mm (3-7/16")
Multi-Function Speedometer
Kit
