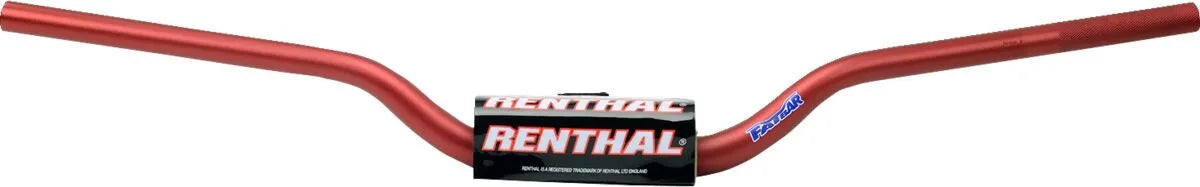

Renthal Fatbar Trials 100 Handlebar - 1-1/8" - Red - 673-01-RD

Upgrade your motorcycle's control and feel with the Renthal Fatbar Handlebar. Constructed from high-strength 7010-T6 aluminum, this handlebar offers exceptional durability and performance for serious riders.

Description

The Renthal Fatbar Handlebar is engineered to provide the optimal balance of strength, flexibility, and rider comfort. The braceless design reduces weight while maintaining superior strength. A 1-1/8" (28.6 mm) clamping area minimizes slippage, ensuring a secure connection to your motorcycle. The laser-etched positioning grid allows for precise adjustments, and the knurled clutch side bar end prevents unwanted grip movement. The shot-peened and anodized finish provides excellent corrosion resistance, extending the life and maintaining the appearance of your handlebar. Available in red anodized finish. Comes complete with an injection-molded foam bar pad for enhanced protection.

Features & highlights

• Constructed from high-strength 7010-T6 aluminum alloy for superior durability.
• Braceless design reduces weight while maintaining strength and allows comfortable flex.
• 1-1/8" (28.6 mm) clamping area reduces slippage for enhanced control.
• Laser-etched positioning grid allows for precise handlebar placement.
• Knurled clutch side bar end prevents grip slippage.
• Shot-peened and anodized finish provides excellent corrosion resistance.
• Includes an injection-molded foam bar pad for added protection.

Technical specifications

• Brand: Renthal
• Material: 7010-T6 Aluminum
• Handlebar Diameter: 1-1/8" (28.6 mm)
• Clamping Diameter: 1-1/8" (28.6 mm)
• Clamping Width: 3-1/8" (80 mm)
• Controls Diameter: 7/8" (22 mm)
• Width: 32-1/4" (81.9 cm)
• Height: 4" (10 cm)
• Rise: 2-11/16" (68 mm)
• Pullback/Sweep: 1-7/8" (47 mm)
• Finish: Anodized
• Color: Red
• Type/Bend: Trials 100, Fatbar
• Features: Smooth, Unknurled

Important to know

• Requires 1-1/8" bar mounts for bikes originally equipped with 7/8" bars.
