S&S Cycle 585 Easy Start Camshaft Kit - 106-5247

Upgrade your engine's performance with the S&S Cycle 585 Easy Start Camshaft Kit. This kit is designed to deliver a significant boost in horsepower and torque, ensuring your engine runs stronger and smoother than ever before. Experience the difference a high-quality camshaft can make.

Description

The S&S Cycle 585 Easy Start Camshaft Kit is engineered for optimal performance in a range of engine sizes. Designed for 88"-106" CID engines with compression ratios from 9.7:1 to 10.5:1, and 106"-124" CID engines with compression ratios from 9.0:1 to 10.0:1. This camshaft kit provides massive horsepower and torque increases, starting at 3000 rpm and holding steady to redline. Specifically, it operates between 3500 rpm - 6000 rpm for 88"-103" engines and 2200 rpm - 5000 rpm for larger engines. The easy start feature reduces crank compression during start-up. Once the engine reaches optimal RPM, the compression release lobe centrifugally retracts, restoring full compression for peak performance without any compromise. This bolt-in kit ensures straightforward installation and enhanced engine dynamics.

Features & highlights

• Experience easy starting with reduced crank compression at low RPMs.
• Enjoy massive horsepower and torque gains across the RPM range.
• Optimized for 88"-124" CID engines with specific compression ratios.
• Bolt-in design allows for straightforward installation.
• Maintains full compression and performance at higher RPMs.
• Made in the USA with high-quality materials for durability.
• Includes all necessary components for installation: camshafts, gasket, bearings, etc.

Technical specifications

• Brand: S&S Cycle
• Product Name: Camshaft Kit
• Grind: 585 Series
• Type: Gear
• Intake Open: 20°
• Intake Close: 45°
• Intake Duration: 245°
• Intake Lift: 0.585"
• Intake Lift at TDC: 0.186"
• Intake Lobe Centerline: 102.5°
• Exhaust Open: 60°
• Exhaust Close: 20°
• Exhaust Duration: 260°
• Exhaust Lift: 0.585"
• Exhaust Lift at TDC: 0.179"
• Exhaust Lobe Centerline: 110°

Important to know

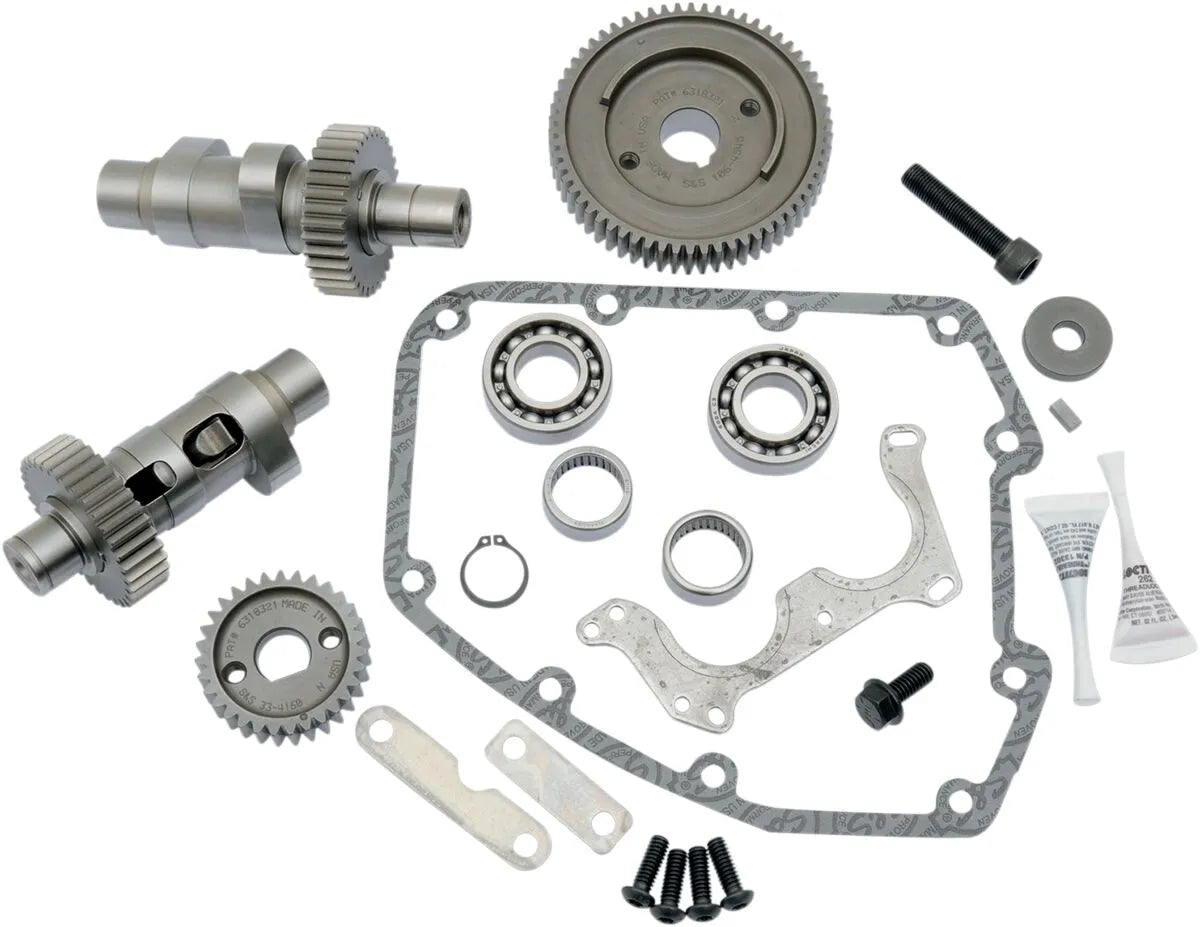

This kit includes camshafts, gear cover gasket, bearings, retaining ring, o-ring, thread lock, and instructions. Installer must check coil bind, valve-to-valve clearance, and valve-to-piston clearance. This kit is not compatible with models equipped with OEM compression releases.
