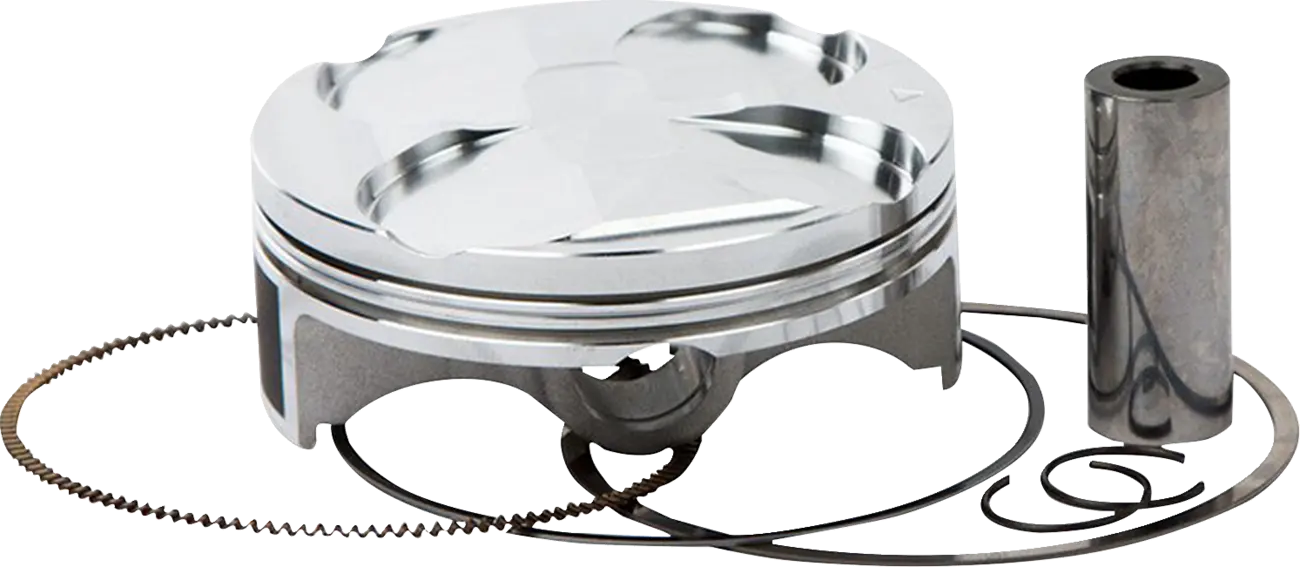

Vertex Forged Piston Kit - 77.96mm Bore - 250cc - Size B - 22983B

The Vertex Forged Replica Piston Kit is engineered to deliver reliable performance and extended life for your 250cc 4-stroke engine. Crafted from high-quality forged materials, this piston kit provides a dependable OE replacement, ensuring optimal engine function.

Description

This Vertex piston undergoes a precise T-5 heat treatment, hardening and tempering cycle to maximize strength and durability. The piston skirt features a Molybdenum Disulphite coating, which significantly reduces friction during initial break-in, promoting faster seating of the rings and prolonging piston life. Designed as a forged OE replacement, this replica piston, along with all included rings, meets or exceeds OEM standards. Whether you're rebuilding your engine or performing routine maintenance, the Vertex Forged Replica Piston Kit offers exceptional value and performance.

Features & highlights

• Forged replica piston provides an OE-level replacement for enhanced durability.
• T-5 heat treatment ensures optimal strength and longevity.
• Molybdenum Disulphite coated skirt reduces friction and speeds up break-in.
• Complete kit includes piston, rings, wrist pin, and circlips for a comprehensive rebuild.
• Designed specifically for 250cc 4-stroke engines, guaranteeing proper fit and function.

Technical specifications

• Brand: Vertex
• Part Number: 22983B
• Engine Type: 4-Stroke
• Displacement: 250cc
• Cylinder Diameter: 78.00 mm
• Piston Diameter: 77.96 mm
• Compression Ratio: 12.9:1
• Piston Material: Forged 2618 Aluminum
• Skirt Coating: Molybdenum Disulphite
• Units: Kit

Important to know

This kit includes the piston, ring set, wrist pin, and circlips. Professional installation is recommended to ensure proper fit and function.
