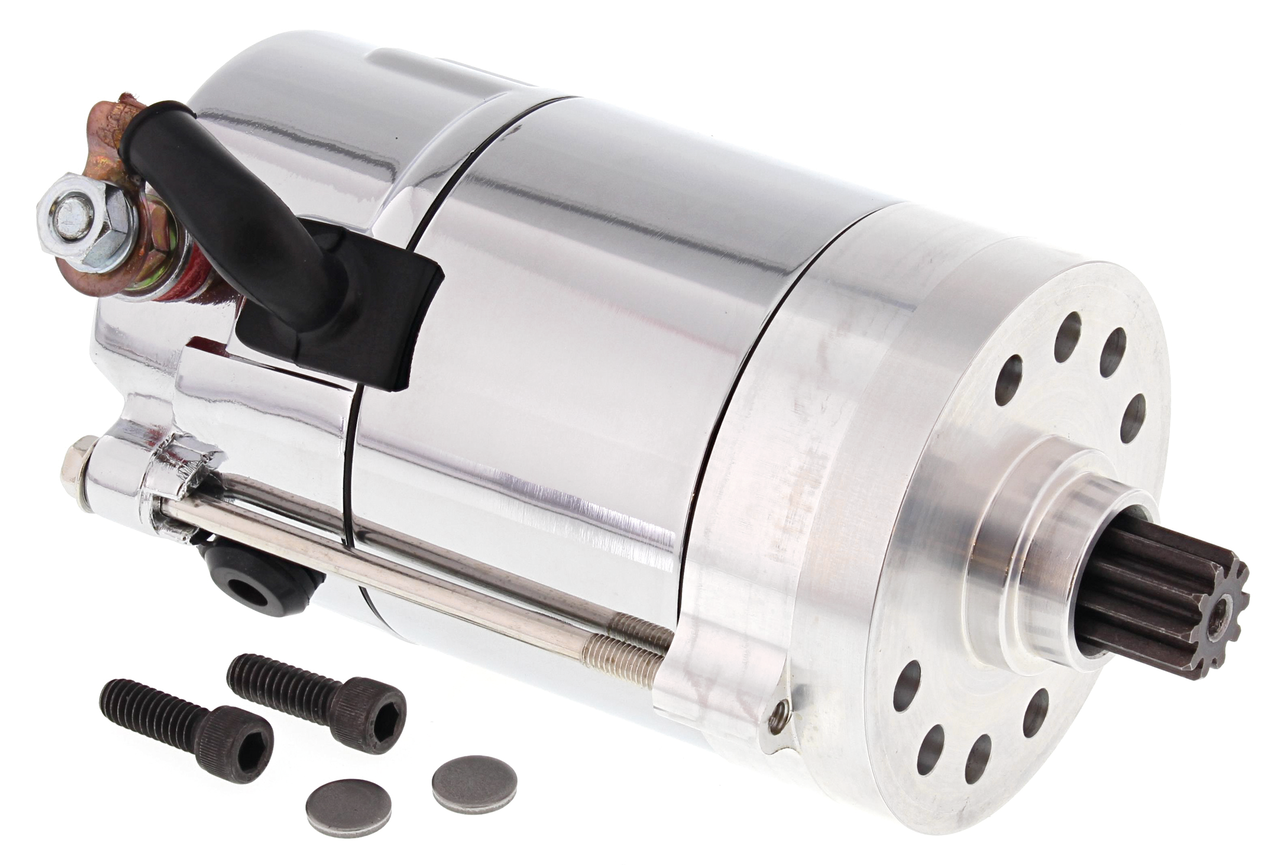

All Balls Starter Motor - 1.4kW - Chrome - Prestolite Type

These All Balls starter motors are more than a reproduction of the original starter motor. These are completely new designs using state-of-the-art technology and are in fact even a little shorter than the original Hitachi. The drive side is CNC machined aluminum with the exact sizes needed to replace a Prestolite or Hitachi starter. This billet aluminum drive side has a snug fit in the primary housing, giving such a strong fit that you no longer need the flimsy brackets that were fitted on the right side of the OEM starter. Made in Canada from new parts and give a full 1.4 kW starting power. Note that you can't use one style starter to replace the other. An original Hitachi starter is 80mm in diameter, has a 145mm housing length and two #10-24 UNF thru-bolts. An original Prestolite starters is 70mm in diameter, has a 173mm housing length and two 1/4-20 UNC thru-bolts.

Replaces Prestolite type (long model), fits electric start Sportster 1967-1973 and 1977-1980, FL late 1966-1982, FLT 1980-1983 and FXR 1982-early 1983, 1.4 kW Starter motor assembly, chrome (OEM 31458-66TA)

Prestolite type starter 1.4Kw Chrome

• Category: Starter Motor & Parts
