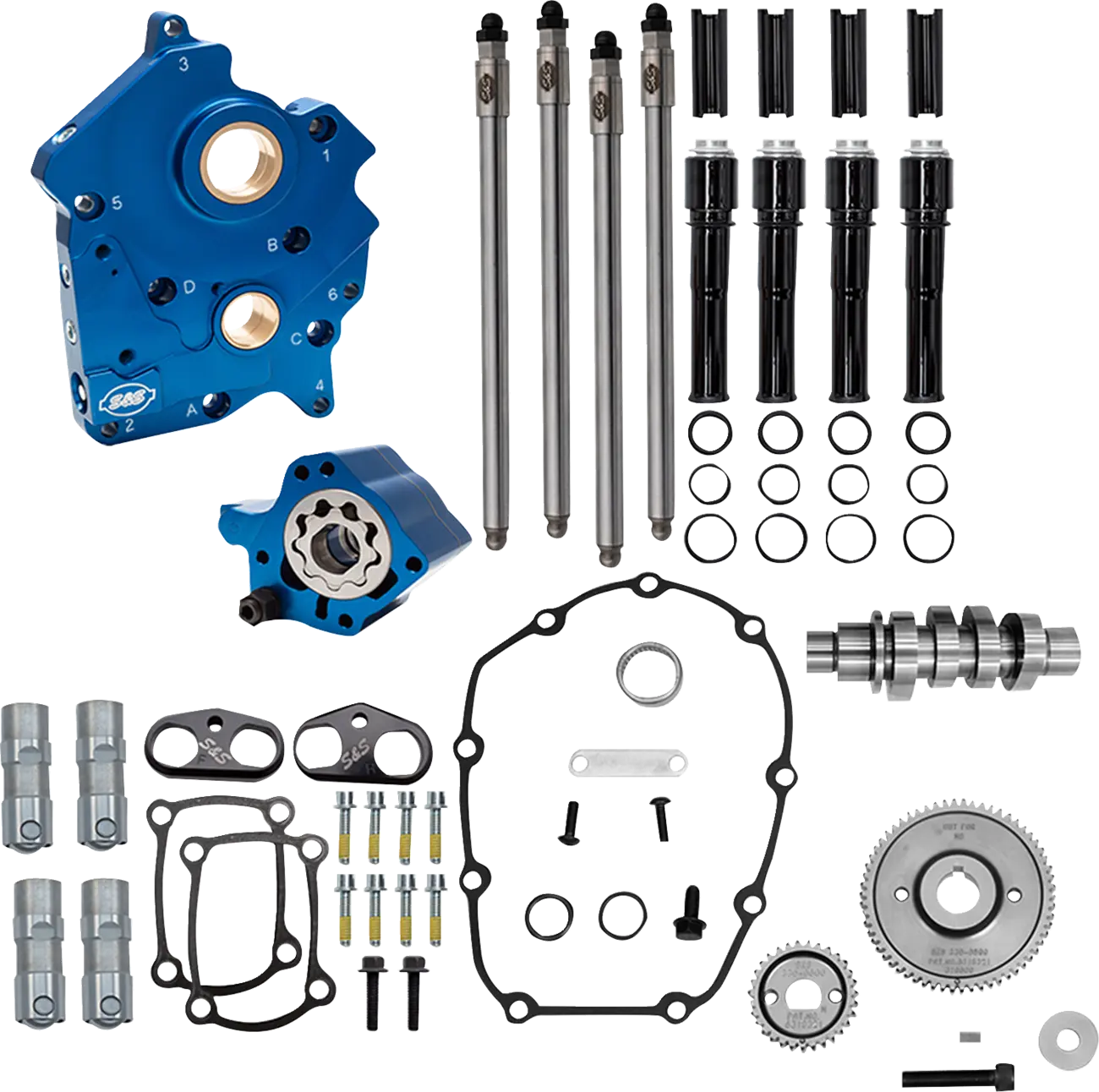

S&S Cycle M8 496 Cam Chest Kit - Black - 310-1383

Elevate your motorcycle's performance with the high-quality S&S Cycle 496 Cam Chest Kit. This comprehensive kit delivers superior oiling and valve train stability, engineered for enthusiasts seeking a robust and reliable upgrade for their oil-cooled engine.

Description

The S&S Cycle 496 Cam Chest Kit is a complete performance solution designed to optimize your engine's oiling and valve train. At its core, the oil pump and cam plate are precision machined from durable billet aluminum, ensuring exceptional strength and longevity. This kit features independent scavenge sections for both the flywheel cavity and cam chest, significantly improving oil return efficiency. Debris screens in both scavenge pickups and a strategically placed magnet in the cam chest work together to prevent contaminants from reaching the oil pump, extending engine life. With increased oil flow capacity on both the feed and scavenge sides, your engine receives optimal lubrication under all conditions. The adjustable pressure relief valve allows for fine-tuning of oil pressure even after installation, providing precise control. This motorcycle cam kit also includes high-performance Quickee pushrods for straightforward installation and dependable operation. The advanced tappets ensure fast pump-up and superior high-RPM performance, drastically reducing valve train noise from startup to shutdown, thanks to their close tolerances and low leak rates. Completing the system are hard-anodized black tappet cuffs, which enhance tappet stability during high-lift and high-RPM situations, making this S&S Cycle cam chest an indispensable upgrade for serious riders.

Features & Highlights

• Precision Billet Aluminum Construction: Oil pump and cam plate are meticulously machined from billet aluminum, offering superior strength, durability, and a clean, high-performance aesthetic.
• Optimized Oiling System: Features independent scavenge sections, debris screens, and a cam chest magnet to ensure maximum oil flow, efficient return, and protection against contaminants.
• User-Adjustable Oil Pressure: An adjustable pressure relief valve allows for precise oil pressure tuning even with the unit installed, giving you ultimate control over your engine's lubrication.
• High-Performance Quickee Pushrods: Designed for ease of installation and reliable operation, these pushrods contribute to a stable and efficient valve train.
• Advanced Tappet Technology: Experience fast pump-up, superior high-RPM performance, and significantly reduced valve train noise thanks to meticulously engineered tappets with low leak rates.
• Enhanced Tappet Stability: Hard anodized black tappet cuffs improve stability in high-lift and high-RPM conditions, ensuring consistent performance and longevity.
• Increased Oil Flow Capacity: Both feed and scavenge sides benefit from increased oil flow, providing optimal lubrication and cooling for demanding applications.

Technical Specifications

• Product Type: Cam Chest Kit
• Cam Grind: 496 Series
• Application: Oil Cooled Engines
• Cam Type: Gear
• Pushrod Tubes: Black
• Intake Lift: 0.485"
• Exhaust Lift: 0.485"
• Intake Duration: 227°
• Exhaust Duration: 243°
• Intake Open: 7°
• Intake Close: 40°
• Exhaust Open: 48°
• Exhaust Close: 15°
• Intake Lift at TDC: 0.072"
• Exhaust Lift at TDC: 0.097"
• Vendor Part Number: 310-1383

Important to Know

• Requires professional installation.
• Optional OEM oil seal not included, but the cam plate includes a groove for its installation.
