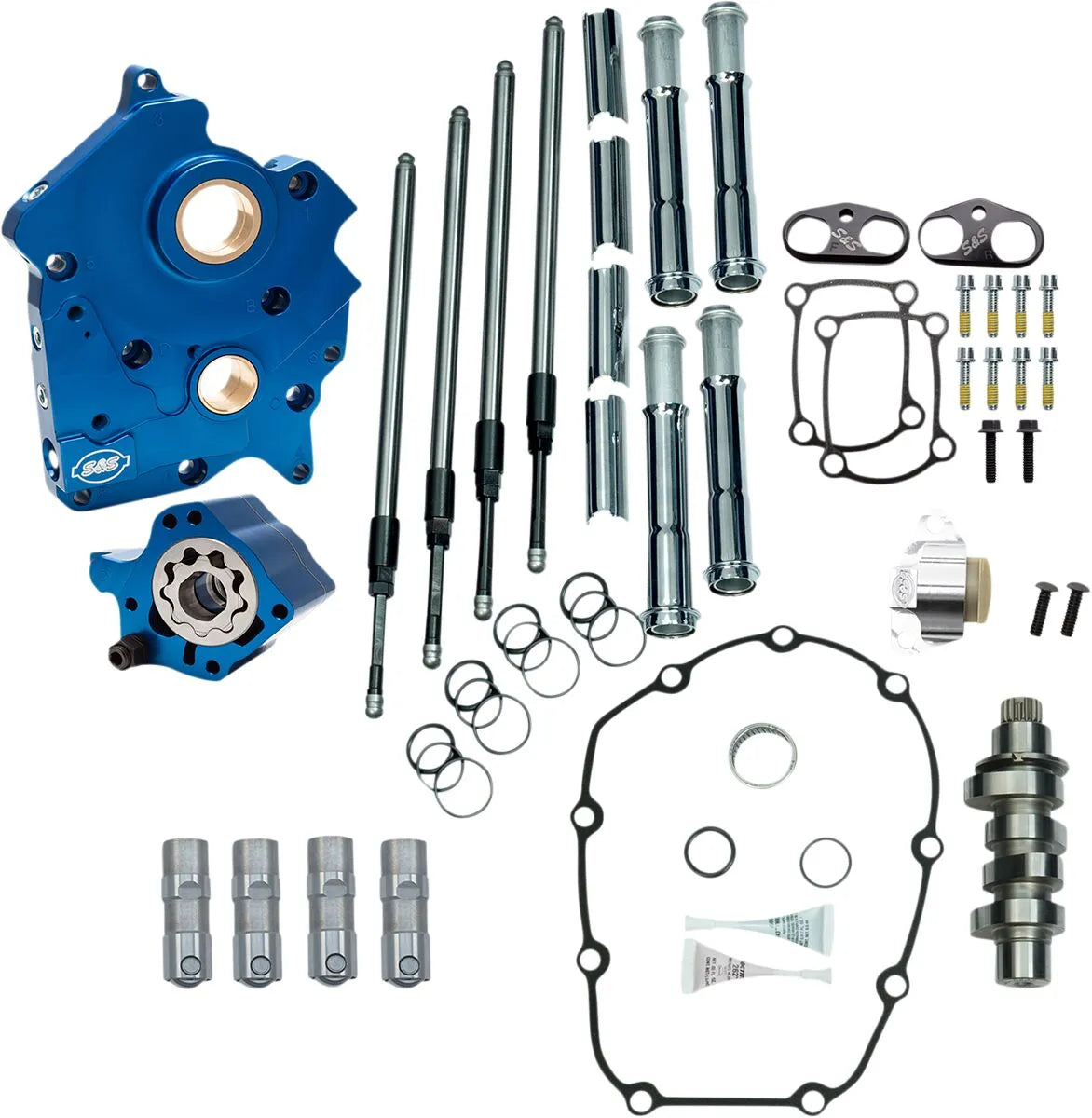

S&S Cycle Cam Chest Kit for M8

Elevate your Harley-Davidson M8 engine's performance and durability with the S&S Cycle Cam Chest Kit. This comprehensive upgrade features precision-machined components designed to optimize oiling and valvetrain stability, ensuring your M8 runs stronger and cooler.

Description

The S&S Cycle M8 Cam Chest Kit is engineered to deliver superior engine performance and reliability for your Harley-Davidson M8. At its core, the oil pump and cam plate are meticulously precision-machined from robust billet aluminum, then finished with a striking blue anodized coating for both durability and aesthetic appeal. This advanced design incorporates independent scavenge sections for both the flywheel cavity and the cam chest, coupled with debris screens in both scavenge pickups, to ensure optimal oil scavenging and engine cleanliness. Riders will experience increased oil flow capacity on both the feed and scavenge sides, crucial for maintaining consistent oil pressure and lubrication, especially in high-performance applications. The adjustable pressure relief valve allows for fine-tuning even after installation, providing precise control over oil pressure. This comprehensive kit also includes S&S premium tappets and stronger-than-stock billet aluminum tappet cuffs with a hard-anodized black coating, designed to eliminate distortion and enhance tappet stability, particularly in high-lift situations. Proudly made in the USA, this chain drive kit features the performance-oriented 465C grind and includes a cam chain tensioner, ensuring a complete and robust upgrade for M8 engines, including those equipped with VVT.

Features & Highlights

• Precision Billet Construction: The oil pump and cam plate are CNC-machined from billet aluminum with a blue anodized finish, offering superior strength, heat dissipation, and a striking appearance compared to stock components.
• Optimized Oil Scavenging: Features independent scavenge sections for the flywheel cavity and cam chest, plus debris screens in both pickups, ensuring maximum oil removal and engine cleanliness.
• Enhanced Oil Flow: Provides increased oil flow capacity on both feed and scavenge sides, crucial for improved lubrication and cooling under demanding conditions.
• Adjustable Pressure Relief: Easily adjust the oil pressure relief valve with the unit installed in the engine, allowing for precise control and customization of your engine's oiling system.
• Premium Valvetrain Stability: Includes S&S premium tappets and stronger billet aluminum tappet cuffs (hard-anodized black) to prevent distortion and improve stability in high-lift cam applications.
• Complete Kit: Supplied as a comprehensive chain drive kit, including a durable cam chain tensioner for a straightforward and reliable upgrade.
• Made in the USA: Ensures high-quality manufacturing and craftsmanship for long-lasting performance and reliability.

Technical Specifications

• Type: Chain Drive
• Grind: 465C
• Application: Water Cooled
• Intake Lift: 0.462"
• Exhaust Lift: 0.462"
• Intake Duration: 197.2°
• Exhaust Duration: 218.9°
• Intake Open: 2.6° Front, 2.8° Rear
• Exhaust Open: 30.1° Front, 33.1° Rear
• Intake Close: 14.6° Front, 14.4° Rear
• Exhaust Close: 8.8° Front, 5.8° Rear
• Intake Lift at TDC: 0.087° Front, 0.088° Rear
• Exhaust Lift at TDC: 0.109° Front, 0.098° Rear
• Intake Lobe Centerline: 96.0° Front, 95.8° Rear
• Exhaust Lobe Centerline: 100.6° Front, 103.6° Rear
• Vendor Part Number: 310-0999C
