S&S Cycle M8 475C Cam Chest Kit - Black - 310-1008B

Upgrade your Milwaukee-Eight engine with the S&S Cycle Cam Chest Kit. This comprehensive kit delivers enhanced performance and reliability for your motorcycle, ensuring smooth operation and increased power. Experience the difference that precision engineering and high-quality components can make in your ride.

Description

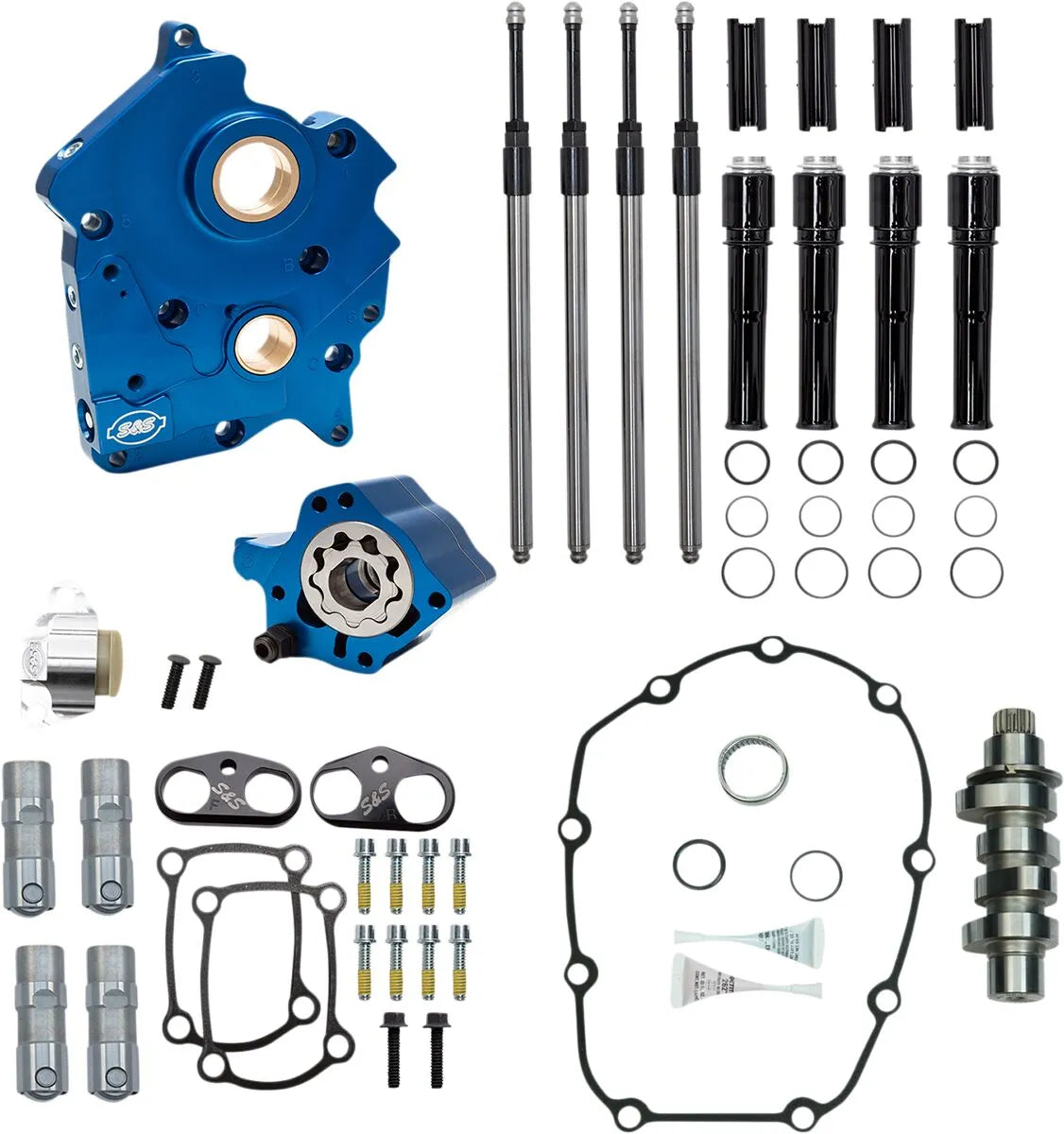

The S&S Cycle Cam Chest Kit for M8 engines is designed to optimize oil flow and cam stability, resulting in improved engine performance and longevity. The kit features a precision-machined billet aluminum oil pump and cam plate with a blue anodized finish, offering both aesthetic appeal and functional benefits. Independent scavenge sections for the flywheel cavity and cam chest, along with debris screens and a magnet, ensure clean oil circulation. The adjustable pressure relief valve allows for fine-tuning while installed. Also included are S&S precision tappets, Quickee pushrods, and billet aluminum tappet cuffs with a hard anodized black coating, providing superior stability, especially in high-lift and high-RPM conditions. All necessary gaskets, bearings, and hardware for installation are included.

Features & highlights

• Precision-machined billet aluminum oil pump and cam plate with blue anodized finish.
• Independent scavenge sections and debris screens ensure optimal oil circulation.
• Adjustable pressure relief valve allows for easy tuning.
• S&S precision tappets and Quickee pushrods enhance performance.
• Billet aluminum tappet cuffs improve stability at high RPMs.
• Includes all necessary gaskets, bearings, and hardware for a straightforward installation.
• Made in the USA.

Technical specifications

• Brand: S&S Cycle
• Product Name: Camchest Kit
• Application: Water Cooled
• Type: Chain
• Exhaust Lift: 0.475"
• Intake Lift: 0.475"
• Exhaust Duration: 263.9° Front, 252.5° Rear
• Intake Duration: 213.5° Front, 213.5° Rear
• Exhaust Open: 55.5° Front, 52.2° Rear
• Exhaust Close: 28.5° Front, 20.2° Rear
• Intake Open: 6.2° Front, 2.2° Rear
• Intake Close: 27.2° Front, 31.2° Rear
• Exhaust Lobe Centerline: 103.5° Front, 106.0° Rear
• Intake Lobe Centerline: 100.5° Front, 104.5° Rear
• Exhaust Lift at TDC: 0.208" Front, 0.170" Rear
• Intake Lift at TDC: 0.107" Front, 0.093" Rear

Important to know

Ensure proper installation by a qualified technician. Follow all manufacturer's instructions and guidelines.
