Wiseco Forged Piston Kit - 54mm Bore - 124cc - Standard - W868M05400

Maximize the performance and lifespan of your 2-stroke engine with the Wiseco GP Series Piston Kit. Engineered for endurance and high RPM applications, this kit delivers enhanced compression and superior wear resistance. Forged and machined in the USA, Wiseco ensures top-tier quality and reliability for demanding riders and racers.

Description

The Wiseco GP Series Piston Kit is designed for 124cc 2-stroke engines with a 54.00 mm bore and 54.00 mm stroke length. Each piston features an electra-coated dome, ring groove, and pin bore, offering maximum protection against micro-welding, galling, and detonation. The GP Series design minimizes external machining, improving bore sealing and increasing compression. The ArmorGlide® skirt coating significantly reduces friction and noise, translating to increased horsepower. This kit includes everything needed for a complete piston replacement, ensuring optimal engine performance and longevity.

Features & highlights

• Electra-coated dome, ring groove, and pin bore for maximum wear resistance.
• ArmorGlide® skirt coating reduces friction and noise, boosting horsepower.
• GP Series design enhances bore sealing for increased compression.
• Engineered for high RPM and endurance applications.

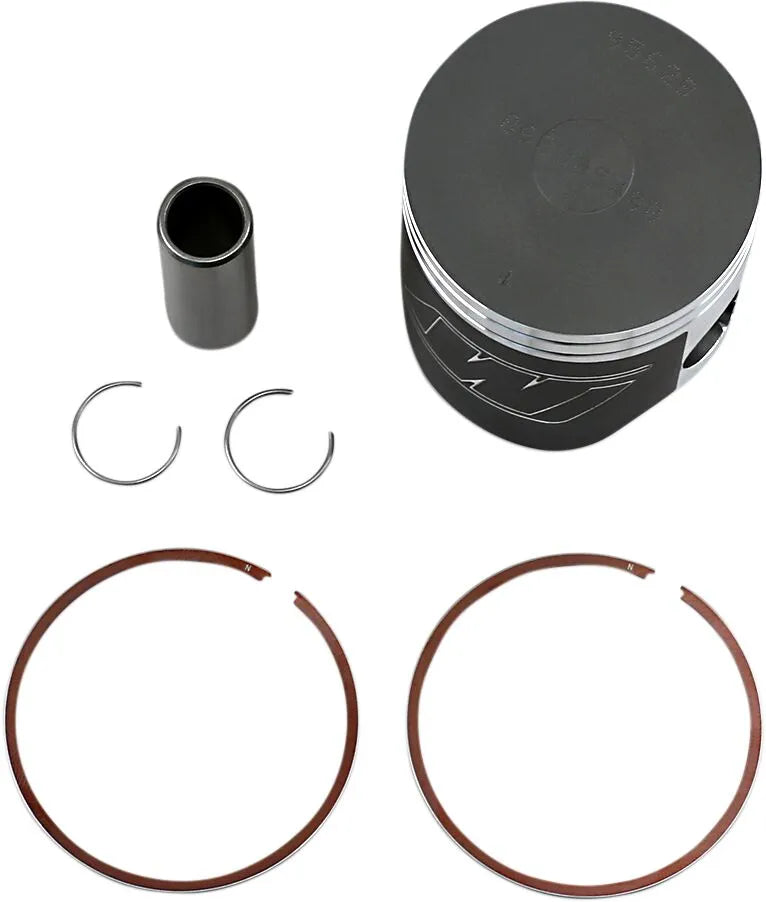

• Kit includes piston, ring(s), wrist pin, and circlips.
• Forged and machined in the USA.

Technical specifications

• Brand: Wiseco
• Piston Material: 4032 Aluminum Alloy
• Engine Type: 2-Stroke
• Displacement: 124 cc
• Bore Size: 54.00 mm
• Piston Diameter: 53.95 mm
• Bore - Oversize: Standard
• Stroke Length: 54.00 mm
• Skirt Coating: ArmorGlide®

Important to know

This kit is a complete piston replacement solution, including the piston, ring(s), wrist pin, and circlips. Please ensure compatibility with your specific engine model before installation.
