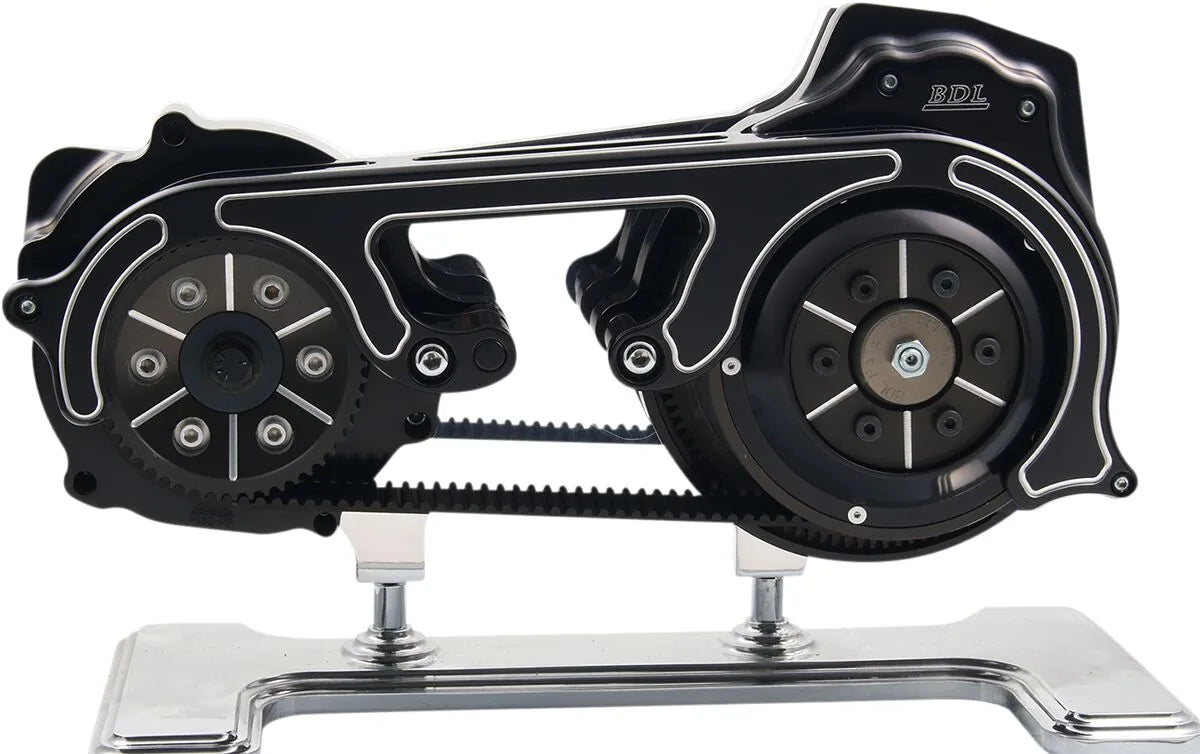

Belt Drives Ltd Open Belt Drive Kit with 2-Piece Motor Plate - M18S-B

Experience superior power transfer and a bold aesthetic with the Belt Drives Ltd. 2" open belt drive. Engineered for big-inch, high-horsepower motorcycle motors, this primary belt drive system delivers enhanced performance and a distinctive look.

Description

The Belt Drives Ltd. 2" open belt drive is meticulously designed to handle the demands of powerful motorcycle engines. Its robust construction features a 2" primary belt and a two-piece motor plate, ensuring exceptional durability and precise alignment. The diaphragm clutch system, configured with a 6-bolt design, provides a more firm and positive feel, significantly improving lock-up engagement—a crucial benefit for high-performance applications. This advanced clutch mechanism, combined with enhanced springs and a spring collar, is specifically tuned to maximize power delivery from your big-inch motor. Beyond its formidable performance, this open belt drive kit elevates your motorcycle's aesthetics with a stylish front pulley cover that is counterbored for a super-clean appearance, and includes a side and top guard for an aggressive, open dome look. The front pulley face and spring collar feature a matching pattern to the rear pulley, creating a cohesive and custom finish that truly stands out. Proudly made in the USA, this high-quality motorcycle belt drive system promises reliability and a striking visual upgrade.

Features & Highlights

• Optimized Power Transfer: Enhanced springs and a spring collar provide more positive lock-up engagement, ideal for big-inch and high-horsepower motors.
• Robust Clutch System: A 6-bolt diaphragm clutch configuration offers a firmer feel and improved appearance, delivering reliable performance.
• Aggressive Open Dome Look: Kit includes a side and top guard, creating a distinctive and aggressive open dome aesthetic.
• Clean & Cohesive Design: Front pulley cover is counterbored for a super-clean look, complemented by matching patterns on the front pulley face, spring collar, and rear pulley.
• Durable & Precise Engineering: Features a two-piece motor plate design and a 2" primary belt (50.8 mm) for exceptional strength and alignment.
• Optimal Gearing: Utilizes a 52/69 pulley combination, resulting in a 1.32:1 final drive ratio for balanced performance.
• Ball-Bearing Pressure Plate: Ensures smooth operation and consistent clutch performance.

Technical Specifications

• Product Name: Belt Drive
• Type: Open
• Width: 2" (50.8 mm)
• Color/Finish: Black
• Pulley Combination: 52/69
• Final Drive Ratio: 1.32:1
• Clutch Configuration: 6-bolt Diaphragm
• Motor Plate Design: Two-piece
• Units: Each
• Vendor Part Number: M18S-B

Important to Know

• Belt profiles are unique to each kit, requiring matched pulleys for each belt; pulleys may not be interchanged.
