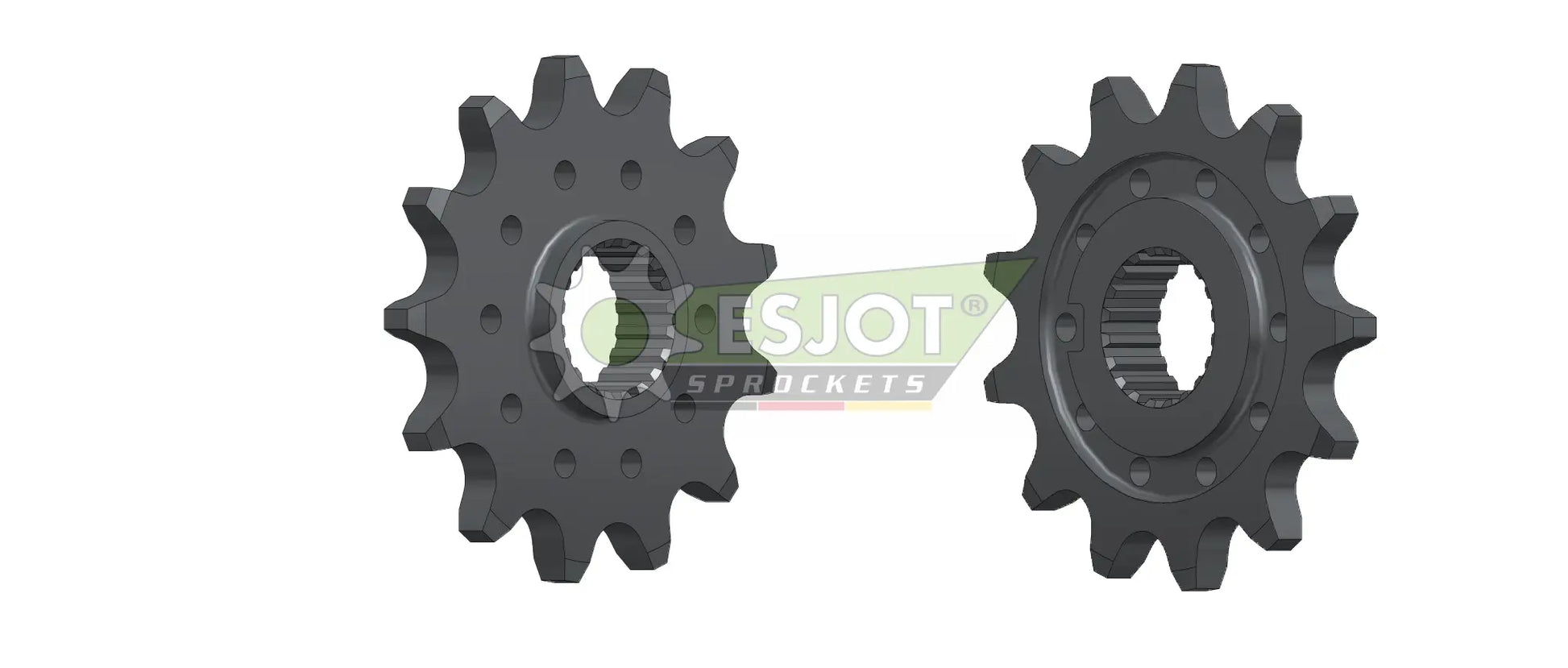

Esjot Steel Sport Front Sprocket - 13T - 520 - Natural - 50-32174-13S
Info prodotto
- Codice articolo
- 12122402
- Codice produttore
- 50-32174-13S
- Posizione
- Numero di denti
- 13
- Passo catena
- 520
The Esjot Sport Sprocket Front 520 is engineered for superior performance and durability, making it the ideal choice for demanding riders. Crafted with precision and using high-quality materials, this front sprocket ensures optimal power transfer and longevity.
Description
Esjot front sprockets are designed to meet the stringent requirements of OEMs, establishing them as a top-tier option worldwide. Constructed from special steel and featuring high-quality case hardening, along with meticulously crafted gearing, this sprocket delivers exceptional strength and durability, perfectly suited for challenging conditions across various riding environments. Weight optimization is achieved through lightening holes and twist-in design, specifically fine-tuned for racing applications. This ensures no compromise on running performance, despite significant weight reduction. Manufactured on CNC automatic lathes and utilizing state-of-the-art broaching machines, the sprocket guarantees a precise fit on the drive shaft, maintaining concentricity and axial run-out tolerances of less than 0.1 mm. Proudly 100% Made in Germany, the Esjot Sport Sprocket 520 elevates your motorcycle's performance.
Features & highlights
- Engineered for high OEM requirements, ensuring top-tier performance.
- Constructed from special steel with high-quality case hardening for exceptional strength.
- Optimized for racing applications, providing maximum performance.
- Weight optimized through lightening holes, maintaining running performance with weight reduction.
- CNC-machined and broached for a precise fit and minimal run-out (less than 0.1 mm).
- Designed for wear-intensive conditions, extending service life.
- 100% Made in Germany, guaranteeing top-quality craftsmanship.

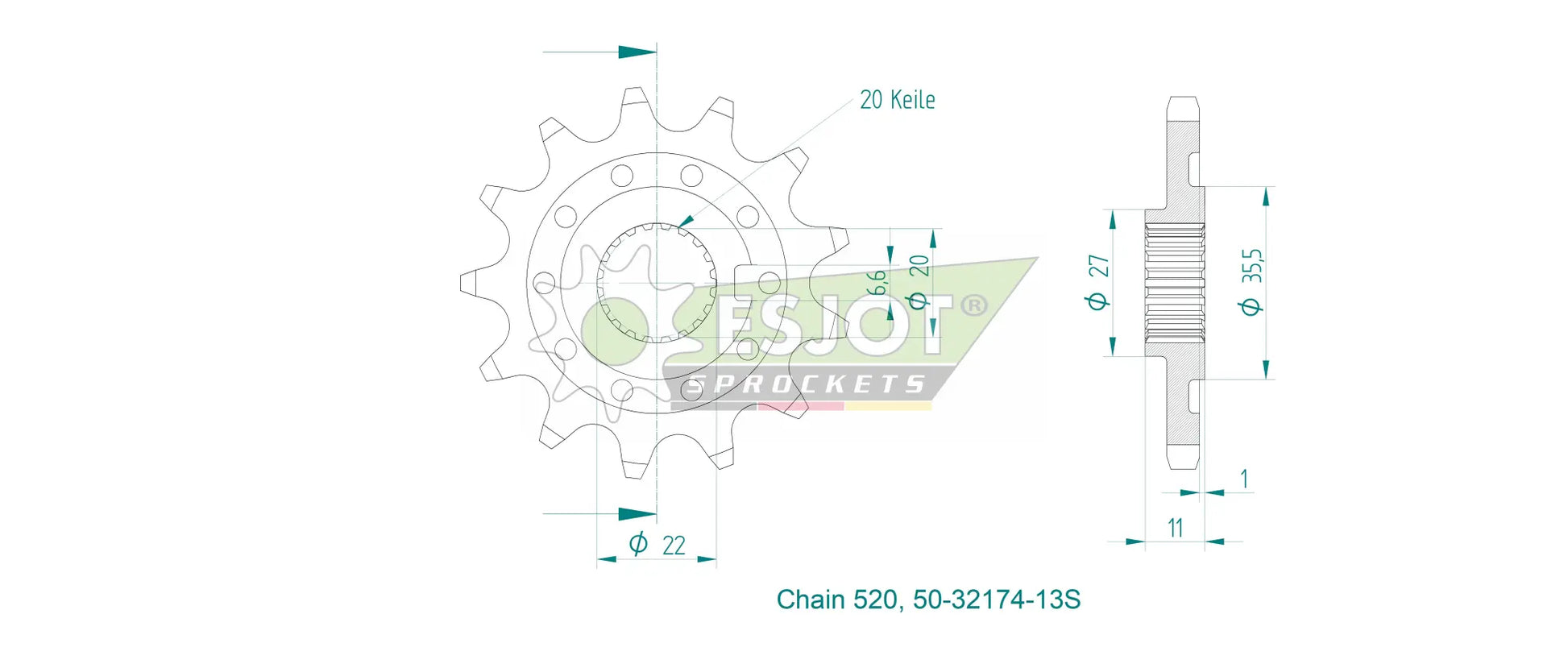

Technical specifications
- Brand: Esjot
- Product Name: Sprocket
- Mounting Position: Front
- Type: Countershaft
- Chain Size: 520
- Tooth Count: 13
- Material: Steel 16MnCr5
- Color/Finish: Natural
Important to know
None.
- Brand
- ESJOT
- Vendor part number
- 50-32174-13S
- Color finish
- Natural
- Product name
- Sprocket
- Mounting position
- Front
- Material
- Steel 16MnCr5
- Chain size
- 520
- Type
- Countershaft
- Units
- Each
