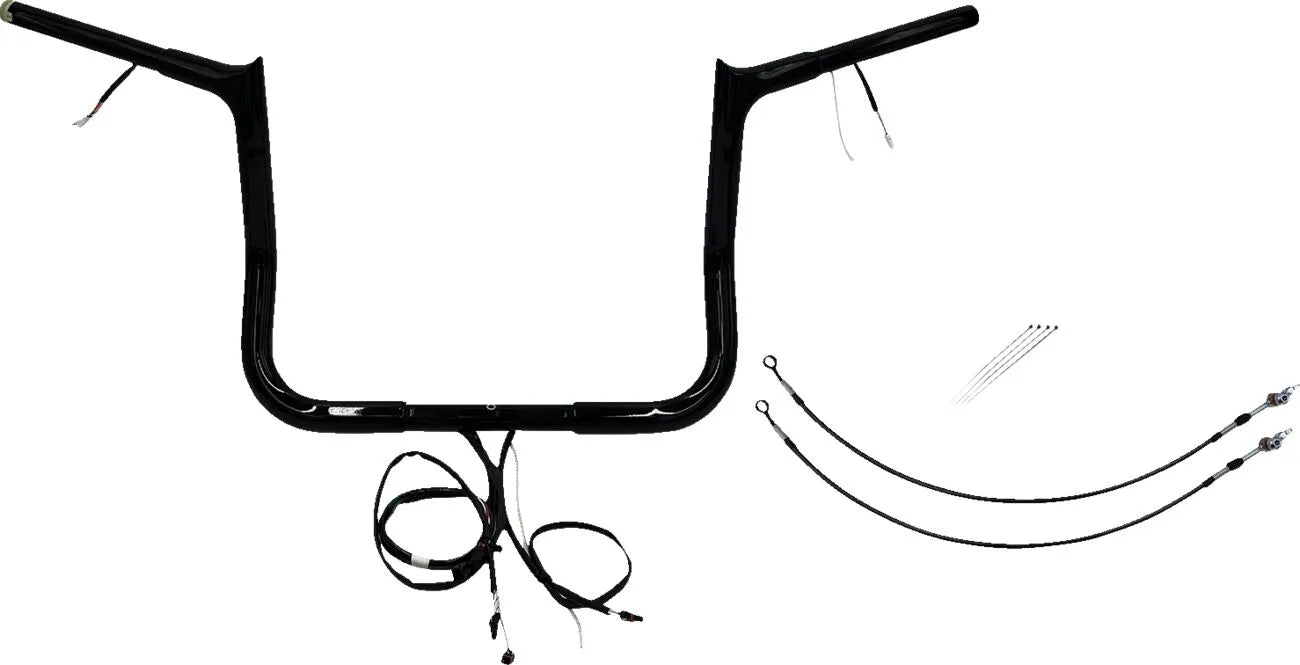

Fat Baggers Inc Pointed Top Handlebar Kit - 1-1/4" - Black - 902212-B

Upgrade your ride with the Fat Baggers Inc. 1-1/4" Pointed Top Handlebar Kit. This pre-wired handlebar setup simplifies installation and offers enhanced comfort and style. Experience the difference of quality craftsmanship and innovative design for your motorcycle.

Description

The Fat Baggers Inc. Ez Install Wired Handlebar Kit eliminates the hassle of internal wiring. These handlebars come pre-wired for your handlebar controls, including a pre-installed throttle-by-wire sensor, allowing for a simple plug-and-play installation. The non-welded top corner, machined from billet steel, features a smooth internal wire cavity to protect your wiring. CNC mandrel bent from heavy-duty 1-1/4" diameter steel tubing with a .120" wall, these ape hanger handlebars offer superior strength and a sleek aesthetic. The bolt-together, two-piece design saves shelf space and simplifies handling. Proudly made in the U.S.A. with a black finish and designed to accept OEM heated grips, this kit enhances both the look and functionality of your motorcycle. The handlebar has a 25.4 mm (1") clamping diameter, a 32 mm (1-1/4") handlebar diameter and dimensions of 91,5 cm (36") width, 30,5 cm (12") rise and 23 cm (9") pullback.

Features & highlights

• Pre-wired for handlebar controls, including throttle-by-wire sensor, for easy installation.
• Non-welded billet steel top corner with smooth internal wire cavity protects wiring.
• CNC mandrel bent from 1-1/4" diameter steel tubing for strength and style.
• Bolt-together, 2-piece design for convenient handling and storage.
• Accepts OEM heated grips for added comfort.
• Made in the U.S.A. for guaranteed quality.
• Black finish for a sleek, custom look.

Technical specifications

• Brand: Fat Baggers Inc.
• Product Name: Handlebar
• Type/Bend: Ape Hanger
• Color/Finish: Black
• Base Color: Black
• Material: Steel
• Handlebar Diameter: 32 mm (1-1/4")
• Clamping Diameter: 25,4 mm (1")
• Width: 91,5 cm (36")
• Rise: 30,5 cm (12")
• End Rise: 30,5 cm (12")
• Pullback/Sweep: 23 cm (9")
• Center Width: 39,5 cm (15-1/2")
• Controls Diameter: 25,4 mm (1")
• Features: Pre-Wired, Accepts Heated Grips, Internal Wiring
• Units: Kit

Important to know

• Does not replace existing lines and cables but extends them.
• Heated Grip Extension sold separately.
• All '21-'23 kits include black brake lines and black clutch extensions.
