Feuling Parts HP+ Oil System Pack - Red - 7096

Upgrade your Milwaukee-Eight engine with the Feuling Parts HP+® Oil System Packs, designed for optimal oil flow and performance. This comprehensive kit enhances oil delivery and scavenge, leading to improved engine cooling, reduced wear, and increased power. Experience the difference that a high-quality oil system can make in your motorcycle's performance and longevity.

Description

The Feuling Parts HP+® Oil System Packs for M8 engines feature a high-flow billet camplate crafted from 7075 aluminum, which is 50% stronger and harder than stock or Feuling OE+ camplates. This innovative design increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages, matching the oil portholes throughout the camplate to those in the engine case. This optimization significantly boosts oil flow to vital engine components such as the lifters, piston cooling jets, crankshaft, and rod bearings. Each Feuling oil pump is bench-tested to ensure the relief valve seats and seals to a minimum of 30 psi, with full pop-off at 55-60 psi. The increased oil volume from the larger gears and properly sized passages, combined with the pressure relief valve's consistent sealing, ensures proper oiling system function. By eliminating common pressure and scavenge issues found in factory oiling systems, Feuling ensures quieter and smoother engine operation, superior oil pressure, enhanced scavenge volume, and increased engine oil flow. Test results show a 2 horsepower and 2 ft/lbs of torque gain to the rear wheel on M8 engines. Upgrade to Feuling Parts for unparalleled engine oiling performance.

Features & highlights

• Increases oil flow and volume for improved engine cooling and performance.
• High-flow billet camplate made from 7075 aluminum, 50% stronger than stock.
• Eliminates common pressure and scavenge issues associated with factory oiling systems.
• Reduces wet sumping, blowby, and oily air cleaners.
• Lowers engine and oil temperatures by 15°-30°F.
• Increases oil pressure, scavenge volume, and engine oil flow for optimal lubrication.
• Delivers dyno-proven gains of up to 2 HP and 2 ft/lbs of torque.

Technical specifications

• Brand: Feuling Parts
• Part Number: 09320198
• Material: Billet 6061 and 7075 Aluminum
• Type: Oil System
• Finish: Red
• Application: Milwaukee Eight (M8) Engines

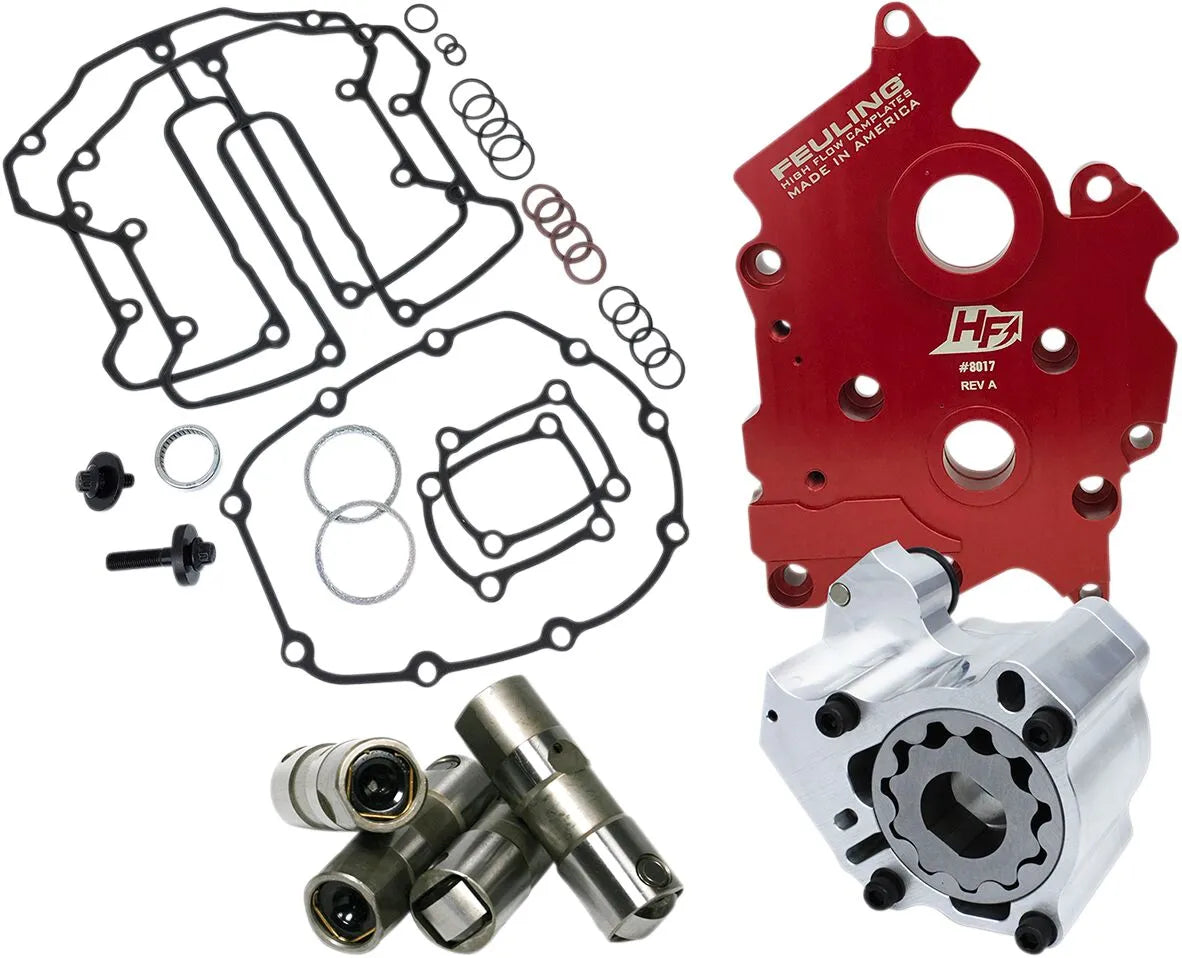

• Includes: High volume oil pump, High Flow camplate, HP+® Hydraulic roller lifters, cam installation kit, cam bearing, cam/crank bolts and washers, engine and fastener assembly lube
• Scavenge Volume: 42% more scavenge volume
• Oil Volume Increase: 68% more oil volume to the crankshaft and connecting rod bearing

Important to know

M-Eight engines must check clearance on front exhaust lifter to camshaft flange fit. Optional Feuling X ARP bolt kit available (sold separately). ARP oil pump bolts do not use washers.
