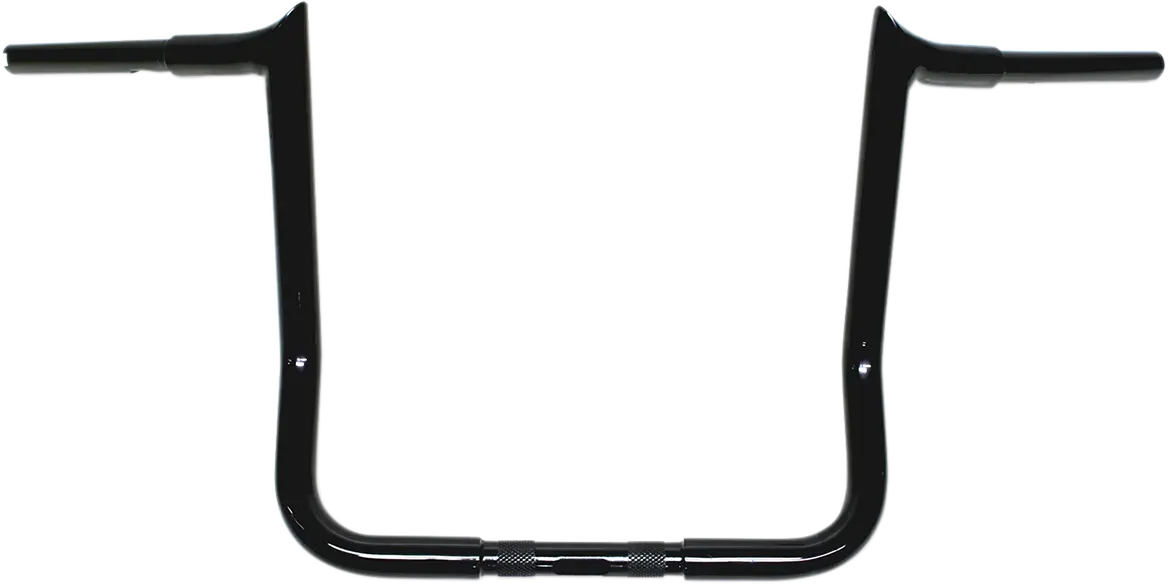

Magnum Shielding Bagger Ape Hanger - 1-1/4" - 10" Rise - 4HB-0410

Upgrade your ride with the Magnum Shielding 1-1/4" Viking Handlebar. Designed for ease of installation and superior performance, this handlebar offers a blend of style and functionality for motorcycle enthusiasts and professionals alike.

Description

The patented Viking Handlebar features an innovative internal design that simplifies the installation of complete wiring harnesses without compromising the handlebar's sleek appearance. The unique flaring process creates ample space within the peak, allowing wiring harnesses, including factory vinyl coverings, terminal connections, and shrink sleeves, to pass through effortlessly and without chafing. Magnum Shielding preloads the bars with E-Z pull-thru plastic woven sleeving, making wiring installations quick and straightforward: simply insert the wiring harness into the sleeving and pull it through. Manufactured to the highest quality standards, these handlebars feature smooth, round CNC mandrel bends, machined control mounts, burr-free internal wiring holes, electronic throttle control slots, and a high-luster finish for an exceptional look.

Features & highlights

• Simplified Wiring: Patented internal design allows easy installation of wiring harnesses.
• Enhanced Clearance: Flared internal radius provides additional space within the handlebar peak.
• Easy Installation: Preloaded with E-Z pull-thru plastic woven sleeving for effortless wiring.
• Premium Construction: Manufactured with smooth CNC mandrel bends and machined control mounts.
• Durable Finish: High-luster finish ensures a long-lasting and stylish appearance.
• Universal Compatibility: Works with standard controls, including hydraulic clutches.

Technical specifications

• Brand: Magnum Shielding
• Product Name: Handlebar
• Handlebar Diameter: 1-1/4" (32 mm)
• Clamping Diameter: 1" (25.4 mm)
• Center Width: 12" (30.5 cm)
• Clamping Width: 3-1/2" (88.9 mm)
• Width: 35-1/4" (89.5 cm)
• End Rise: 10" (25.5 cm)
• Pullback/Sweep: 10-1/2" (26.5 cm)
• Controls Diameter: 1" (25.4 mm)
• Type/Bend: Viking, Bagger, Ape Hanger
• Material: Steel
• Finish: Gloss
• Color: Black
• Features: Knurled Center, Pre-Drilled, For Hydraulic Clutch, Notched for Throttle-By-Wire

Important to know

Not for use with stock risers or handlebar clamp/gauge mount clamp on 883C and 1200C models. Viking handlebars have a 1" diameter center section and fit 1" risers. Models originally equipped with handlebars larger than 1" will require changing the risers to a 1" ID version.
