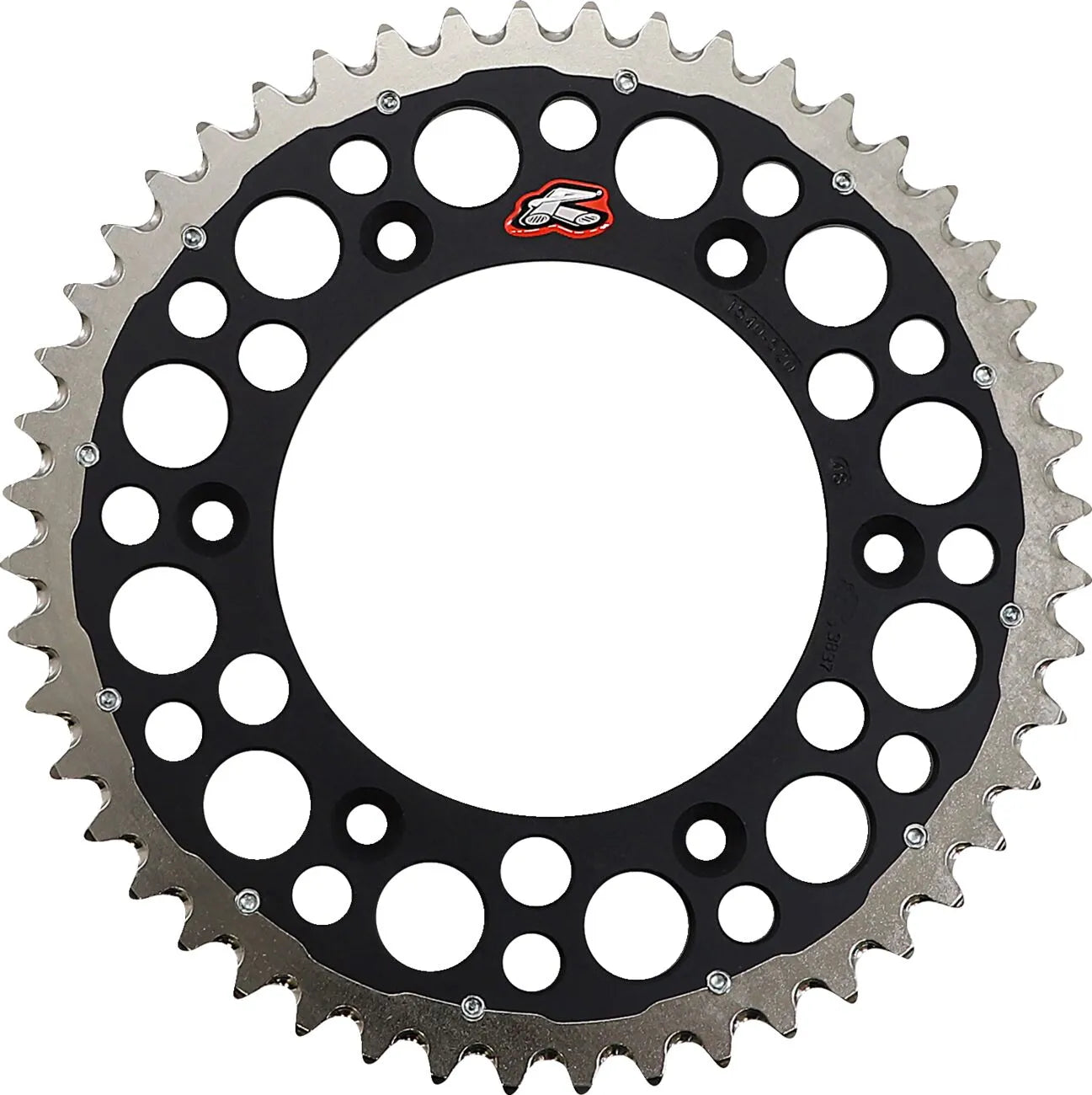

Renthal Twinring Rear Sprocket - 48T - 520 - Black - 1540-520-48GPBK

The Renthal Twinring™ rear sprocket provides the ultimate combination of durability and lightweight design. Engineered for performance and longevity, this sprocket is ideal for demanding riders and racers alike.

Description

Renthal's Twinring™ rear sprocket features a unique two-piece design. The inner ring is machined from Renthal's Ultralight™ 7075 T-6 aluminum, ensuring minimal weight and maximum strength. The outer ring is constructed from durable, electro-less nickel-coated steel, providing exceptional resistance to wear and tear. The outer ring is thermally fitted to the inner, creating a robust and permanent bond that withstands the rigors of off-road riding. Self-cleaning mud grooves are incorporated between each tooth to prevent dirt accumulation, reduce wear, and minimize weight. Flat socket head screws are utilized to enhance the sprocket's resistance to side impacts and prevent interference with the chain guide. Experience extended sprocket life and superior performance with the Renthal Twinring™.

Features & highlights

• Inner ring crafted from high-strength Ultralight™ 7075 T-6 aluminum for reduced weight.
• Electro-less nickel-coated steel outer ring for exceptional durability and wear resistance.
• Thermally fitted construction ensures a permanent and robust bond between the inner and outer rings.
• Self-cleaning mud grooves prevent dirt build-up, reducing wear and maintaining optimal performance.
• Flat socket head screws enhance strength and prevent chain guide interference.
• Significantly lighter than all-steel sprockets, offering improved power transfer.
• Offers three times the lifespan of a standard all-aluminum sprocket.

Technical specifications

• Brand: Renthal
• Product Name: Sprocket
• Mounting Position: Rear
• Chain Size: 520
• Tooth Count: 48
• Material: 7075-T6 Aluminum & Nickel-Coated Steel
• Type: Drive
• Color/Finish: Black

Important to know

Note: Always consult your motorcycle's service manual for proper sprocket installation and torque specifications.
