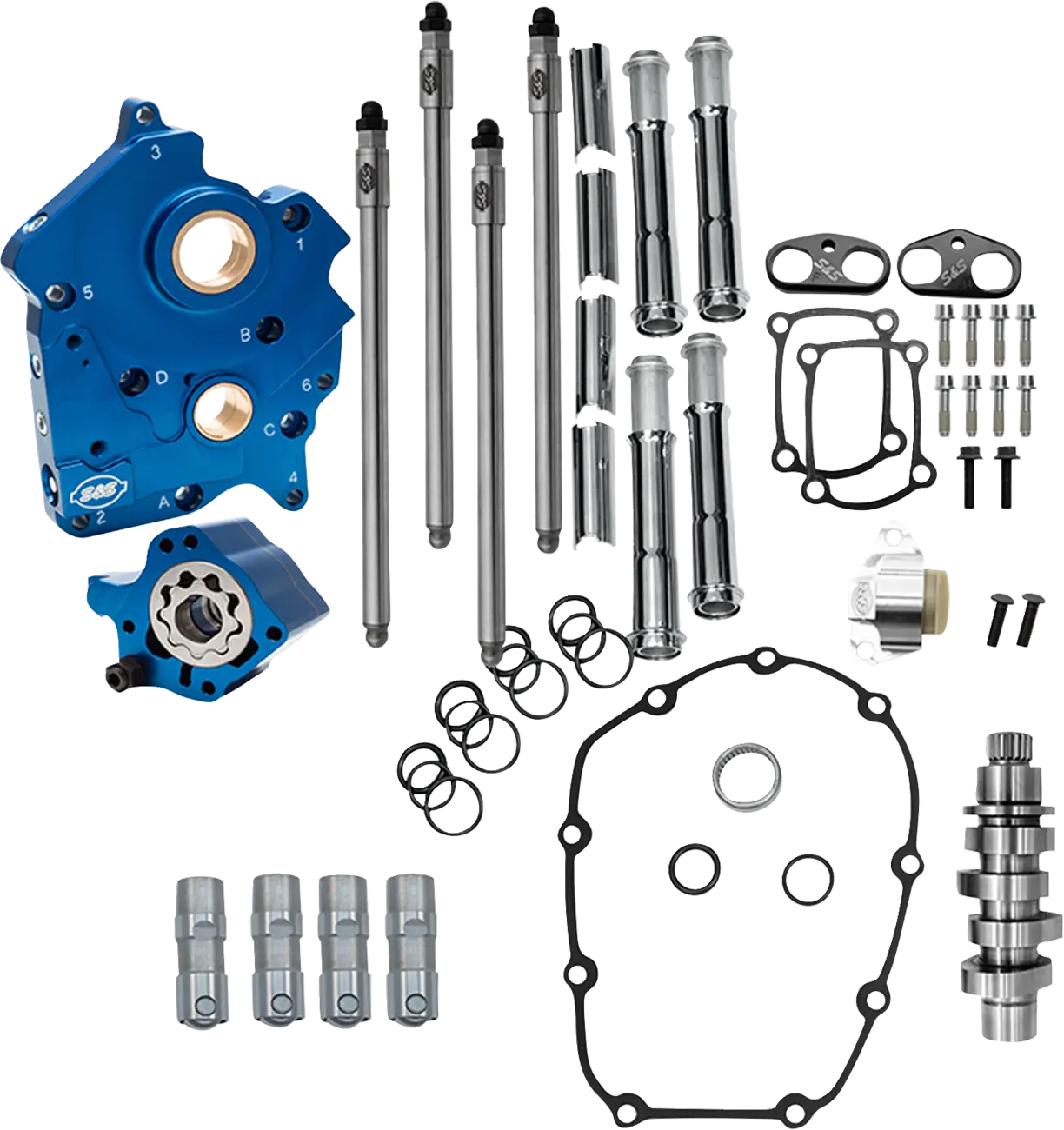

S&S Cycle 496 Series Cam Chest Kit

Upgrade your motorcycle's valvetrain and oiling system with the S&S Cycle 496 Series Cam Chest Kit. This comprehensive performance cam chest kit is engineered for superior durability and optimized engine performance, featuring precision-machined components and the renowned 496 grind cam.

Description

Experience unparalleled engine reliability and performance with this advanced cam chest kit, specifically designed for oil-cooled applications. The heart of this kit lies in its precision-machined billet aluminum oil pump and cam plate, ensuring exceptional strength and exact tolerances. It features independent scavenge sections for both the flywheel cavity and cam chest, optimizing oil return. To maintain oil purity and extend engine life, debris screens are integrated into both scavenge pickups, complemented by a magnet in the cam chest to capture metallic particles before they can enter the oil pump. Enjoy increased oil flow capacity on both the feed and scavenge sides, providing optimal lubrication under all operating conditions. The kit includes an updated oil pump with a groove for an optional OEM oil seal, and an adjustable pressure relief valve that can be fine-tuned even with the unit installed in your engine. The included Quickee pushrods facilitate easier installation, while the high-performance tappets offer fast pump-up and superior high-RPM performance, significantly reducing valvetrain noise from startup to shutdown thanks to their close tolerances. Further enhancing stability, the hard-anodized black tappet cuffs improve tappet stability in high lift and high RPM situations, making this 496 Series cam chest kit a robust upgrade for serious riders seeking the 0.485" intake/exhaust lift and 227° intake / 243° exhaust duration performance of the 496 grind.

Features & Highlights

• Precision Billet Construction: Oil pump and cam plate are meticulously machined from billet aluminum, offering superior strength, accuracy, and longevity compared to cast alternatives.
• Advanced Oiling System: Features independent scavenge sections for the flywheel cavity and cam chest, ensuring efficient oil scavenging and optimal lubrication.
• Enhanced Debris Management: Integrated debris screens in both scavenge pickups and a strategically placed magnet in the cam chest prevent contaminants from reaching the oil pump, extending engine life.
• Optimized Oil Flow: Delivers increased oil flow capacity on both the feed and scavenge sides, providing consistent and robust lubrication under all operating demands.
• Adjustable Pressure Relief: An easily accessible adjustable pressure relief valve allows for fine-tuning oil pressure without disassembling the engine.
• High-Performance Valvetrain Components: Includes Quickee pushrods, high-performance tappets engineered for fast pump-up and reduced valvetrain noise, and hard-anodized tappet cuffs for improved stability in high lift and high RPM scenarios.

Technical Specifications

• Type: Chain
• Grind: 496 Series
• Application: Oil Cooled
• Intake Lift: 0.485"
• Intake Open: 7°
• Exhaust Lift: 0.485"
• Exhaust Open: 48°
• Intake Close: 40°
• Exhaust Close: 15°
• Intake Duration: 227°
• Exhaust Duration: 243°
• Intake Lift at TDC: 0.072"
• Exhaust Lift at TDC: 0.097"
• Features: Chrome Pushrod Tubes
• Units: Kit
• Vendor Part Number: 310-1378

Important to Know

• Optional OEM oil seal not included.
