S&S Cycle Big Twin Forged Piston Kit - 3.530" Bore - +.030" - 106-5514

Upgrade your Big Twin engine with the S&S Cycle 80" Piston Kit, meticulously engineered for superior performance and durability. This kit is designed to provide optimal power and reliability for your vintage or custom build.

Description

The S&S Cycle Piston Kit is specifically designed for 80" Big Twin engines, delivering a robust 8.0:1 compression ratio. Forged from high-strength materials, these pistons offer exceptional durability and resistance to wear, ensuring long-lasting performance. The 3.530" bore size and 4-1/4" stroke length are perfectly matched to provide the ideal balance of power and efficiency. This kit is made in the U.S.A. ensuring top-quality craftsmanship and reliability. Whether you're rebuilding a classic or upgrading for performance, this piston kit delivers the quality and performance you expect from S&S Cycle. The kit includes everything needed for a complete piston replacement, simplifying your engine build.

Features & highlights

• Specifically designed for 80" Big Twin engines.
• Forged pistons provide superior strength and durability.
• Delivers an 8.0:1 compression ratio for optimal performance.

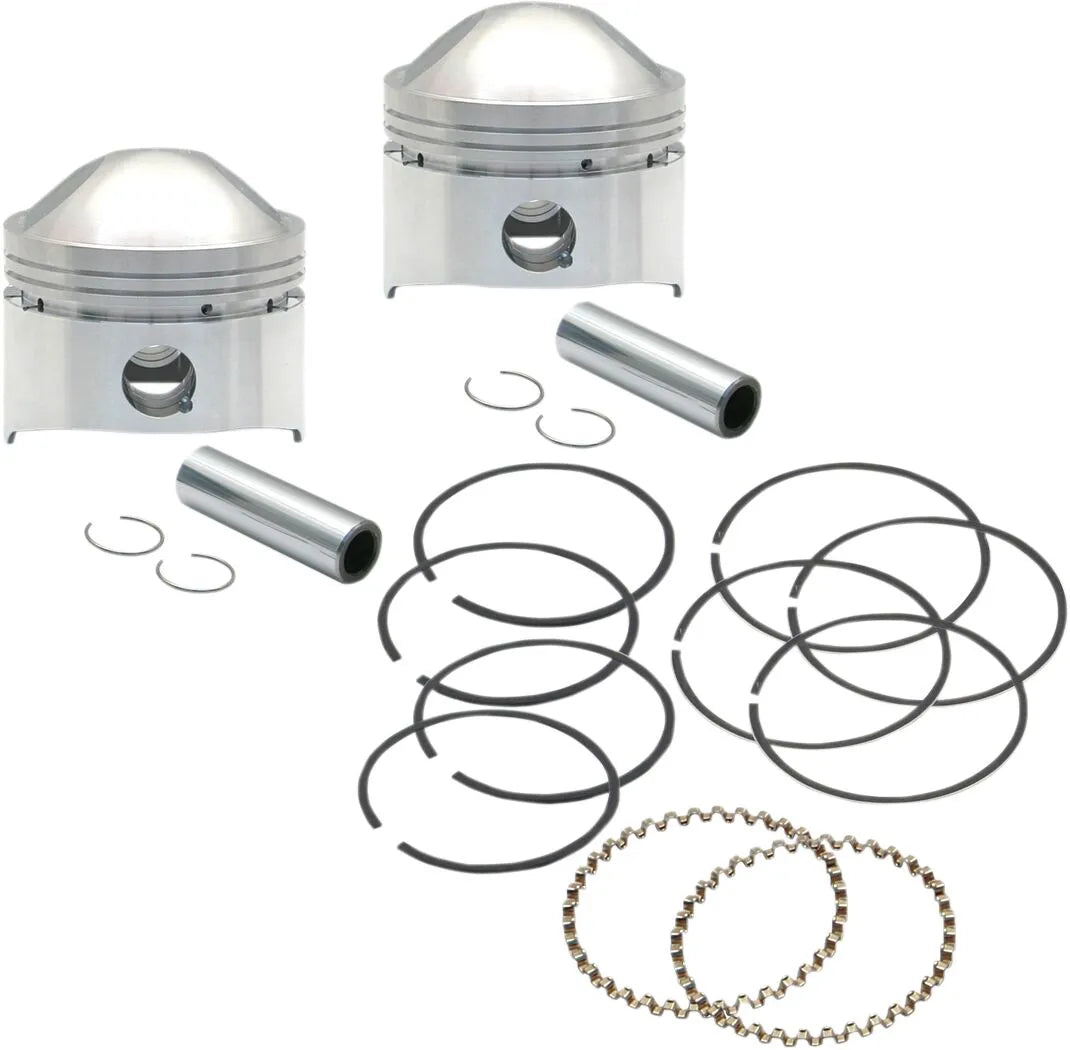

• Kit includes pistons, rings, wristpins, and clips for a complete installation.
• Made in the U.S.A. ensures premium quality and reliability.
• 3.530" bore size and 4-1/4" stroke length for ideal balance.

Technical specifications

• Brand: S&S Cycle
• Product Name: Piston Kit
• Displacement: 80"
• Bore Size: 3.530"
• Bore - Oversize: +0.030"
• Stroke Length: 4-1/4"
• Compression Ratio: 8.0:1
• Piston Material: Forged
• Type: Low Compression
• Units: Kit

Important to know

Requires the use of connecting rods with a rod length of 7.440" (standard length OEM #24281-74A connecting rods). Using earlier connecting rods with a rod length of 7.470" (OEM # 24281-41A) will result in a slight increase in the compression ratio of about one-half point and may also result in clearance problems. Always check all piston to cylinder head clearances carefully when using early-style rods.
