Vertex Top End Piston Kit - 96mm Bore - 450cc - Size D - VTKTC23863D

Upgrade your engine's performance with the Vertex 450cc Forged Piston Kit. This top-end piston kit delivers superior strength and durability, ensuring your four-stroke engine runs at its best. The kit includes everything you need for a complete piston replacement, offering both reliability and enhanced performance.

Description

The Vertex Forged Replica Piston Kit is engineered for optimal performance and longevity. Forged from high-quality 2618 aluminum alloy, this piston provides exceptional strength. Each piston undergoes a T-5 heat treatment, enhancing its durability and resistance to wear. The piston skirt features a Molybdenum Disulphite coating, which promotes faster break-in times and extends piston life. Designed as an OE replacement, this kit ensures seamless compatibility and performance. With a 95.99 mm piston diameter and a 96.00 mm bore size, this standard size D piston kit will deliver the performance you expect.

Features & highlights

• Forged from 2618 aluminum alloy for superior strength and durability.
• T-5 heat treatment enhances durability and wear resistance.
• Molybdenum Disulphite coated skirt allows faster break-in and extends piston life.
• Designed as a direct OE replacement for easy installation.

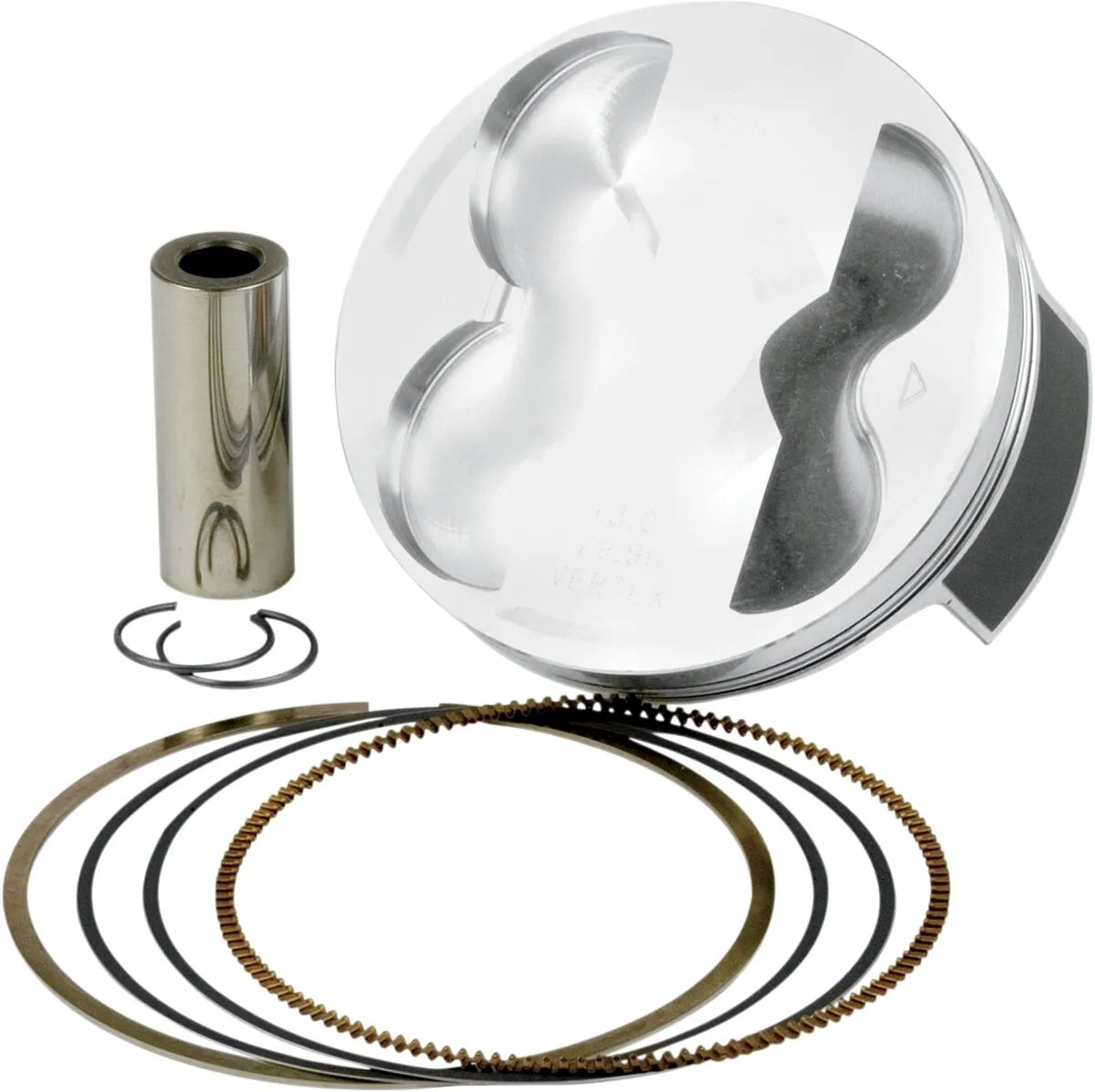

• Complete kit includes piston, rings, wrist pin, circlips, and top-end gaskets.
• Nitride coated steel rings provide excellent sealing and longevity.
• Optimized for 450cc 4-stroke engines with a 12.5:1 compression ratio.

Technical specifications

• Brand: Vertex
• Product Name: Piston Kit
• Engine Type: 4-Stroke
• Displacement: 450 cc
• Bore Size: 96.00 mm
• Piston Diameter: 95.99 mm
• Piston Size: Standard Size D
• Piston Material: Forged Aluminum Alloy
• Ring Material: Nitride Coated Steel
• Compression Ratio: 12.5:1
• Skirt Coating: Moly Coated

Important to know

This top-end piston kit includes all necessary components for installation. Ensure proper engine preparation and follow recommended installation procedures for optimal performance.
