Vertex Cast Race Piston Kit - 54mm Bore - 125cc - Size B - 24427B

Elevate your engine's performance with the Vertex 125cc Cast Race Piston Kit, engineered for demanding 2-stroke applications. This complete kit provides everything needed for a robust and reliable engine rebuild, ensuring peak power and extended durability.

Description

The Vertex Cast Race Piston Kit is meticulously developed using advanced Vertex technology and a race-specific profile to optimize power delivery and reliability in high-performance 2-stroke engines. Each piston, with a precise 53.95 mm diameter and 54.00 mm bore size, is gravity cast from a high-quality aluminum alloy containing 18% silicone. This unique composition delivers an exceptionally light yet remarkably strong piston, ideal for the rigors of racing and aggressive riding. To further enhance its resilience, every piston undergoes a T-5 hardening and tempering heat treatment cycle, significantly boosting its structural integrity and resistance to wear. The skirt of each piston is finished with a high-tech Molybdenum Disulphite coating. This advanced coating not only facilitates a quicker break-in period but also substantially increases the piston's lifespan by reducing friction and wear within the cylinder, making it a superior choice for your 125cc engine rebuild.

Features & Highlights

• Race-Proven Design: Developed with Vertex's cutting-edge technology and a race-specific profile, this cast piston ensures optimal performance and reliability for competitive 2-stroke engine applications.
• Advanced Heat Treatment: Each piston undergoes a T-5 hardening and tempering cycle, enhancing its structural integrity and heat resistance for improved durability under extreme operating conditions.
• Molybdenum Disulphite Skirt Coating: A high-tech Moly coating on the piston skirt reduces friction, promotes faster break-in, and extends the overall lifespan of the piston.
• Lightweight and Strong Construction: Crafted from gravity cast aluminum alloy with 18% silicone content, the piston achieves an optimal balance of lightweight design and exceptional strength.

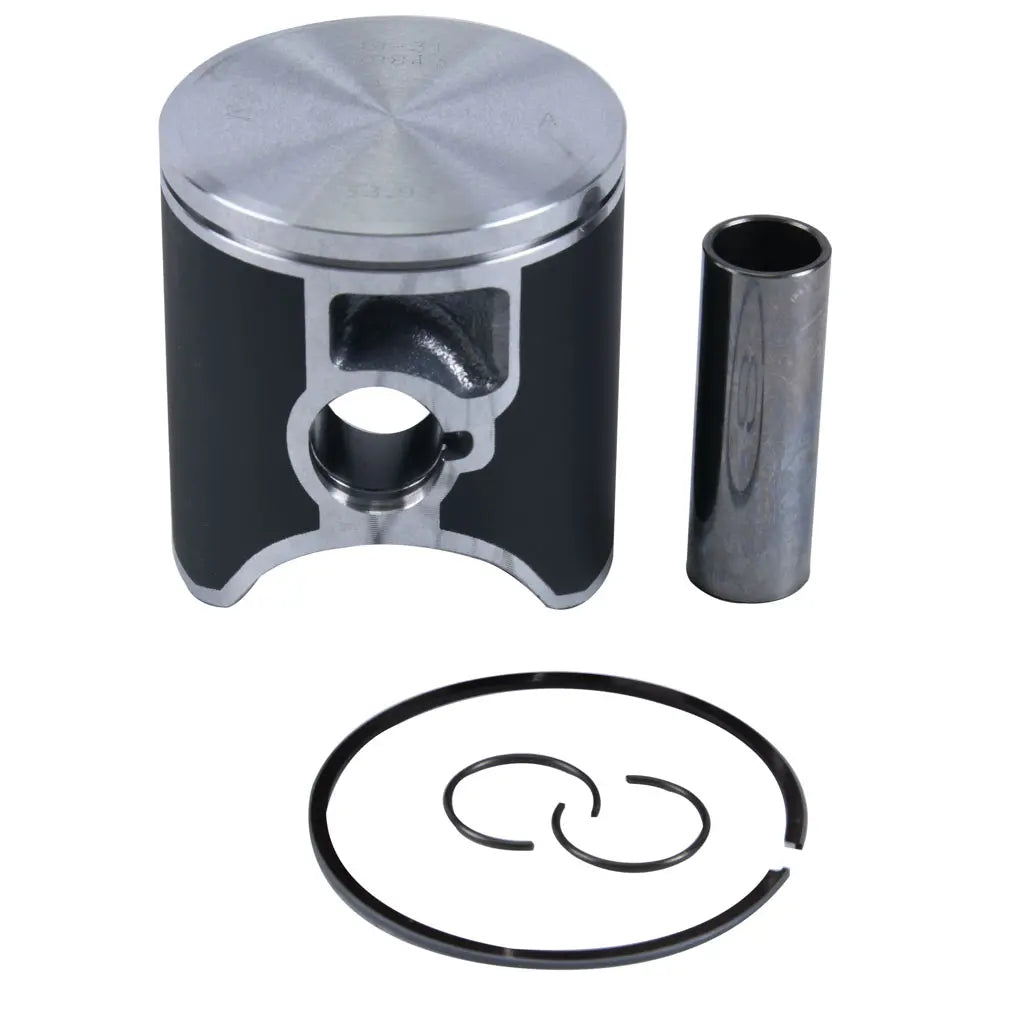

• Complete Rebuild Kit: Includes the piston, nitride coated steel rings, wrist pin, and circlips, providing all necessary components for a comprehensive and efficient engine top-end rebuild.

Technical Specifications

• Product Name: Piston Kit
• Style: Cast Race
• Engine Type: 2-Stroke
• Displacement: 125 cc
• Bore Size: 54.00 mm
• Piston Diameter: 53.95 mm
• Piston Size: Standard Size B
• Piston Material: Aluminum Alloy, Cast
• Ring Material: Nitride Coated, Steel
• Skirt Coating: Moly Coated
• Units: Kit
• Vendor Part Number: 24427B
