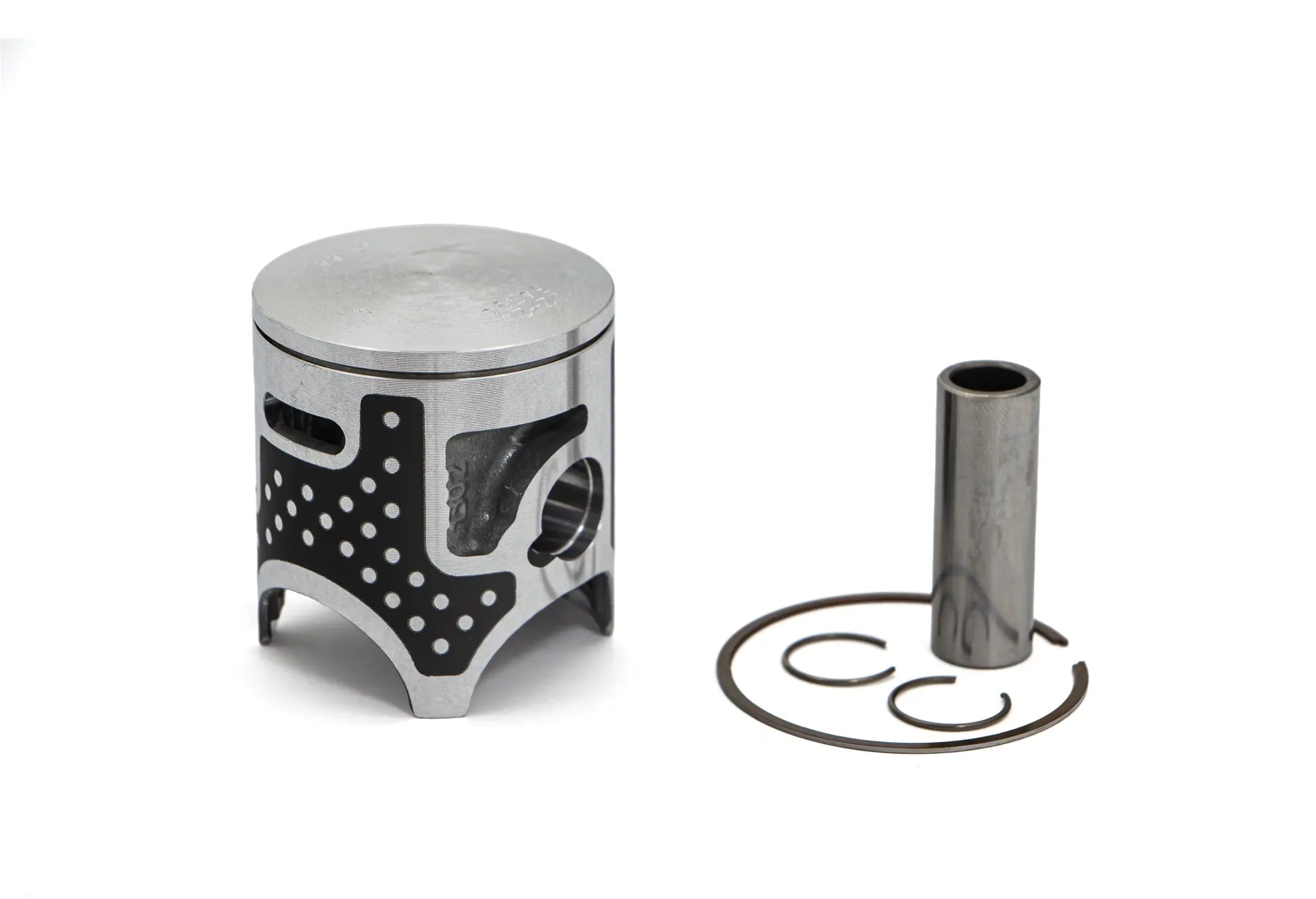

Vertex Cast Race Piston Kit for 2-Stroke Engines

Elevate your motorcycle's performance with the high-quality Vertex Cast Race Piston Kit, specifically engineered for demanding 2-stroke engine applications. This advanced piston kit combines Vertex's renowned technology with a race-profile design, ensuring exceptional durability and power delivery.

Description

Experience a significant boost in your 2-stroke engine's reliability and power output with the Vertex Cast Race Piston Kit. Developed using Vertex's cutting-edge technology, this high-performance piston features a race-shaped profile designed for optimal combustion and reduced friction. Each piston undergoes a rigorous T-5 hardening and tempering cycle, enhancing its structural integrity and resistance to extreme operating conditions. The piston skirts are meticulously coated with a high-tech Molybdenum Disulphite (Moly) coating, which not only accelerates the break-in process but also significantly extends piston life by minimizing wear. This gravity cast aluminum piston is crafted from a durable aluminum alloy containing 18% silicone, striking an ideal balance between an extremely light weight and exceptional strength. Engineered for 85 cc engines with a standard compression ratio, this 2-stroke piston kit offers a standard bore size of 48.50 mm. The complete kit includes everything you need for a comprehensive piston replacement: the piston, rings (nitride coated steel), wrist pin, and circlips, ensuring a straightforward installation and reliable upgrade for your motorcycle.

Features & Highlights

• Optimized Race Profile: Engineered with Vertex's advanced technology and a race-shaped profile for superior performance and efficient power transfer in demanding 2-stroke applications.
• Enhanced Durability & Longevity: Undergoes a T-5 heat treatment cycle, significantly increasing piston hardness and tempering for exceptional resilience against high-stress environments.
• Advanced Moly Coating: Piston skirts feature a high-tech Molybdenum Disulphite coating, reducing friction for faster break-in and extending the overall lifespan of the piston.
• Lightweight, High-Strength Construction: Gravity cast from an 18% silicone aluminum alloy, delivering an exceptionally light yet incredibly strong piston for peak engine responsiveness.
• Complete Replacement Kit: Includes the piston, nitride coated steel rings, wrist pin, and circlips, providing all necessary components for a complete and hassle-free installation.

Technical Specifications

• Product Name: Piston Kit
• Brand: Vertex
• Style: Cast Race
• Engine Type: 2-Stroke
• Piston Material: Aluminum Alloy, Cast (18% Silicone Content)
• Piston Diameter: 48.46 mm
• Bore Size: 48.50 mm
• Piston Size: Standard Size C
• Displacement: 85 cc
• Compression Ratio: Standard
• Ring Material: Nitride Coated, Steel
• Skirt Coating: Moly Coated
• Units: Kit
• Vendor Part Number: 24582C
