Wossner Premium Series Piston Kit for 4-Stroke Engines

Elevate your motorcycle's performance with the Wossner Premium Series 4-stroke piston kit. Engineered for durability and high-performance applications, this kit provides a significant upgrade to your engine's power and reliability. Experience superior lubrication and a quieter running engine with Wossner's advanced design.

Description

Designed by Wossner, a leader in high-performance engine components, this 4-stroke piston kit is crafted from robust forged aluminum alloy, ensuring exceptional strength and longevity under extreme conditions. The kit is precision-engineered to deliver an impressive 14.4:1 compression ratio, boosting your engine's power output and responsiveness. Featuring a bore size of 78.01 mm and a piston size of 77.97 mm, it provides optimal clearance for efficient operation.

Advanced lubrication is central to this Wossner piston kit, incorporating enhanced piston pin oiling slots, radial boss machining, and annular grooves. These features work in concert to significantly improve wrist pin lubrication, reducing friction and wear for extended component life. The lightweight piston design, combined with a tight piston wall clearance, contributes to a quieter running engine. Furthermore, the skirt is specially coated to minimize friction and promote a superior break-in performance, while the ring land treatment ensures an improved ring seal and precise oil control. For ultimate resilience, the piston features a double-bridged forging design where applicable, making this an ideal choice for a high-performance motorcycle engine rebuild kit.

Features & Highlights

• Superior Lubrication System: Enhanced piston pin oiling slots, radial boss machining, and annular grooves work together to provide optimal wrist pin lubrication, reducing friction and extending component lifespan.
• Quiet & Efficient Operation: A lightweight piston design coupled with tight piston wall clearance ensures a smoother, quieter running engine without compromising performance.
• Enhanced Durability & Performance: The skirt is coated for reduced friction, promoting a better break-in process and improved long-term reliability for your high-compression piston.
• Optimized Ring Seal: Specialized ring land treatment improves ring sealing and offers superior oil control, maintaining consistent performance and engine health.
• Robust Forged Design: Constructed from a high-strength forged aluminum alloy, featuring a double-bridged design for exceptional durability and resistance to stress.

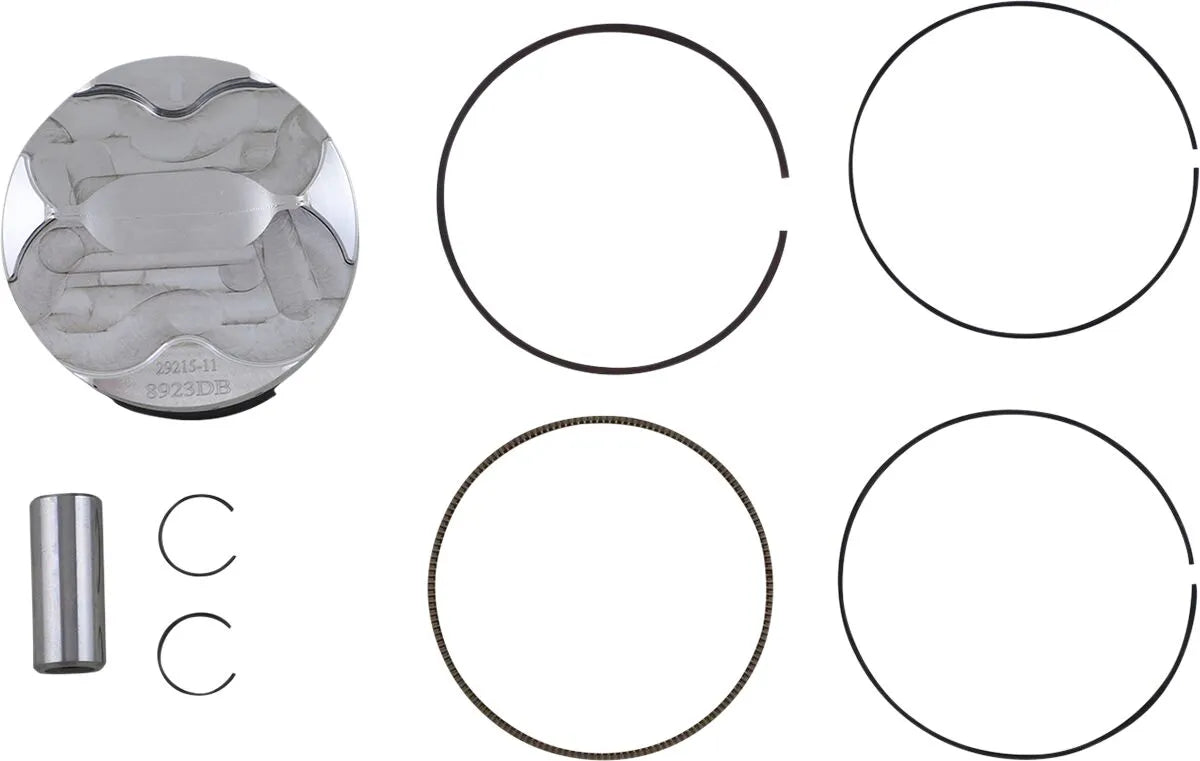

• Complete Kit: Includes everything needed for a comprehensive piston replacement, featuring the piston, high-quality rings, wrist pin, and secure pin locks.

Technical Specifications

• Model: Premium Series
• Product Name: Piston Kit
• Engine Type: 4-Stroke
• Piston Material: Forged Aluminum Alloy
• Compression Ratio: 14.4:1
• Bore Size: 78.01 mm
• Piston Size: 77.97 mm
• Bore - Oversize: +0.01 mm
• Stroke Length: 52.30 mm
• Style: Standard Size B
• Units: Kit
• Vendor Part Number: 8923DB
