Wossner Pro 4-Stroke Forged Piston Kit - Size A - 12.0:1 - 8546DA
Info prodotto
- Codice articolo
- 09104921
- Codice produttore
- 8546DA
- Posizione
Elevate your engine's performance with the Wossner Pro Series Piston Kit, meticulously engineered for demanding motorcycle applications. Featuring a precise 95.96mm piston diameter and a 12.0:1 compression ratio, this kit delivers the reliability and power you need on the track or trail.
Description
The Wossner Pro Series Piston Kit is designed to optimize your 4-stroke engine's output and longevity. Each piston is precision-forged from aerospace-grade aluminum alloy, ensuring exceptional strength and durability under extreme conditions. The advanced dual-ring design, combined with a permanent molybdenum disulphite (Moly) skirt coating, significantly reduces friction and minimizes piston rock. This not only contributes to quieter operation but also aids in a smoother, more efficient break-in period and enhanced long-term performance.
Wossner's commitment to engineering excellence is evident in the optimized machining, which achieves an ideal balance of lightness without compromising strength in critical areas like the crown and skirt wall cross-section. This meticulous design ensures maximum power transfer and responsiveness from your engine. With a robust 12.0:1 compression ratio, this piston kit is built to handle high-performance demands. The complete kit includes the piston, high-quality nitride coated steel and cast rings, a wrist pin, and retaining clips, providing everything necessary for a comprehensive engine refresh or upgrade.
Features & Highlights
- Superior Durability & Performance: Precision-forged from aerospace-grade aluminum alloy for exceptional strength and resilience, designed to withstand high-stress engine environments.
- Reduced Friction & Wear: Features a permanent Molybdenum Disulphite (Moly) skirt coating, minimizing friction, reducing piston rock, and ensuring a quieter, more efficient engine operation.
- Optimized Lightweight Design: Expertly machined for optimal lightness while maintaining critical strength in the crown and skirt wall, enhancing engine responsiveness and power delivery.

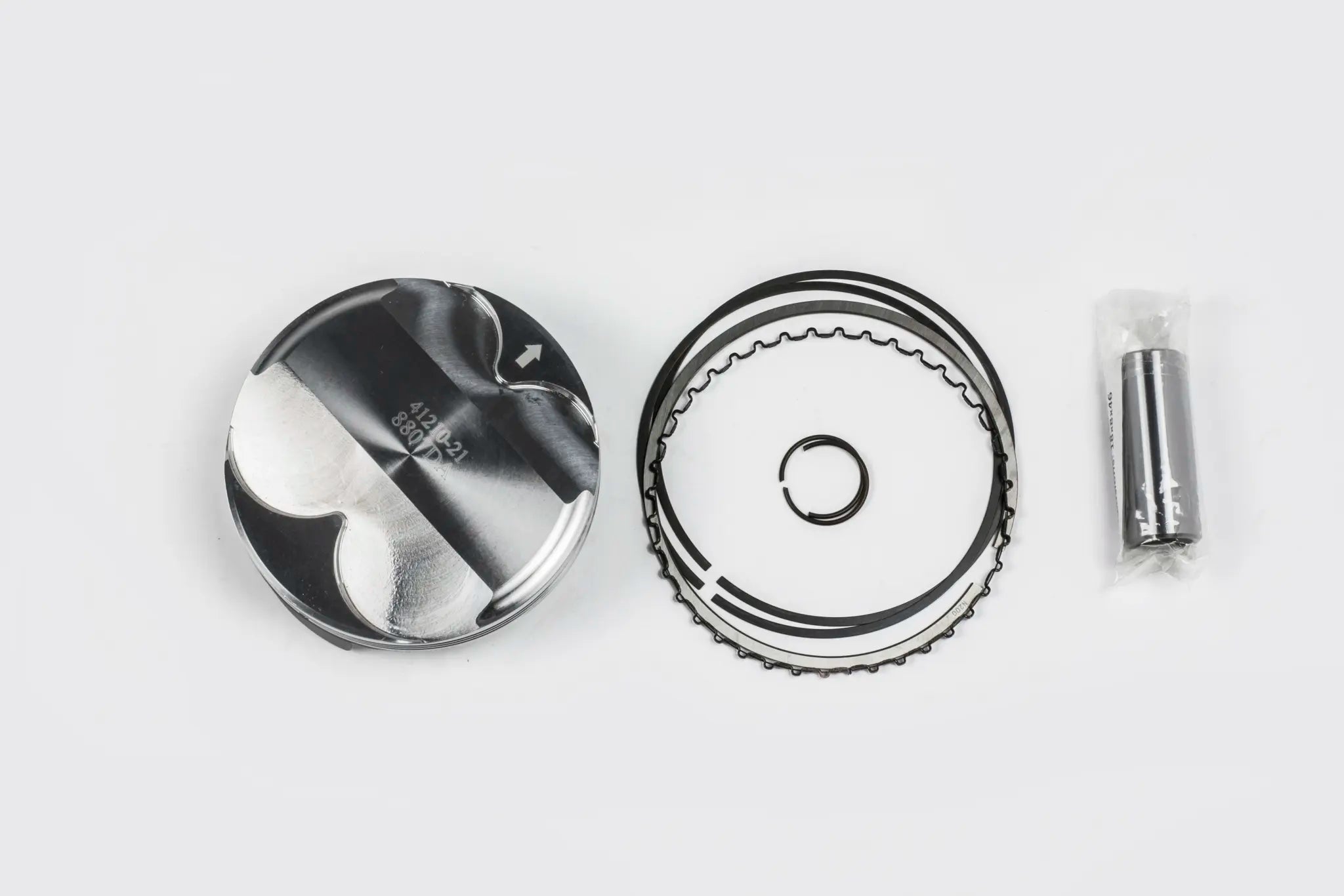

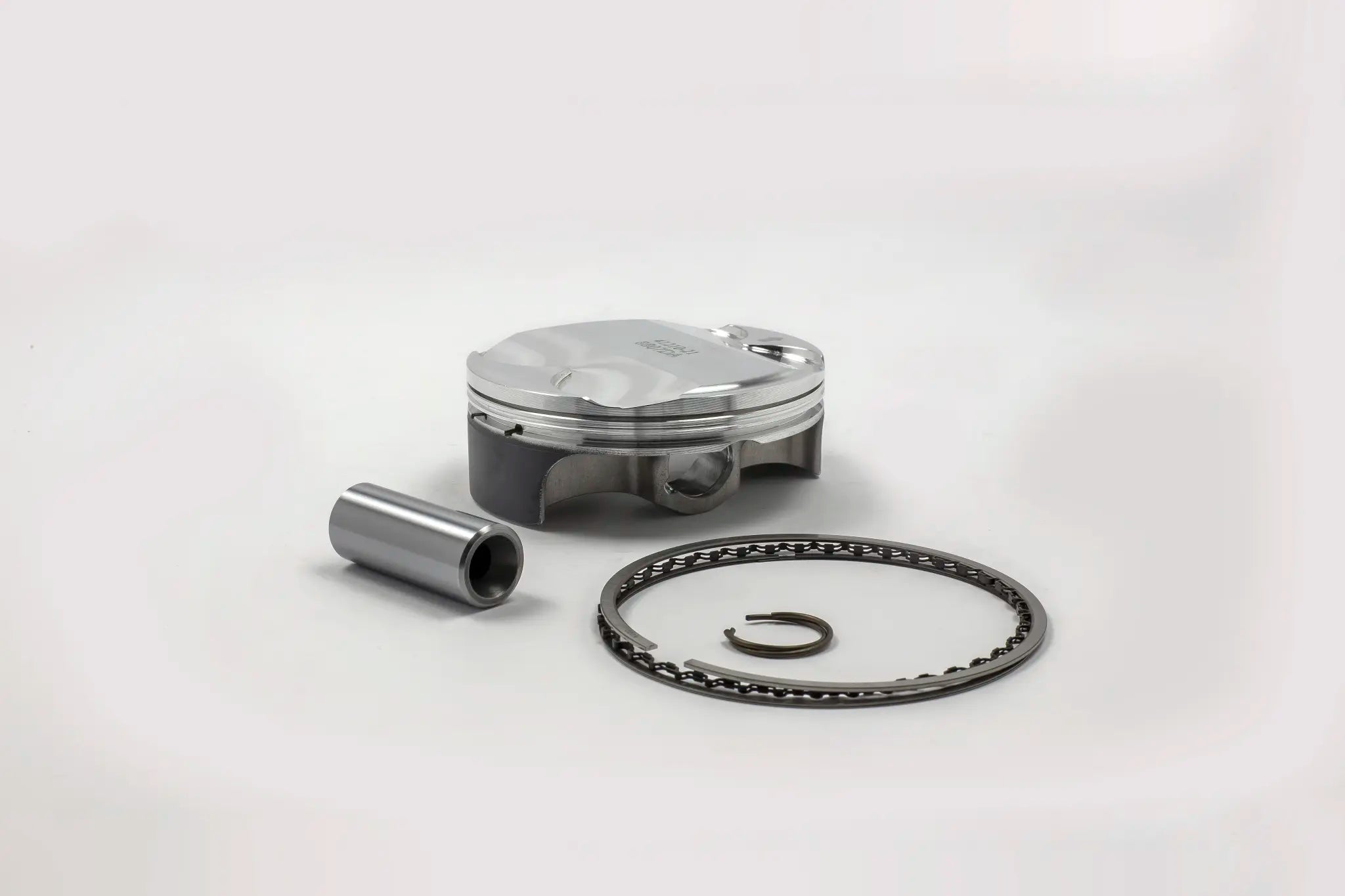

- Complete Engine Refresh Kit: Includes a high-quality dual-ring piston, nitride coated steel and cast rings, a wrist pin, and all necessary clips for a straightforward installation.
- High Compression for Power: Engineered with a 12.0:1 compression ratio to maximize your 4-stroke engine's power output and efficiency.
Technical Specifications
- Brand: Wossner
- Model: Pro Series
- Product Name: Piston Kit
- Engine Type: 4-Stroke
- Piston Material: Forged Aluminum Alloy
- Piston Diameter: 95.96 mm
- Stroke Length: 62.10 mm
- Compression Ratio: 12.0:1
- Piston Type: Dual Ring
- Skirt Coating: Molybdenum Disulphite
- Ring Material: Nitride Coated, Steel, Cast
- Piston Size: Standard Size A
- Units: Kit
- Vendor Part Number: 8546DA
- Vendor part number
- 8546DA
- Model
- Pro Series
- Product name
- Piston Kit
- Compression ratio
- 12,0:1
- Piston material
- Aluminum Alloy, Forged
- Stroke length
- 62,10 mm
- Width
- 110 mm
- Height
- 65 mm
- Ring material
- Nitride Coated, Steel, Cast
- Piston size
- Standard Size A
- Length
- 110 mm
- Piston diameter
- 95,96 mm
- Skirt coating
- Molybdenum Disulphite
- Engine type
- 4-Stroke
- Type
- Dual Ring
- Units
- Kit
