S&s Cycle M8 Cam Chest Kit - Gear Drive

Upgrade your Milwaukee-Eight engine with the S&S Cycle Cam Chest Kit. This comprehensive kit is designed to enhance performance, improve reliability, and simplify installation, ensuring your engine runs stronger and smoother. All components are meticulously matched for superior quality, precise fit, and exceptional performance.

Description

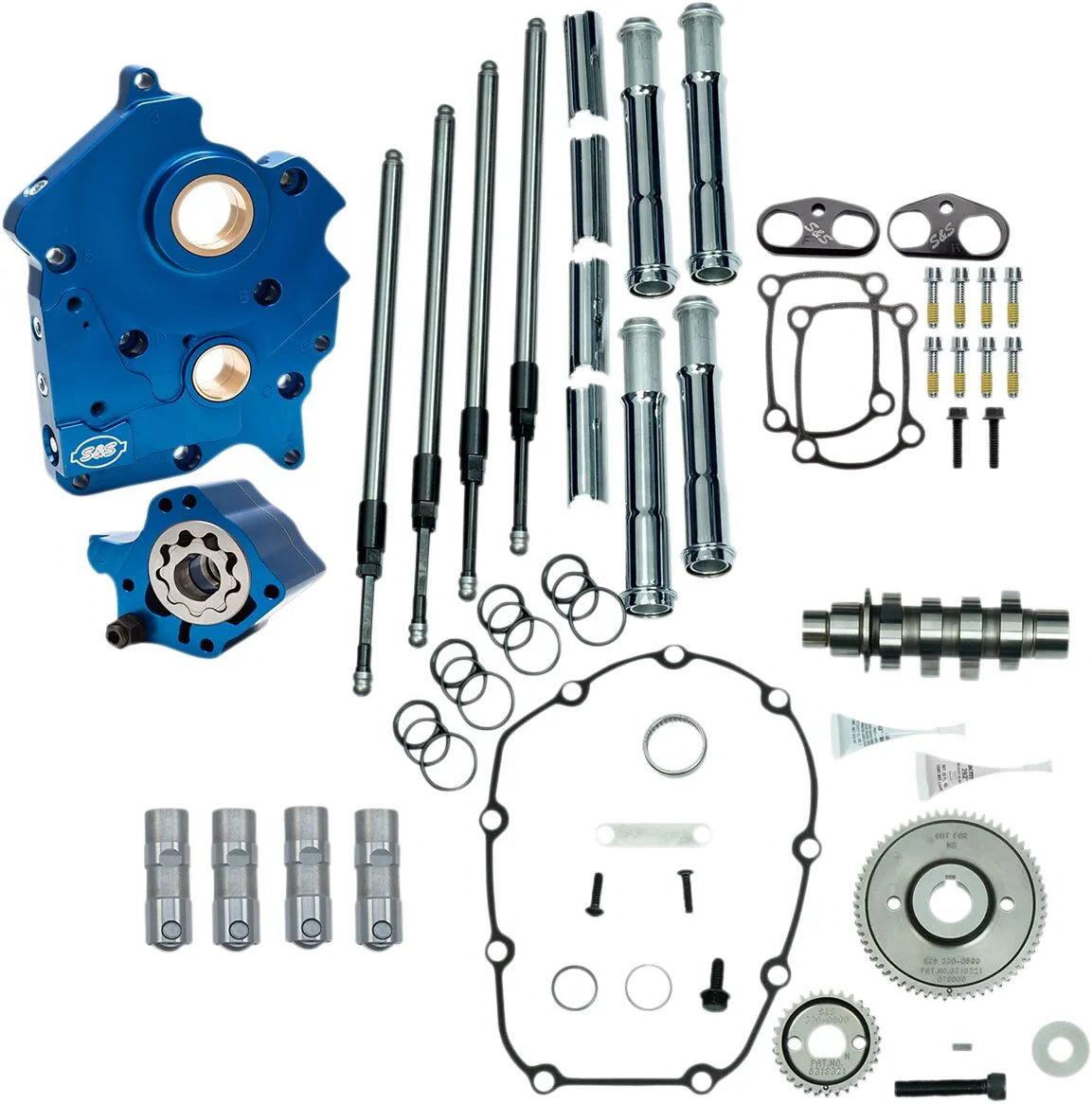

The S&S Cycle Cam Chest Kit for M8 engines provides a complete solution for upgrading your valvetrain. The billet aluminum oil pump and cam plate, featuring a distinctive blue anodized finish, are precision-machined for optimal oil flow and durability. Independent scavenge sections efficiently evacuate oil from the flywheel cavity and cam chest, while debris screens in both scavenge pickups prevent contaminants from circulating through the engine. The adjustable pressure relief valve allows for fine-tuning while installed. This kit also includes S&S Quickee pushrods with finished pushrod tubes, S&S premium tappets, and billet aluminum tappet cuffs with a hard-anodized black coating for increased strength and reduced distortion. These cuffs enhance tappet stability, especially in high-lift and high-RPM applications, resulting in improved cam timing accuracy. The gear drive eliminates the stock cam chain tensioner, a known weak point in the M8 engine. All necessary gaskets, bearings, outer drive gears, and hardware are included for a hassle-free installation.

Features & highlights

• Complete cam chest upgrade kit for Milwaukee-Eight engines.
• Precision-machined billet aluminum oil pump and cam plate with blue anodized finish.
• Independent scavenge sections and debris screens for improved oil scavenging and filtration.
• Adjustable pressure relief valve for optimized oil pressure.
• S&S Quickee pushrods, premium tappets, and billet aluminum tappet cuffs for enhanced valvetrain stability.
• Gear drive system eliminates the stock cam chain tensioner.
• Includes all necessary gaskets, bearings, and hardware for a complete installation.

Technical specifications

• Brand: S&S Cycle
• Product Name: Camchest Kit
• Type: Gear
• Application: Water Cooled
• Intake Open: 6.2° Front, 2.2° Rear
• Intake Close: 27.2° Front, 31.2° Rear
• Intake Duration: 213.5° Front, 213.5° Rear
• Intake Lift: 0.475"
• Intake Lift at TDC: 0.107" Front, 0.093" Rear
• Intake Lobe Centerline: 100.5° Front, 104.5° Rear
• Exhaust Open: 55.5° Front, 52.2° Rear
• Exhaust Close: 28.5° Front, 20.2° Rear
• Exhaust Duration: 263.9° Front, 252.5° Rear
• Exhaust Lift: 0.475"
• Exhaust Lift at TDC: 0.208" Front, 0.170" Rear
• Exhaust Lobe Centerline: 103.5° Front, 106.0° Rear
• Pushrod Tubes: Chrome
• Grind: 475G

Important to know

This kit includes all necessary components for installation. Professional installation is recommended.
