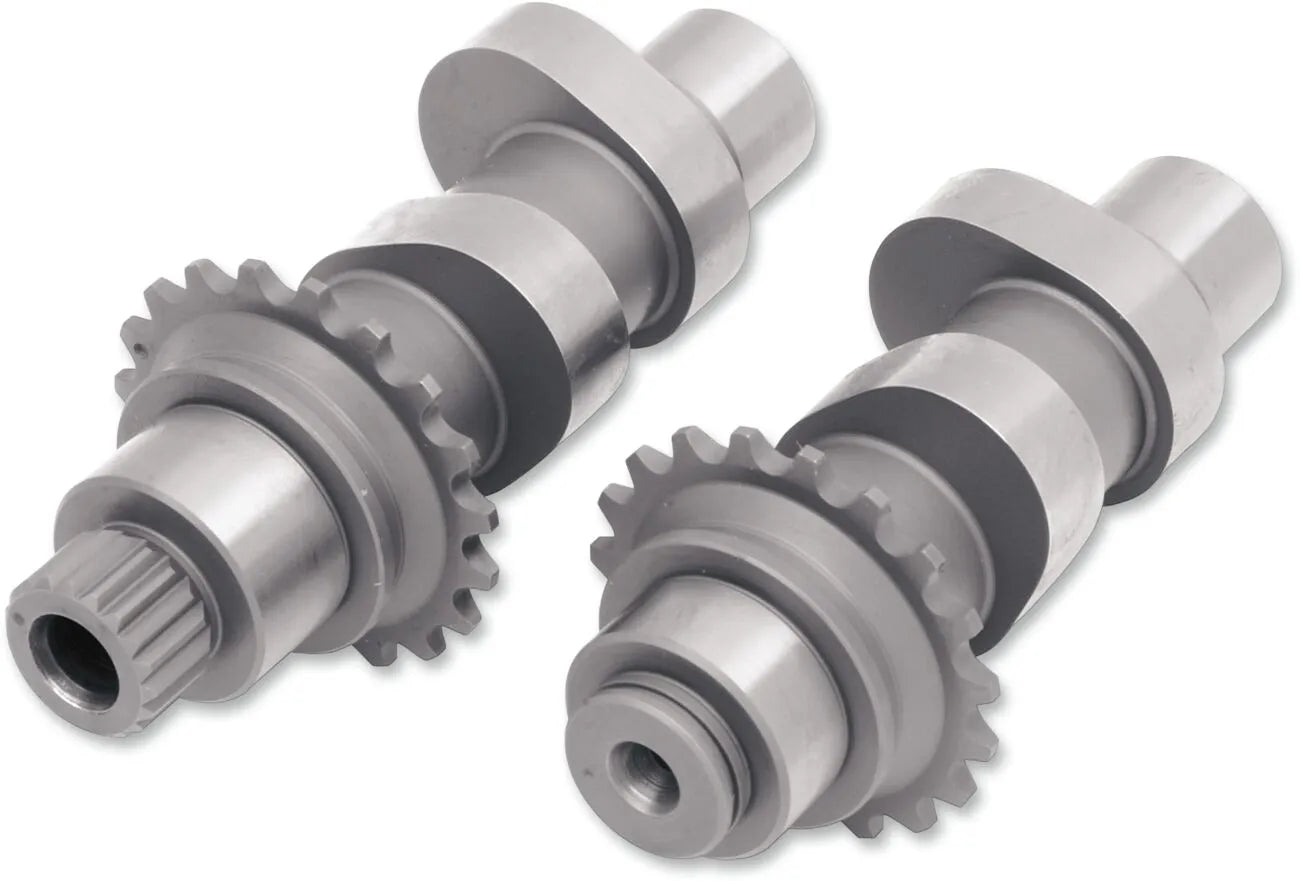

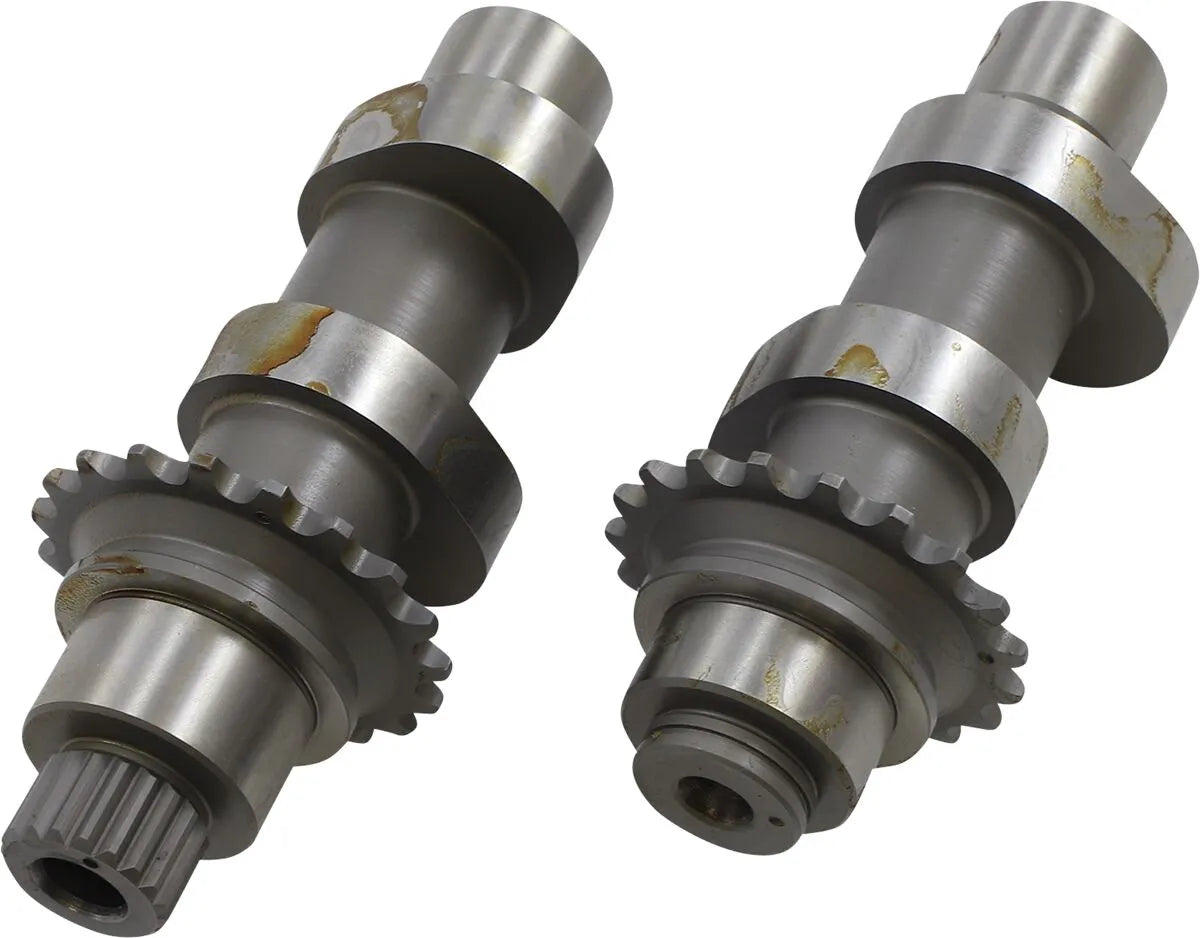

Andrews Twin Cam 37N Cam Kit - 216837

Upgrade your '99-'06 Twin Cam (except '06 Dyna Glide) engine with the Andrews Chain Conversion Cam. This kit converts your existing system to the newer, more reliable roller-style cam chains and replaces the spring tension cam chain adjusters with modern hydraulic adjusters.

Description

The Andrews Chain Conversion Cam is designed to enhance the performance and longevity of your Twin Cam engine. By converting to roller-style cam chains and hydraulic adjusters, you'll experience improved reliability and reduced maintenance. These cam grinds are optimized for use with stock lifters, providing performance similar to earlier bikes with the same cam profiles. The "N" series cams accommodate the new style cam support plate while maintaining the .875" bearing journal required for '99-'06 engines. Ensure proper installation by checking coil bind, valve-to-valve clearance, and valve-to-piston clearance.

Features & highlights

• Upgrades '99-'06 Twin Cam engines to newer roller-style cam chains.
• Replaces spring tension adjusters with longer-lasting hydraulic adjusters.
• Optimized cam grinds designed for use with stock lifters.
• Maintains .875" bearing journal while accepting the new style cam support plate.
• Improves engine reliability and reduces maintenance.
• Made in the USA.

Technical specifications

• Brand: Andrews
• Product Name: Cam Kit
• Type: Chain Conversion
• Application: Exhaust, Intake
• Grind: 37 Series
• Intake Open: 18°
• Intake Close: 48°
• Intake Duration: 240°
• Intake Lift: 0.510"
• Intake Lift at TDC: 0.174"
• Intake Lobe Centerline: 100°
• Exhaust Open: 46°
• Exhaust Close: 14°
• Exhaust Duration: 236°
• Exhaust Lift: 0.510"
• Exhaust Lift at TDC: 0.148"
• Exhaust Lobe Centerline: 106°

Important to know

This kit requires the installation of a '07-'17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters. These parts are not included and must be purchased separately. A list of required components is supplied with each set of cams. '99-'01 model motors require Andrews rear cam sprocket. '02-'06 models must use the stock rear cam sprocket, OEM #25728-06. This kit is not compatible with '06 Dyna Glide models.
