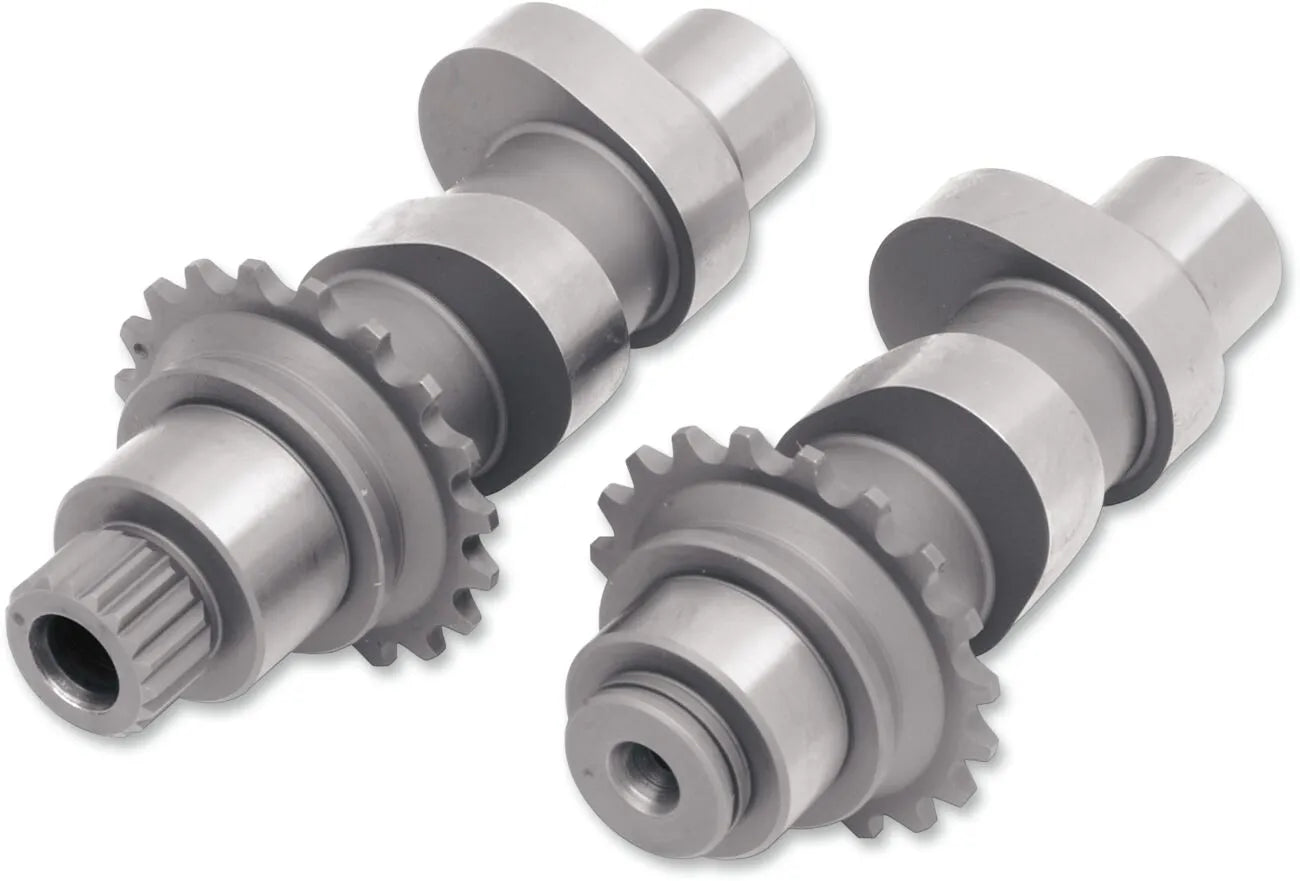

Andrews Twin Cam 09H Cam Set - 216309

Upgrade your motorcycle's performance with the Andrews Chain Drive Cam Set. This high-performance cam set delivers increased power and improved torque throughout the entire RPM range, from 1000 to 5400 RPM. Experience enhanced acceleration and a more responsive throttle.

Description

The Andrews Chain Drive Cam Set is engineered to provide a significant boost to your engine's capabilities. Designed as a bolt-in upgrade, this cam set provides more power through the entire RPM range (1000-5400 rpm). Crafted from premium alloy steel billets and heat-treated for maximum durability and reliability, these cams are built to withstand the rigors of high-performance use. Computer-aided design ensures optimal cam lobe profiles for superior engine performance and smooth operation. These cams are designed to work with stock valve springs, simplifying the installation process. Enhance your bike's performance with the Andrews Chain Drive Cam Set, offering a potent combination of power and durability.

Features & highlights

• Delivers increased horsepower and torque throughout the 1000-5400 RPM range.
• Constructed from high-quality alloy steel billets for superior strength and longevity.
• Heat-treated for enhanced wear resistance and durability.
• Computer-designed for optimal performance and smooth operation.
• Designed for easy bolt-in installation, often compatible with stock valve springs.
• Optimized valve timing for improved engine breathing and power output.
• Experience more responsive throttle and enhanced acceleration.

Technical specifications

• Brand: Andrews
• Product Name: Cam Set
• Type: Chain Drive
• Intake Duration (@0.053"): 206°
• Intake Duration (@0.020"): 242°
• Intake Lift: 0.492"
• Intake Open: -02°
• Intake Close: 28°
• Intake Lift at TDC: 0.075"
• Exhaust Duration (@0.053"): 216°
• Exhaust Duration (@0.020"): 252°
• Exhaust Lift: 0.486"
• Exhaust Open: 40°
• Exhaust Close: -08°
• Exhaust Lift at TDC: 0.075"
• Grind: 9 Series

Important to know

Installation requires checking coil bind, valve-to-valve clearance, and valve-to-piston clearance to ensure proper operation and prevent engine damage. Professional installation is recommended.
