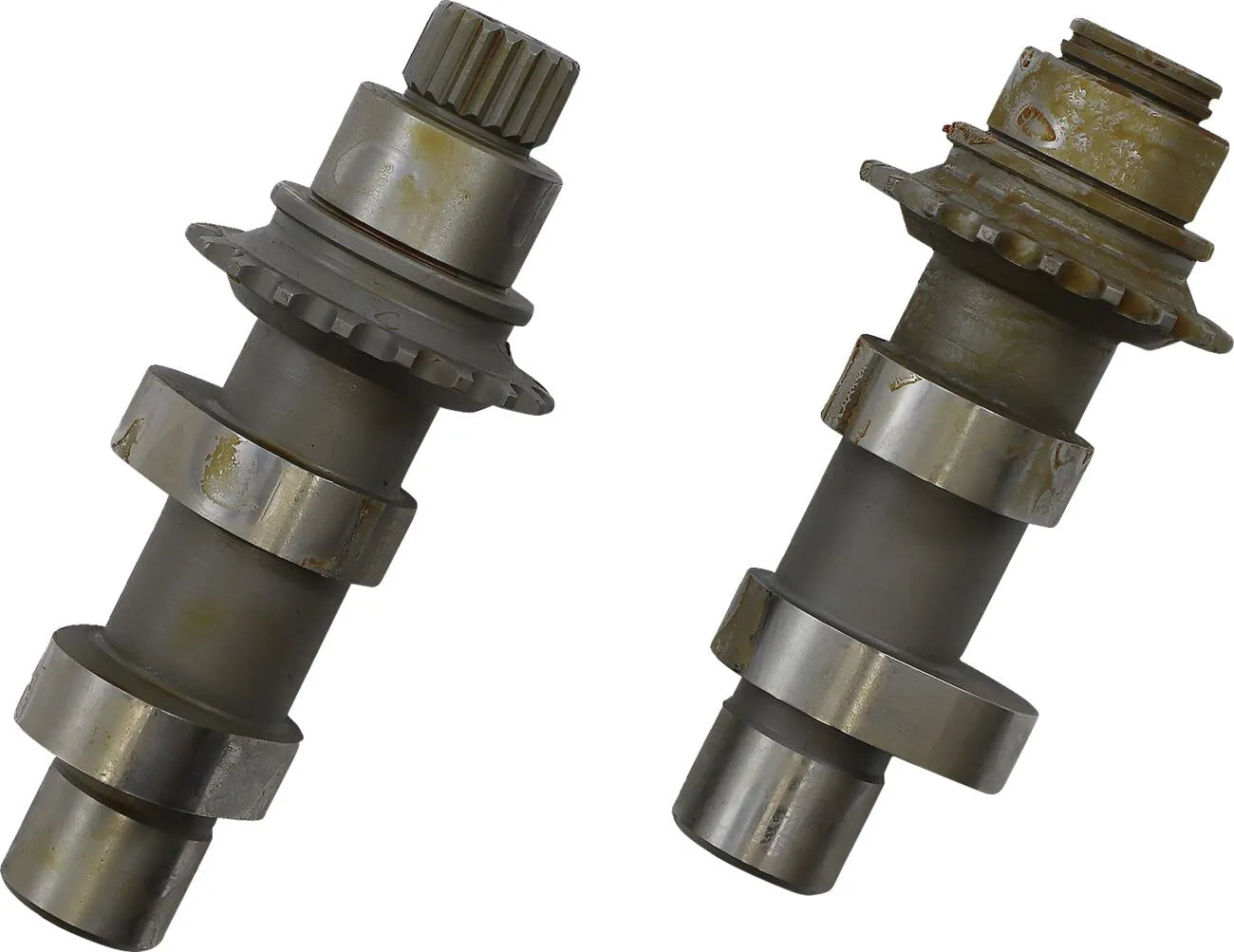

Andrews Twin Cam 55N Cam Kit - 216855

Upgrade your '99-'06 Twin Cam (except '06 Dyna Glide) with the Andrews Conversion Chain Driven Cam. This kit allows you to convert to newer roller-style cam chains and replaces the spring tension cam chain adjusters with late-style hydraulic adjusters, boosting the lifespan of your engine components. Made in the USA, this kit ensures quality and performance for your Twin Cam.

Description

The Andrews Conversion Chain Driven Cam is designed to enhance the performance and reliability of your '99-'06 Twin Cam engine. By converting to modern roller-style cam chains and hydraulic adjusters, you'll experience smoother operation and reduced wear. The included cam grinds are optimized for use with stock lifters, providing a performance profile similar to earlier bikes with the same cam grinds. This conversion kit not only modernizes your engine but also simplifies maintenance and enhances overall durability. Ensure your engine operates at its best with this high-quality conversion kit, designed for enthusiasts and professionals alike.

Features & highlights

• Upgrades '99-'06 Twin Cam to newer roller-style cam chains for improved performance.
• Replaces spring tension cam chain adjusters with hydraulic adjusters for extended life.
• Cam grinds are designed for use with stock lifters, simplifying installation.
• Delivers performance similar to earlier bikes with comparable cam grinds.
• Made in the USA, ensuring top-quality manufacturing and materials.
• Facilitates smoother engine operation and reduces wear on vital components.

Technical specifications

• Brand: ANDREWS
• Product Name: Cam Kit
• Type: Chain Conversion
• Application: Exhaust, Intake
• Exhaust Close: 20°
• Exhaust Duration: 252°
• Exhaust Lift: 0.550"
• Exhaust Lift at TDC: 0.181"
• Exhaust Lobe Centerline: 106°
• Exhaust Open: 52°
• Grind: 55 Series
• Intake Close: 46°
• Intake Duration: 248°
• Intake Lift: 0.550"
• Intake Lift at TDC: 0.197"
• Intake Lobe Centerline: 102°
• Intake Open: 22°

Important to know

• Requires the installation of a '07-'17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters (these parts are not included and must be purchased separately). A list of required components is supplied with each set of cams.
• '99-'06 Twin Cam motors (except '06 Dyna Glide) cannot directly use '07-'17 cams, as the bearing journal on the earlier motors is 0.875" in diameter, while '07-'17 cams are 1.000" in diameter.
• '99-'01 model motors require Andrews rear cam sprocket.
• '02-'06 models must use the stock rear cam sprocket, OEM #25728-06.
• Installer must check coil bind, valve-to-valve clearance, and valve-to-piston clearance.
