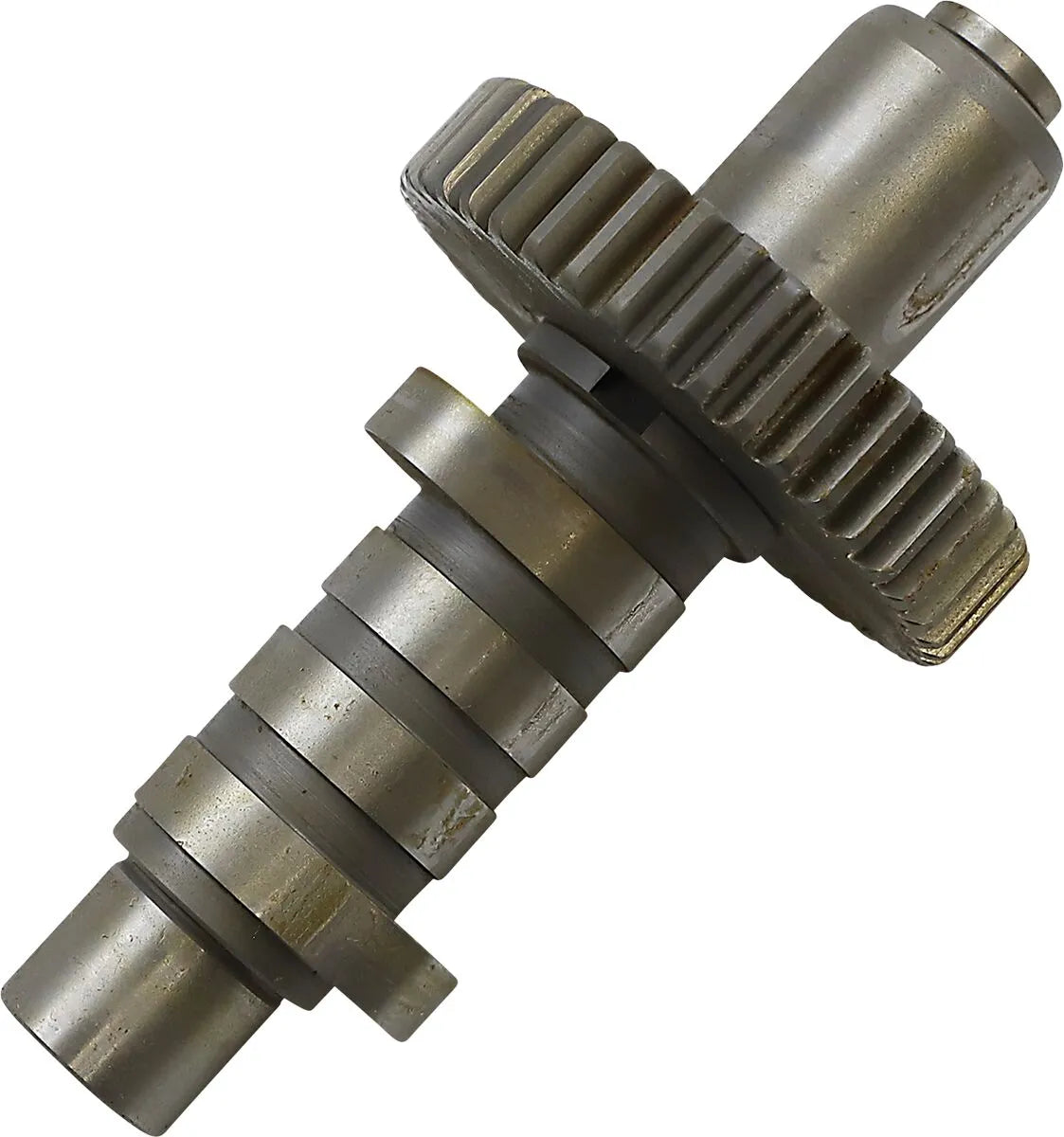

Andrews EV3 Camshaft - .495" Lift - 291130

Unleash the true potential of your motorcycle with the Andrews EV3 Cam. This performance camshaft is designed to deliver exceptional power and responsiveness, transforming your riding experience.

Description

The Andrews EV3 Cam is engineered to provide a significant boost in mid-range power, especially beneficial for lighter bikes such as FXRS models. Experience the thrill of enhanced acceleration and improved overall performance. This cam allows for operation up to 6000+ rpm with stock valve springs, eliminating valve float. Designed as a bolt-in cam, installation is straightforward, allowing you to quickly upgrade your bike and get back on the road. This camshaft is made in the USA to ensure top-tier quality and reliability. The Andrews EV3 cam delivers power where you need it most.

Features & highlights

• Achieve 6000+ RPM with stock valve springs, eliminating valve float.
• Bolt-in design for easy installation, especially in lighter bikes like FXRS.
• Significantly enhances mid-range power for improved acceleration.
• Optimized for use with stock heads and hydraulic lifters.
• Proudly made in the USA, ensuring superior quality and performance.
• Improves overall performance and riding experience.

Technical specifications

• Brand: Andrews
• Grind: EV3
• Type: Chain
• Intake Duration: 238°
• Intake Lift: 0.495"
• Intake Lobe Centerline: 98°
• Intake Open: 21°
• Intake Close: 37°
• Intake Lift at TDC: 0.197"
• Exhaust Duration: 238°
• Exhaust Lift: 0.495"
• Exhaust Lobe Centerline: 104°
• Exhaust Open: 43°
• Exhaust Close: 15°
• Exhaust Lift at TDC: 0.159"

Important to know

Installation requires checking coil bind, valve-to-valve clearance, and valve-to-piston clearance to ensure proper operation and prevent damage.
