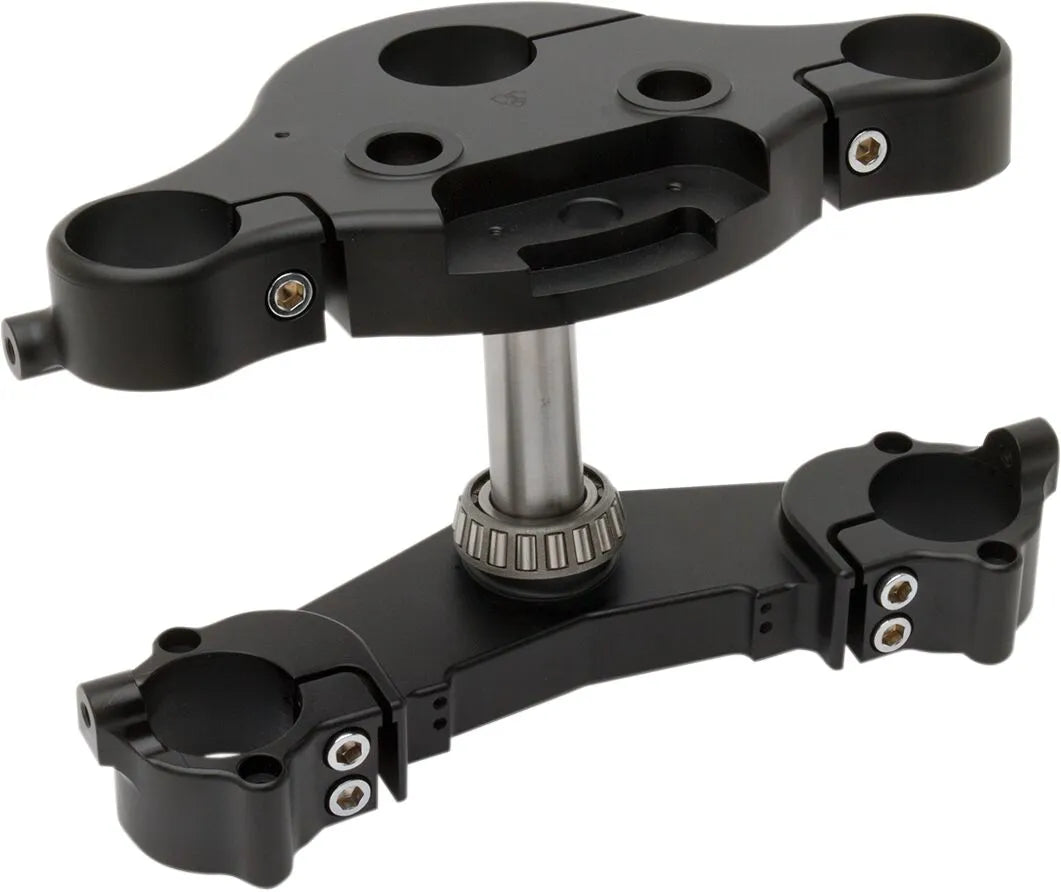

Arlen Ness Raked Triple Tree - Black - 20-389

Upgrade your motorcycle's handling and aesthetics with the Arlen Ness 7° Raked Triple Tree. This kit is engineered to provide superior control and a distinctive look, perfect for enthusiasts seeking enhanced performance.

Description

The Arlen Ness 7° Raked Triple Trees are designed to deliver exceptional handling when paired with 21" or 23" wheels. By incorporating 7" of rake while maintaining a 7" trail, these triple trees ensure optimal stability and maneuverability. These triple trees eliminate the need for frame modifications, streamlining the installation process. Machined from forged 6061-T6 billet aluminum and finished with a sleek black anodize, these triple trees offer both durability and style. The kit is designed to work with Batwing style fairings, maintaining their stock position without requiring angled headlight wedges or special brackets for headlight adjustment. For '14-'16 models, Arlen Ness includes travel limiters for added safety. These raked triple trees will transform the handling characteristics of your motorcycle, so use caution and familiarize yourself with the changes after installation.

Features & highlights

• Provides 7° of rake and maintains a 7" trail for superior handling with 23" wheels.
• Optimized for use with 21" wheels, providing 6-1/8" of trail for enhanced stability.
• Machined from forged 6061-T6 billet aluminum for maximum strength and durability.
• Black anodized finish offers a sleek, custom look.
• Maintains stock position of Batwing style fairings, eliminating the need for additional brackets or wedges.
• Includes travel limiters for '14-'16 applications, improving safety and control.
• No frame modifications necessary for installation.

Technical specifications

• Brand: Arlen Ness
• Product Name: Triple Tree
• Material: Forged 6061-T6 Billet Aluminum
• Color/Finish: Black Anodize
• Rake Degree: 7°
• For Wheel Size: 21", 23"
• Units: Kit

Important to know

This kit is designed for use with 21" and 23" wheels only; it will not function correctly with factory diameter wheels. Always check lower tree to fender clearance. Larger wheels reduce fork travel. The kit includes top and bottom tree, pressed in steel stem, and lower fork bearing. Raked triple trees change the handling characteristics of the motorcycle. Use caution until familiar with the changes.
