Axel Joost Elektronik Elektronikbox Version B – Electric & Light

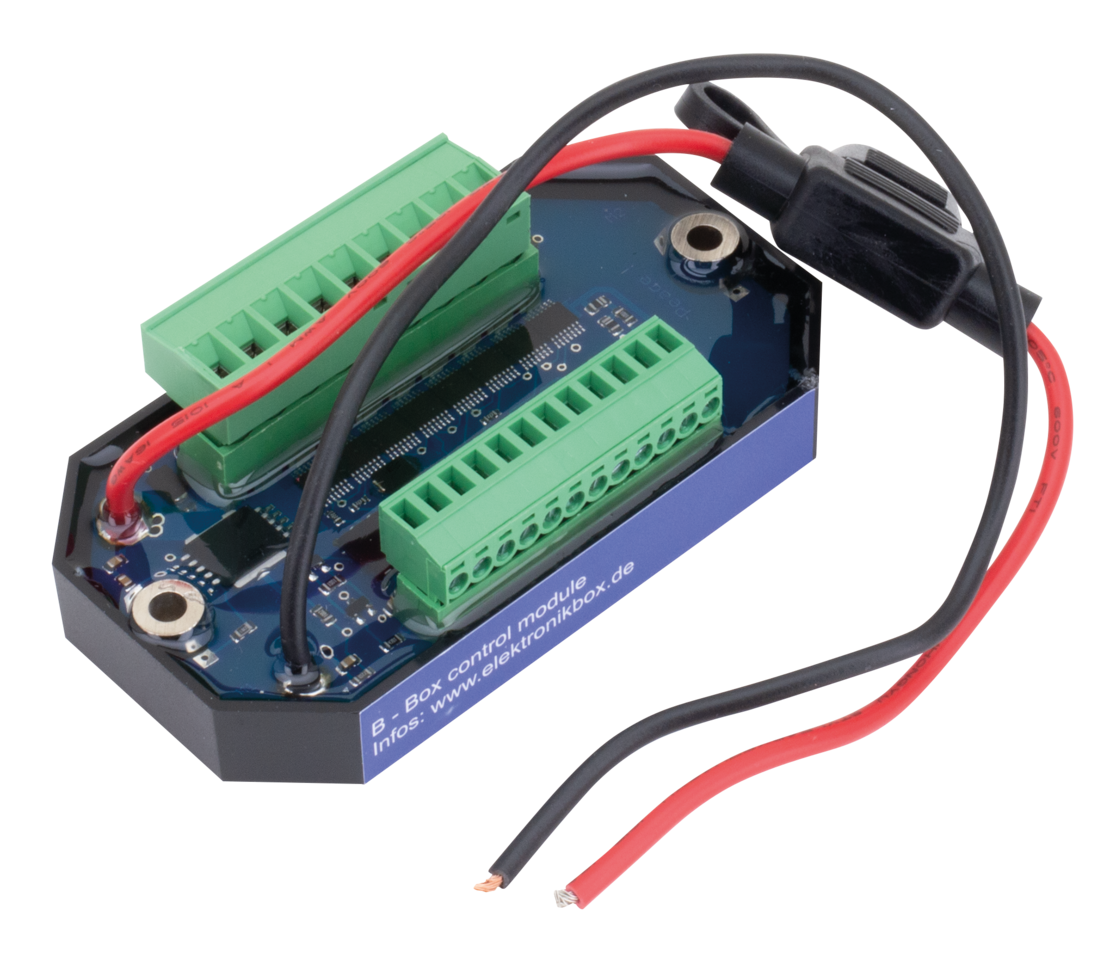

The ElektronikBox Version B or B-Box is a trick little box that takes away all the headaches when wiring a custom motorcycle. The B-Box can be controlled with the standard ignition switch. Eight implemented status leds allow a fast check while installing the B-Box or when adjusting the different functions. Comes with a 20 Amp inline fuse integrated in the main line. The outputs are also short circuit protected and self-resetting.

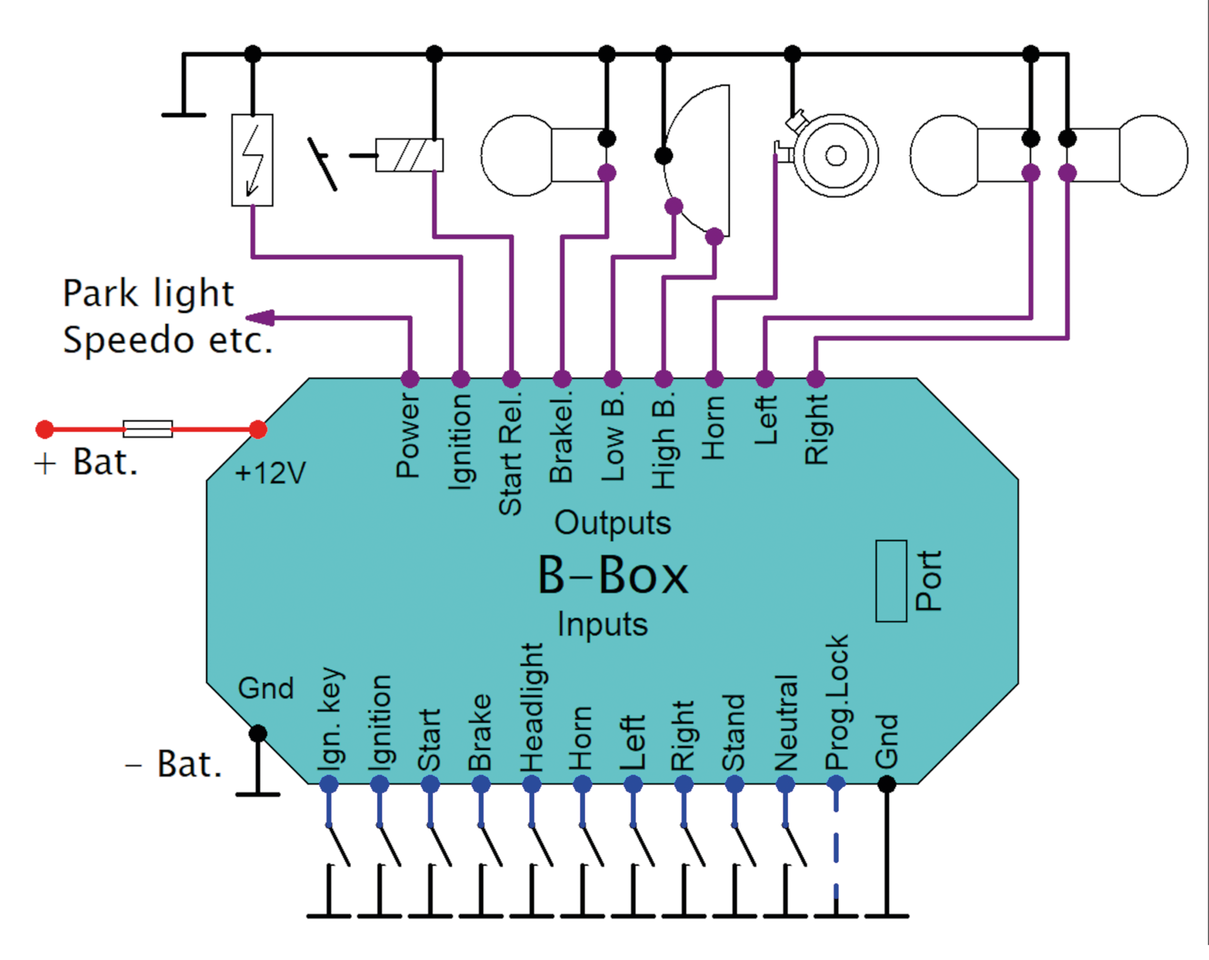

The B-Box allows you to control the following functions:
● Switch: output for parking light, license plate light, speedo light and so on
● Ignition with or without side stand switch control
● Starter with or without neutral switch control
● Headlight with button or switch control
● Integrated, load independent turn signal relay for use with push button or latch type switches
● Brake light with flasher option
● Horn

Specifications:
● Dimensions: 92mm x 50mm x 36mm (3 5/8"x2"x1 1/4")  including connector terminals
● Body material: Black shock resistant ABS plastic, waterproof cast
● Main connections: 2.5mm2 (14AWG)
● Power consumption in standby: as less as 0.2 milli Amp.
● Maximum temperature: 80 degrees Celsius
● Maximum output current: 5 Amp.
● Input voltage range: 7-18 Volt
● Maximum current: 20 Amp.

The B-Box comes with easy to follow installation instructions. Please note that the current available B-Boxes do not have the RFID (Radio Frequency IDentification) switch option.

Elektronikbox B-Box

Electronicbox Version B

• Category: Wiring Harnesses & Modules
