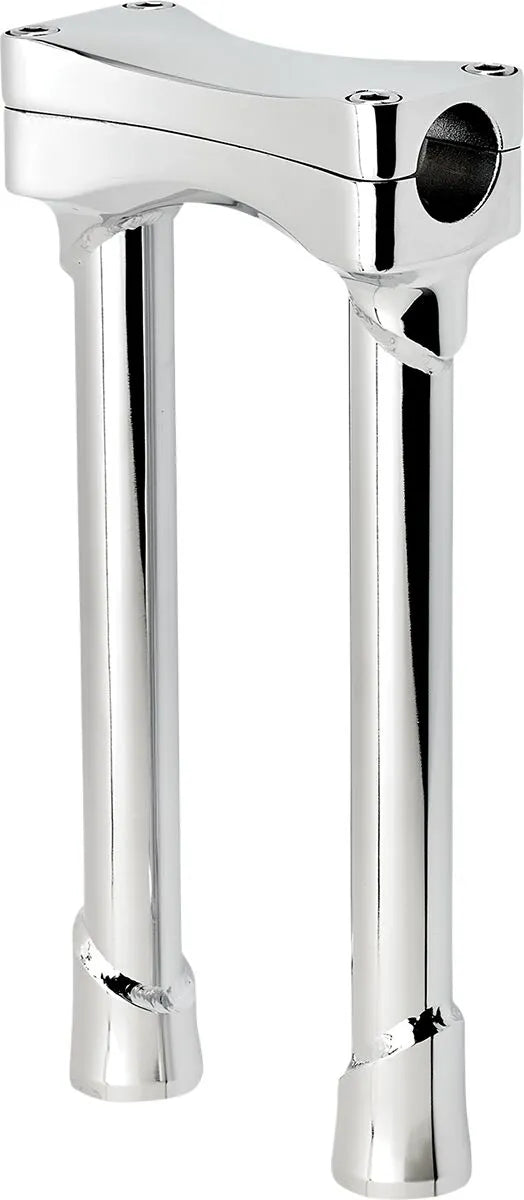

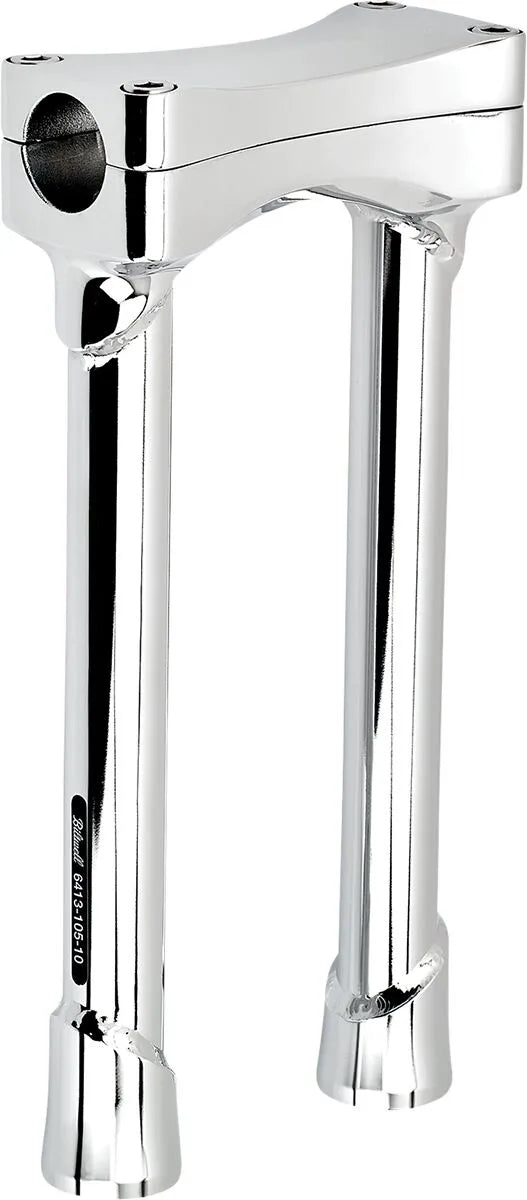

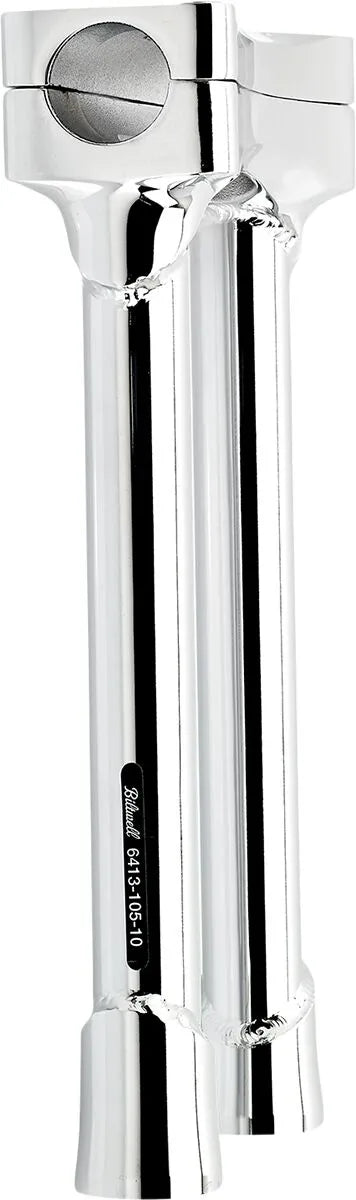

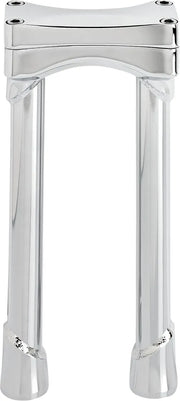

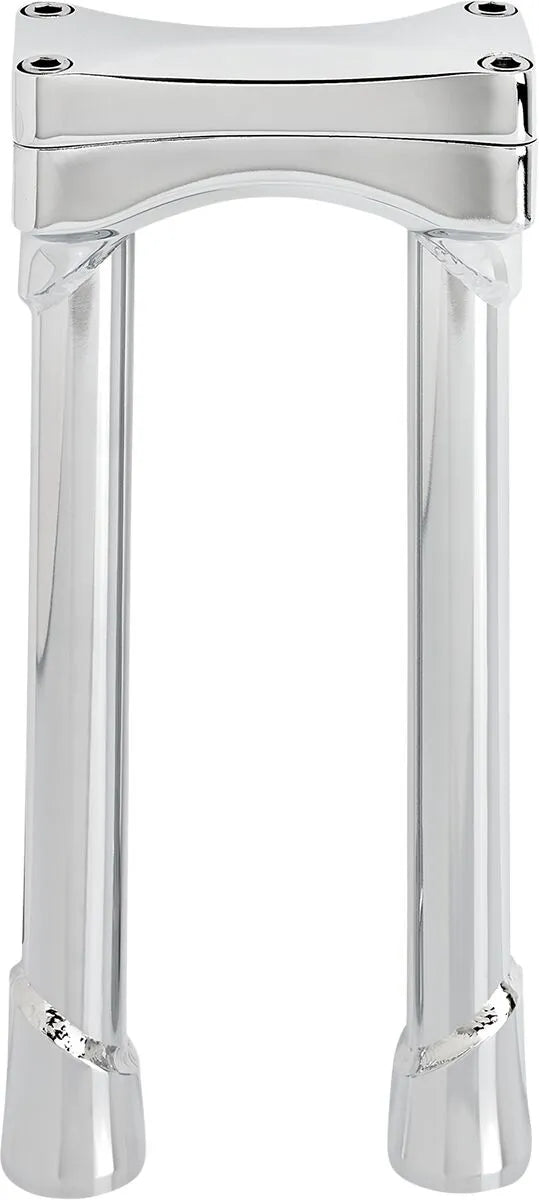

Biltwell Murdock O/S Risers - 10" - Chrome - 1-1/8" Bar
Product info
- Item number
- 06021115
- Manufacturer number
- 6413-105-10
- Position
Upgrade your motorcycle's handlebar setup with the Biltwell Murdock O/S Risers. These high-quality risers combine strength, style, and adjustability, making them ideal for riders seeking enhanced control and a custom look. With their robust construction and sleek chrome finish, the Murdock risers provide a secure and stylish foundation for your handlebars.
Description
The Biltwell Murdock O/S Risers are meticulously crafted from investment-cast steel and 4130 chromoly, ensuring exceptional durability and performance. The one-piece steel bar clamp securely accommodates 1-1/8" O.D. handlebars. CNC lathe-turned mounting bases are designed to accept 1/2-13 t.p.i. stock and aftermarket mounting hardware, providing versatile installation options. These risers feature mounting holes on 3.5" centers, making them compatible with most stock and select aftermarket H-D fork trees. The mandrel-bent uprights offer a 2" pullback, reducing reach for shorter riders and improving overall comfort. Each riser is TIG welded, hand-polished, and finished with a gleaming chrome plating. Stainless-steel 5/16-18 t.p.i. bar clamp hardware ensures secure and reliable handlebar clamping. Elevate your riding experience with the Biltwell Murdock O/S Risers, combining superior craftsmanship with a touch of classic style. These 10" risers are sold as a pair.
Features & highlights
- Investment-cast steel bar clamp accepts 1-1/8" O.D. handlebars for a secure hold.
- Constructed from durable 4130 chromoly steel for long-lasting performance.
- CNC lathe-turned mounting bases fit 1/2-13 t.p.i. hardware for easy installation.
- 3.5" center mounting holes are compatible with most H-D fork trees.
- 2" pullback design reduces reach and enhances rider comfort.
- TIG welded and hand-polished for a seamless, high-quality finish.
- Features a bright chrome finish for a classic, custom look.
Technical specifications
- Brand: Biltwell
- Product Name: Riser
- Type: Handlebar
- Finish: Chrome
- Base Color: Silver
- Material: Steel
- Clamping Diameter: 1-1/8" (28.6 mm)
- Rise: 10" (25.5 cm)
- Pullback: 0" (0 mm)
Important to know
Mounting hardware is not included. Ensure compatibility with your motorcycle's fork trees and handlebar dimensions before purchasing.
- Brand
- BILTWELL
- Vendor part number
- 6413-105-10
- Product name
- Riser
- Pullback
- 0 mm (0")
- Rise
- 25,5 cm (10")
- Clamping diameter
- 28,6 mm (1-1/8")
- Finish
- Chrome
- Material
- Steel
- Type
- Handlebar
- Base color
- Silver
- Units
- Pair
