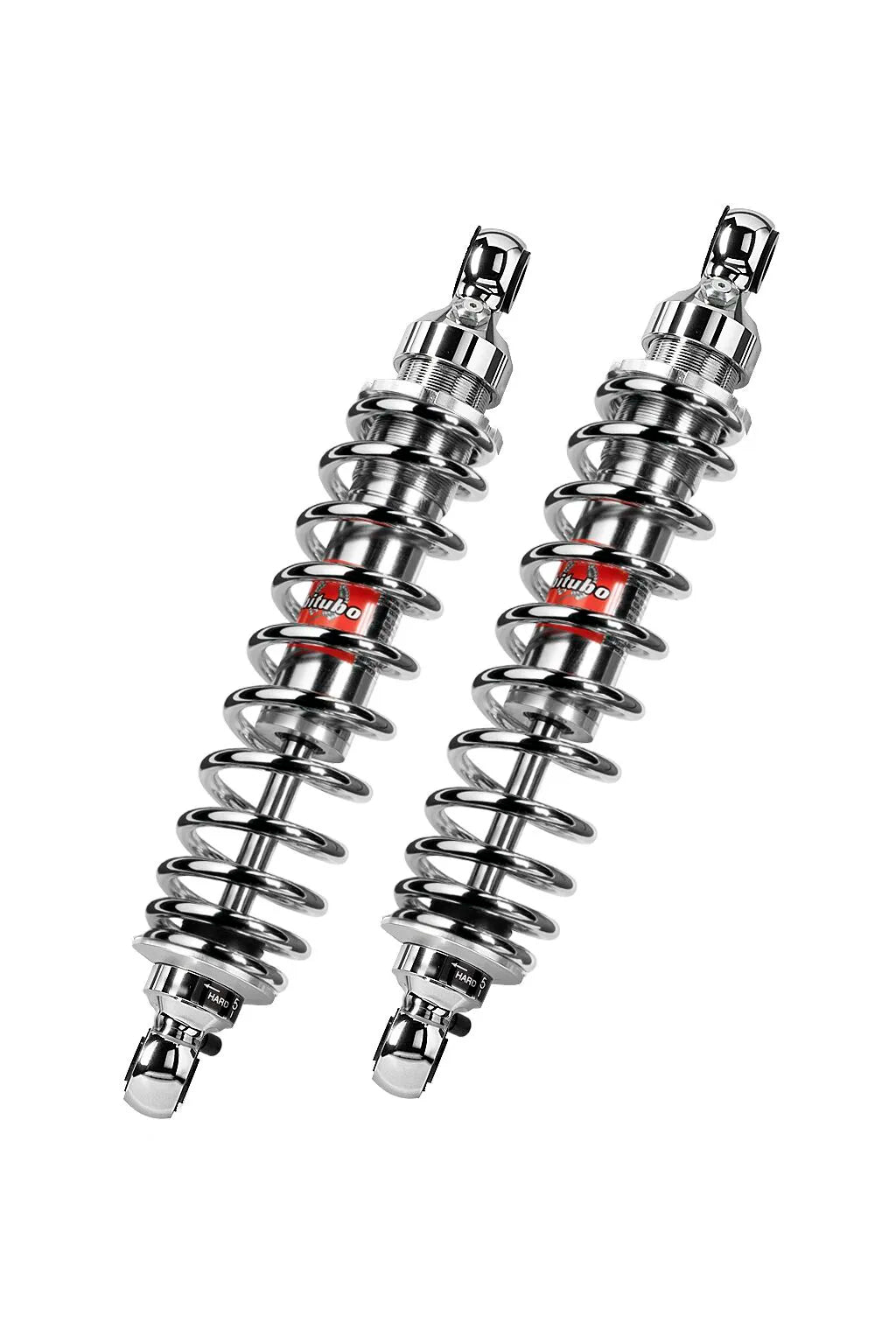

Bitubo WME Series Shocks - 11.75" - Chrome - HD026WME03
Product info
- Item number
- 13101634
- Manufacturer number
- HD026WME03
- Position
- Length
- 11.75" (298 mm)
- Adjustment
- Preload · Rebound
- Spring type
- Linear
Upgrade your Harley-Davidson's suspension with the Bitubo WME Series Rear Shocks. These high-performance shocks deliver superior handling and comfort, whether you're riding solo or with a passenger. Experience enhanced control and a smoother ride with these premium-quality shocks.
Description
The Bitubo WME Series Rear Shocks are engineered for optimal performance and durability. Constructed from 7075-T6 aircraft aluminum, these shocks feature a wet-born piston rod and self-adjusting bearing for smooth operation. The radial piston design, with straight flow and preload through a pre-combustion oil chamber, ensures optimum response. An anti-block system, equipped with a separate over-pressure valve, prevents hydraulic lock, while the anti-fading damping system maintains consistent performance. With 50 clicks of rebound adjustment and 30 clicks of compression adjustment, you can fine-tune the shocks to your exact preferences. The progressive spring and threaded spring preload adjuster allow for further customization, making these shocks ideal for solo riders and occasional two-up riding. Spring load can be adjusted to suit individual needs.
Features & highlights
- Crafted from high-performance 7075-T6 aircraft aluminum for maximum strength and minimal weight.
- Features a radial piston with straight flow to deliver exceptional responsiveness and control.
- Anti-block system prevents hydraulic lock, ensuring consistent damping performance.
- Anti-fading damping system maintains optimal performance under demanding conditions.
- Offers adjustable rebound and compression damping, allowing for precise tuning to rider preferences and conditions.
- Progressive spring design provides a comfortable ride while maintaining excellent handling.
- Threaded spring preload adjuster enables easy adjustment for varying rider weights and load conditions.
Technical specifications
- Brand: Bitubo S.R.L.
- Product Type: Shock Absorber
- Mounting Position: Rear
- Type: Coilover Monotube
- Damping Method: Gas Charged
- Adjustment Type: Adjustable Rebound Damping, Adjustable Spring Preload
- Adjustment Style: Manual
- Spring Type: Single Linear Rate
- Material: Aluminum, Steel
- Color/Finish: Chrome
- Units: Pair
Important to know
Please check the part's description and specifications for the individual details to ensure proper fitment and compatibility with your motorcycle.
- Brand
- BITUBO S.R.L.
- Vendor part number
- HD026WME03
- Color finish
- Chrome
- Product name
- Shock Absorber
- Mounting position
- Rear
- Material
- Aluminum, Steel
- Type
- Coilover Monotube
- Units
- Pair
