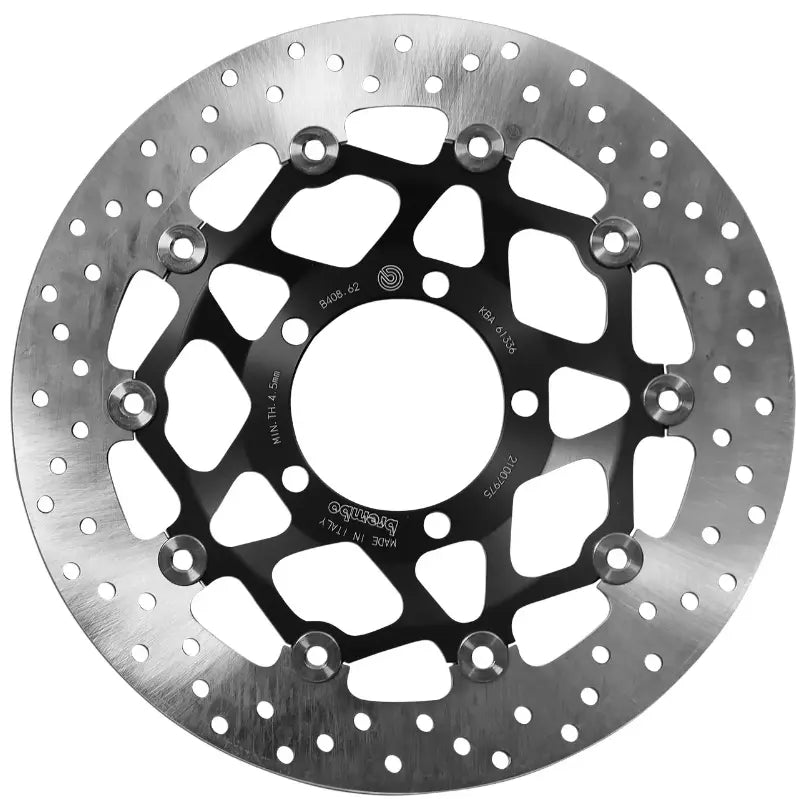

Brembo Front Brake Disc - 308mm - Floating - Round - 5mm - 78B40862
Product info
- Item number
- 17105096
- Manufacturer number
- 78B40862
- Position
Upgrade your braking performance with the Brembo Serie Oro Brake Rotor. This high-performance rotor is designed as a direct replacement for your original equipment, ensuring a seamless fit and enhanced stopping power. The Serie Oro series represents Brembo's entry into the racing world, quickly establishing itself as the industry benchmark for brake discs.
Description
The Brembo Serie Oro Brake Disc features a stainless steel braking band connected to a CNC-machined and anodized aluminum alloy hub using drive pawls. Brembo's extensive experience defines the optimal geometries, tolerances, and dimensions for various motorcycle types and applications. A specific study of machining tolerances ensures the special conformation of Brembo discs allows for more effective transmission of braking torque. This design also offers superior resistance to both thermal and mechanical stress, providing consistent and reliable performance in demanding conditions. The floating design further enhances heat dissipation and reduces the risk of warping. Optimize your braking system with the Brembo Serie Oro Brake Rotor for improved safety and control.
Features & highlights
- Direct replacement for original equipment brake discs.
- Stainless steel braking band provides excellent stopping power and durability.
- CNC-machined and anodized aluminum alloy hub for reduced weight and enhanced aesthetics.
- Floating design improves heat dissipation and reduces the risk of warping.
- Optimized geometries and tolerances ensure effective braking torque transmission.
- Superior resistance to thermal and mechanical stress for consistent performance.
- Drilled braking surface for enhanced wet-weather performance and heat dissipation.

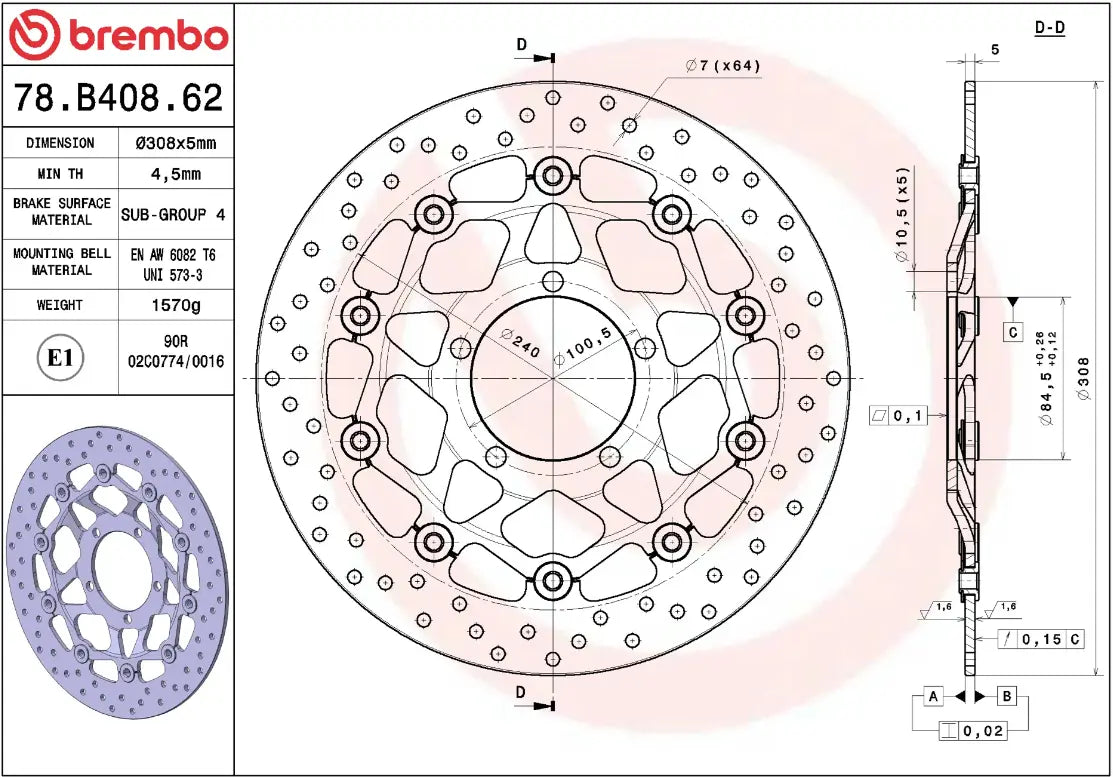

Technical specifications
- Fits Front
- Brand: Brembo
- Product Name: Brake Rotor
- Type: Two Piece (Floating)
- Material: Aluminum Alloy, Stainless Steel
- Color/Finish: Black, Silver, Stainless Steel
- Outside Diameter: 308 mm (12-1/8")
- Inside Diameter: 84.5 mm (3-21/64")
- Thickness: 5 mm (3/16")
- Bolt Pattern: 5 Hole
- Bolt Hole Circle: 100.5 mm
- Braking Surface: Drilled
Important to know
Sold individually.
- Brand
- BREMBO
- Vendor part number
- 78B40862
- Color finish
- Black, Silver, Stainless Steel
- Product name
- Brake Rotor
- Shape
- Round
- Thickness
- 5 mm (3/16")
- Outside diameter
- 308 mm (12-1/8")
- Inside diameter
- 84,5 mm (3-21/64")
- Material
- Aluminum Alloy, Stainless Steel
- Type
- Two Piece (Floating)
- Units
- Each
- Braking surface
- Drilled
- Bolt hole circle
- 100,5 mm
- Bolt pattern
- 5 Hole
