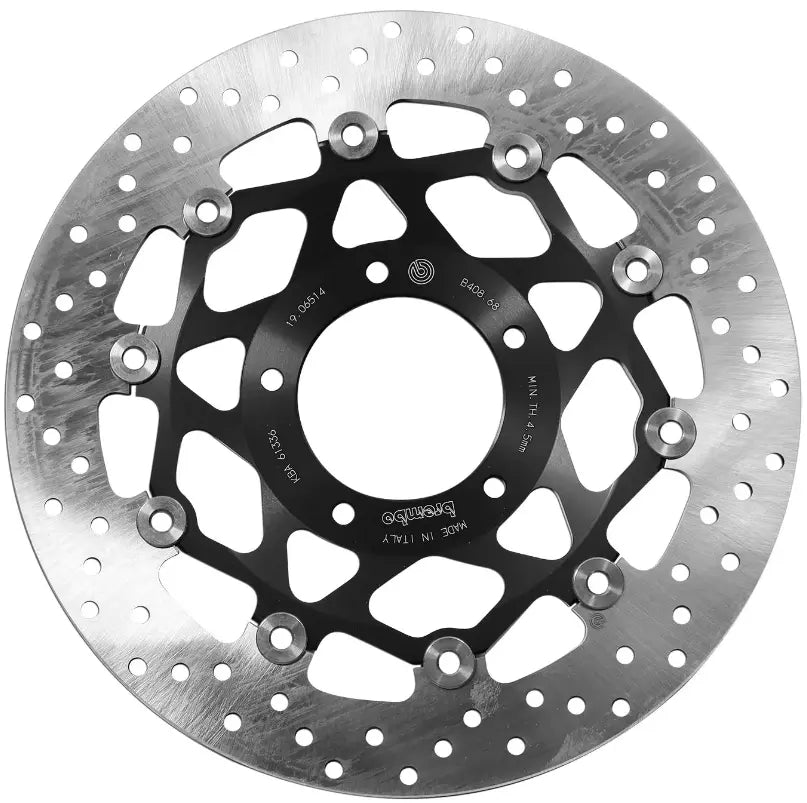

Brembo Front Brake Disc - 310mm - Floating - Round - 5mm - 78B40868
Product info
- Item number
- 17105101
- Manufacturer number
- 78B40868
- Position
Upgrade your braking performance with the Brembo Serie Oro Brake Rotor. This floating rotor is designed for superior stopping power and durability, making it an ideal choice for enthusiasts and professionals alike. Experience the difference that Brembo's racing heritage brings to your ride.
Description
The Brembo Serie Oro brake discs are fully interchangeable with original equipment brake discs, ensuring a seamless upgrade. The rotor features a stainless steel braking band connected to a CNC-machined and anodized aluminum alloy hub via drive pawls. Brembo's extensive experience has been used to define the most correct geometries, tolerances, and dimensions for all motorbike types and uses. A specific study of machining tolerances allows the special conformation of Brembo discs to transmit braking torque more effectively while offering better resistance to thermal and mechanical stress. The Serie Oro range, Brembo's entry into the racing world in the mid-1970s, quickly became the industry benchmark for discs. With a 310 mm outer diameter and a drilled braking surface, this rotor delivers exceptional performance and reliability. Improve your braking with the Brembo Serie Oro brake rotor.
Features & highlights
- Fully interchangeable with original equipment brake discs for easy installation.
- Stainless steel braking band offers superior stopping power and durability.
- CNC-machined and anodized aluminum alloy hub for reduced weight and enhanced aesthetics.
- Optimized geometries and tolerances for effective braking torque transmission.
- Enhanced resistance to thermal and mechanical stress for consistent performance.
- Drilled braking surface provides improved heat dissipation and wet-weather performance.
- Floating design minimizes distortion and ensures optimal pad contact.

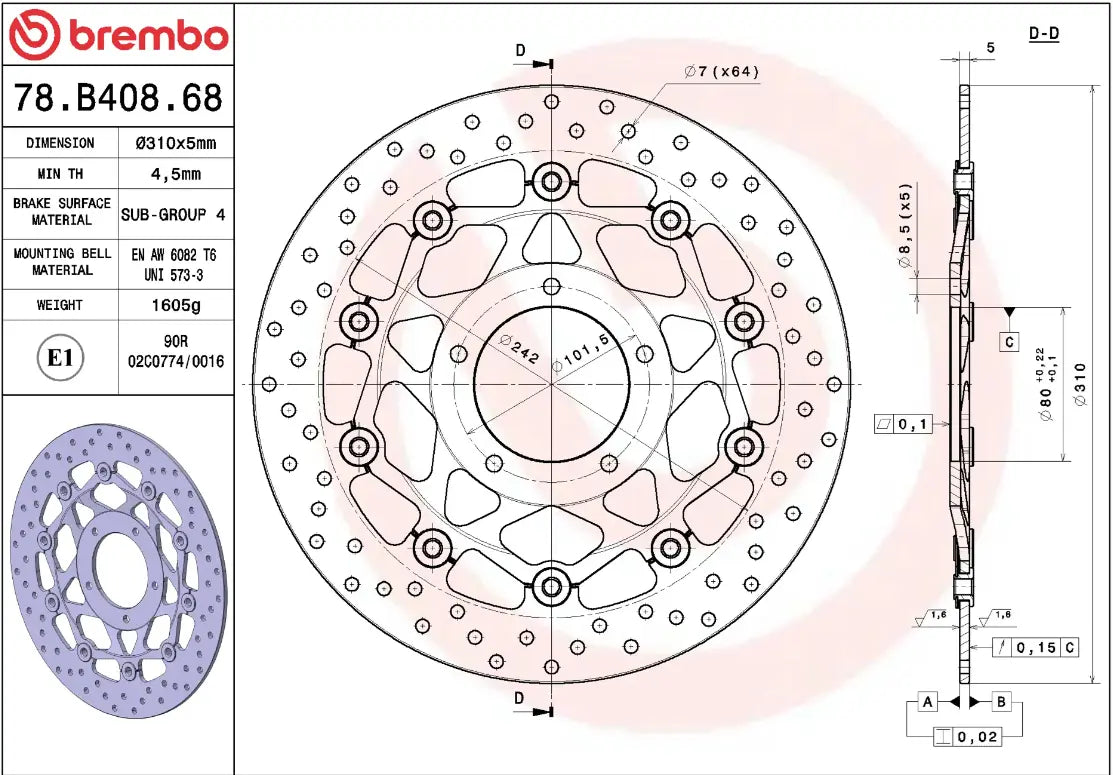

Technical specifications
- Fits Front
- Brand: Brembo
- Product Name: Brake Rotor
- Type: Two Piece (Floating)
- Outside Diameter: 310 mm (12-13/64")
- Inside Diameter: 80 mm (3-5/32")
- Thickness: 5 mm (3/16")
- Bolt Hole Circle: 101.5 mm
- Bolt Pattern: 5 Hole
- Braking Surface: Drilled
- Material: Aluminum Alloy, Stainless Steel
- Color/Finish: Black, Silver, Stainless Steel
Important to know
No specific requirements or limitations are listed for this product.
- Brand
- BREMBO
- Vendor part number
- 78B40868
- Color finish
- Black, Silver, Stainless Steel
- Product name
- Brake Rotor
- Shape
- Round
- Thickness
- 5 mm (3/16")
- Outside diameter
- 310 mm (12-13/64")
- Inside diameter
- 80 mm (3-5/32")
- Material
- Aluminum Alloy, Stainless Steel
- Type
- Two Piece (Floating)
- Units
- Each
- Braking surface
- Drilled
- Bolt hole circle
- 101,5 mm
- Bolt pattern
- 5 Hole
