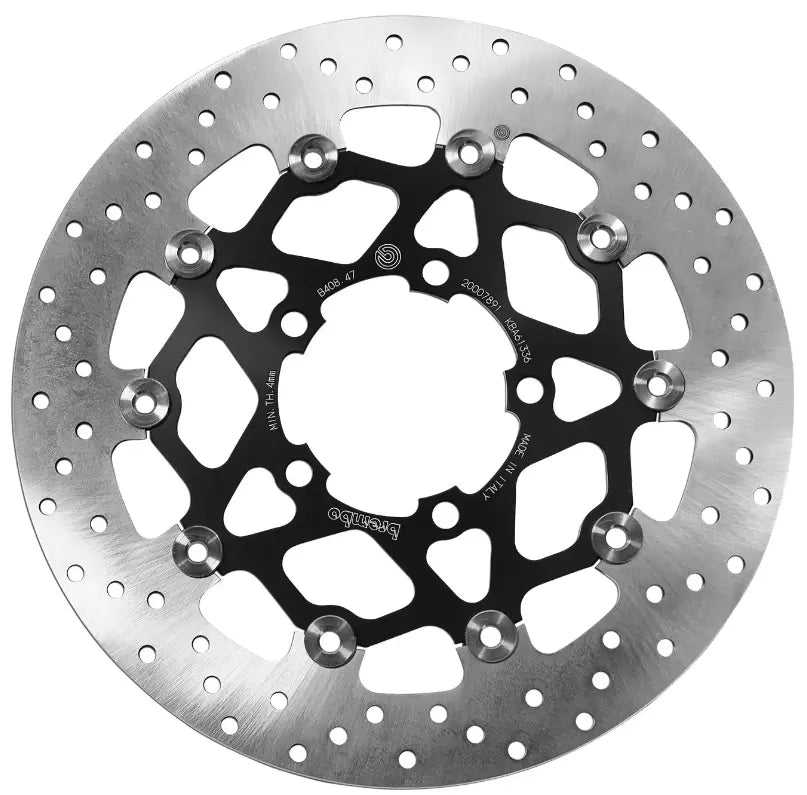

Brembo Serie Oro Floating Brake Rotor - Front
Product info
- Item number
- 17105090
- Manufacturer number
- 78B40847
- Position
Upgrade your braking performance with the Brembo Serie Oro Brake Rotor. Designed as a direct replacement for your original equipment brake disc, this rotor delivers enhanced stopping power and reliability on the road or track. Experience the Brembo difference with superior materials and construction.
Description
The Brembo Serie Oro Brake Discs feature a stainless steel braking band connected to a CNC-machined and anodized aluminum alloy hub using drive pawls. Brembo's extensive experience ensures optimal geometries, tolerances, and dimensions for various motorcycle types and applications. A specific study of machining tolerances allows the Brembo disc's unique conformation to transmit braking torque more effectively while providing superior resistance to thermal and mechanical stress. The Serie Oro line, Brembo's entry into the racing world in the mid-1970s, quickly became the industry benchmark for discs. This two-piece floating design further enhances heat dissipation and reduces weight for improved performance. The drilled braking surface provides superior bite and water dispersion.
Features & highlights
- Direct replacement for OE brake discs.
- Stainless steel braking band for durability and consistent performance.
- CNC-machined and anodized aluminum alloy hub for reduced weight and enhanced aesthetics.
- Floating design improves heat dissipation and minimizes distortion.
- Drilled braking surface offers enhanced bite and wet-weather performance.
- Superior resistance to thermal and mechanical stress.
- Proven Serie Oro design, a benchmark in braking technology.

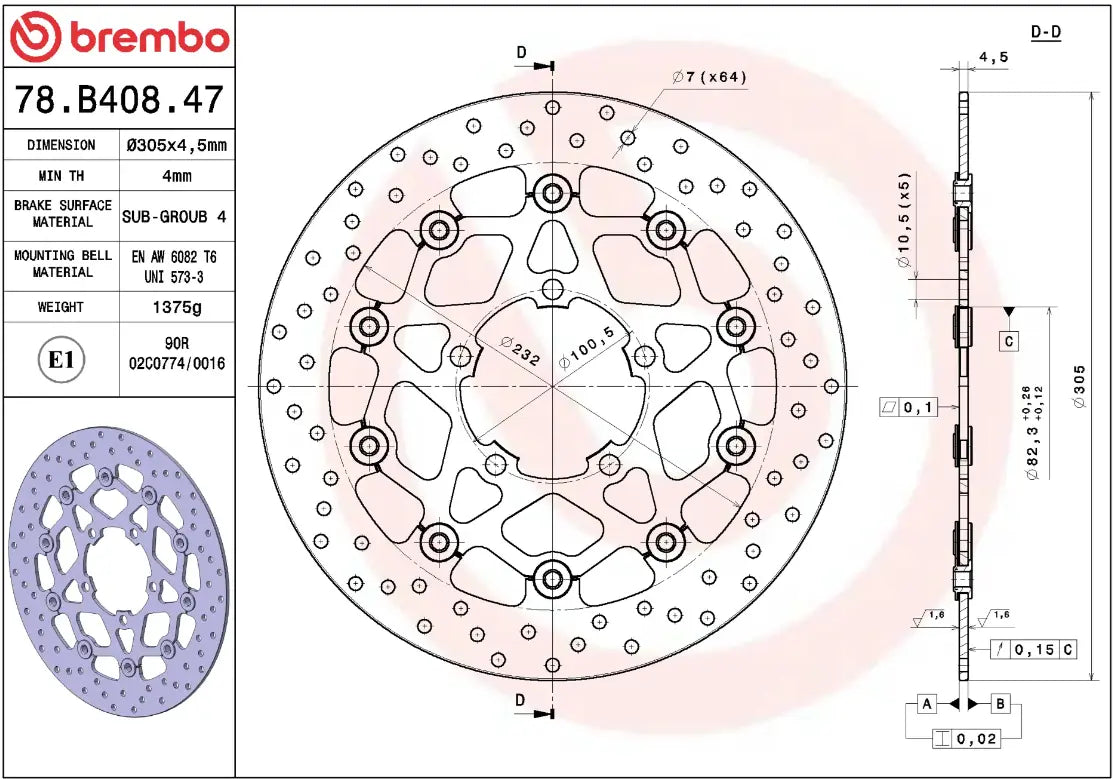

Technical specifications
- Fits Front
- Brand: Brembo
- Product Name: Brake Rotor
- Type: Two Piece (Floating)
- Outside Diameter: 305 mm (12")
- Thickness: 4.5 mm (1/4")
- Bolt Hole Circle: 100.5 mm
- Bolt Pattern: 5 Hole
- Braking Surface: Drilled
- Material: Aluminum Alloy, Stainless Steel
- Color/Finish: Black, Silver, Stainless Steel
Important to know
This is for a single brake rotor. Ensure compatibility with your motorcycle before installation. Professional installation is recommended.
- Brand
- BREMBO
- Vendor part number
- 78B40847
- Product name
- Brake Rotor
- Shape
- Round
- Thickness
- 4,5 mm (1/4")
- Outside diameter
- 305 mm (12")
- Material
- Aluminum Alloy, Stainless Steel
- Type
- Two Piece (Floating)
- Units
- Each
- Braking surface
- Drilled
- Bolt hole circle
- 100,5 mm
- Bolt pattern
- 5 Hole
