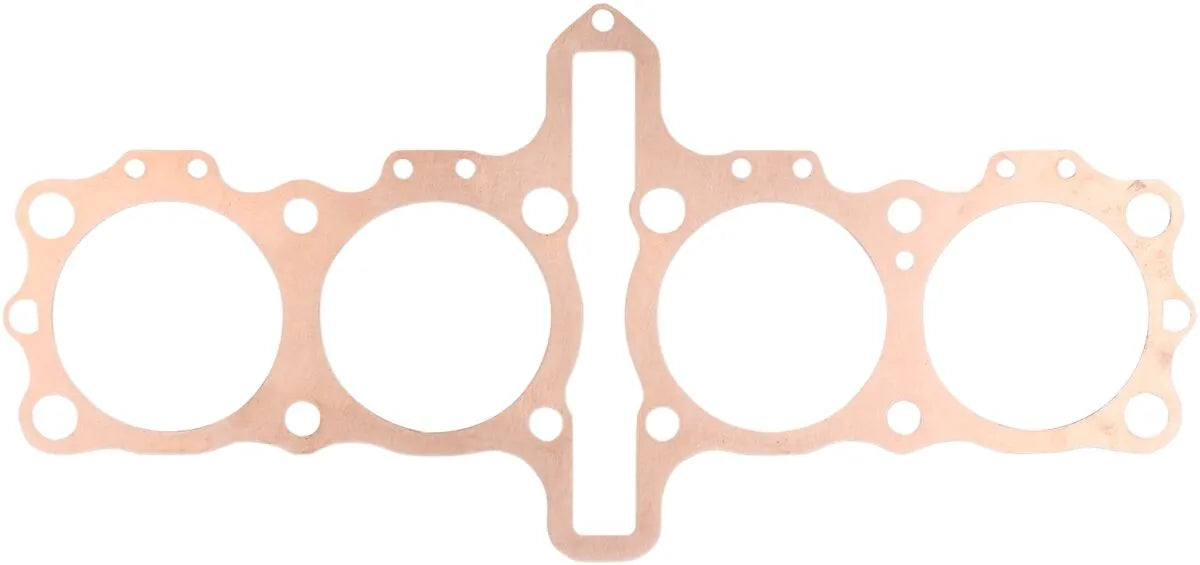

Cometic Cylinder Head Gasket - C8191

Maximize your engine's performance and sealing integrity with the high-quality Cometic 81mm bore cylinder head gasket. Engineered for 1216cc displacement engines, this gasket leverages advanced Multi-Layer Steel (MLS) technology to deliver superior reliability and power output, ensuring your motorcycle operates at its peak.

Description

The Cometic cylinder head gasket is meticulously designed to meet the rigorous demands of high-performance motorcycle engines. Utilizing cutting-edge Multi-Layer Steel (MLS) construction, these gaskets promote an even torque load across the entire sealing surface, significantly reducing bore distortion. This innovative design, featuring Load Control Embossments (LCE), ensures a better piston ring seal, which directly translates to more power and efficiency for your 1216cc engine. For applications where Single-Layer Steel (SLS) is utilized, the gasket features a robust stainless steel core combined with embossed outer surfaces, creating an exceptionally heavy-duty seal between the center steel layer and the mating surfaces.

The core or shim layer of these gaskets is crafted from uncoated stainless steel, offering the flexibility to vary thickness to accommodate diverse engine specifications and requirements. The outer layers are not only embossed but also coated on both sides with Viton. This advanced coating provides exceptional resistance in a variety of harsh sealing environments, under varying load conditions, and across different surface finishes, ensuring long-lasting durability and leak-free performance. Proudly Made in the USA, Cometic gaskets are a testament to quality materials developed for maximum performance tolerances and longevity.

Features & Highlights

• Advanced Multi-Layer Steel (MLS) Design: Engineered with Load Control Embossments (LCE) to ensure an even torque load, minimizing bore distortion and enhancing sealing.
• Optimized Engine Performance: Promotes a superior piston ring seal for increased power output and engine efficiency.
• Durable Stainless Steel Construction: Features a robust stainless steel core (for SLS) and Multi-Layer Steel composition for exceptional strength and longevity.
• Viton Coated Outer Layers: Embossed and coated on both sides with Viton to withstand harsh sealing environments, high loads, and various surface finishes.
• Customizable Thickness: Uncoated stainless steel center/shim layer allows for varied thickness to precisely meet specific engine requirements.
• Precision Engineering: Designed for an exact 81.00 mm bore, ensuring a perfect fit and reliable seal for your 1216cc engine, without dowel pins.
• American Made Quality: Manufactured in the USA, guaranteeing high standards of material quality and precision craftsmanship.

Technical Specifications

• Type: Cylinder Head
• Units: Each
• Material: Multi-Layer Steel (MLS) / Single-Layer Steel (SLS) with Stainless Steel Core
• Bore Size: 81.00 mm
• Thickness: 0.81 mm (0.032")
• Displacement: 1216 cc
• Features: With No Dowel Pins
