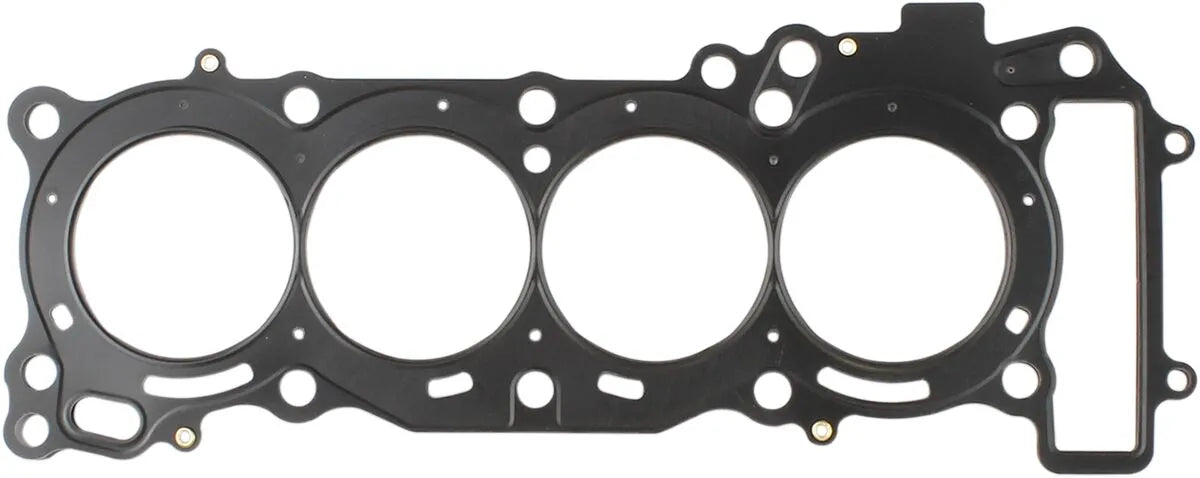

Cometic Cylinder Head Gasket - C8710-018

Achieve uncompromising engine sealing and performance with the Cometic MLS cylinder head gasket. Engineered with advanced multi-layer steel technology, this gasket is designed for maximum durability and an optimal seal, especially for 68.00mm bore applications.

Description

The Cometic MLS (Multi-Layer Steel) head gasket is a high-performance engine sealing gasket developed for demanding motorcycle applications. Utilizing advanced materials and precision engineering, this gasket promotes an even torque load across the entire sealing surface thanks to innovative Load Control Embossments (LCE). This design minimizes bore distortion, leading to a better piston ring seal and ultimately, more power for your engine. Crafted with a 68.00mm bore size and a precise 0.46mm (0.018") thickness, it provides a robust and reliable seal.

For specific needs, Single-Layer Steel (SLS) gaskets within the Cometic range feature a durable stainless steel core with embossed outer surfaces. These create a heavy-duty seal between the central steel layer and the mating surfaces of your engine components. The center or shim layer is made from uncoated stainless steel, allowing for variations in thickness to meet diverse requirements. The outer layers are meticulously embossed and coated on both sides with Viton, ensuring exceptional resistance and performance in a variety of harsh sealing environments, under various load conditions, and across different surface finishes. This commitment to quality and precision makes it an ideal choice for any high-performance build, proudly made in the USA.

Features & Highlights

• Advanced Multi-Layer Steel (MLS) Construction: Engineered for superior engine sealing and maximum performance tolerances, ensuring long-term reliability.
• Optimized Torque Distribution: Features Load Control Embossments (LCE) to promote an even torque load, reducing bore distortion and improving piston ring seal for enhanced power.
• Heavy-Duty Sealing Capability: Utilizes a robust stainless steel core and embossed outer surfaces to create a strong, reliable seal even in extreme conditions.
• Viton Coated Outer Layers: Embossed and coated on both sides with Viton, offering exceptional resistance to harsh sealing environments, varying load conditions, and diverse surface finishes.
• Customizable Thickness: The uncoated stainless steel shim layer allows for adjustments to accommodate multiple thickness requirements, providing application flexibility.
• Precision Engineered & Made in USA: Manufactured with meticulous attention to detail in the USA, guaranteeing high-quality materials and craftsmanship.

Technical Specifications

• Type: Cylinder Head
• Units: Each
• Features: With No Dowel Pins
• Material: MLS (Multi-layer Steel)
• Bore Size: 68.00 mm
• Thickness: 0.46 mm (0.018")
• Vendor Part Number: C8710-018

Important to Know

This Cometic cylinder head gasket is designed for installation without dowel pins. Please ensure your application is compatible with this feature, as dowel pins are not included with this product.
