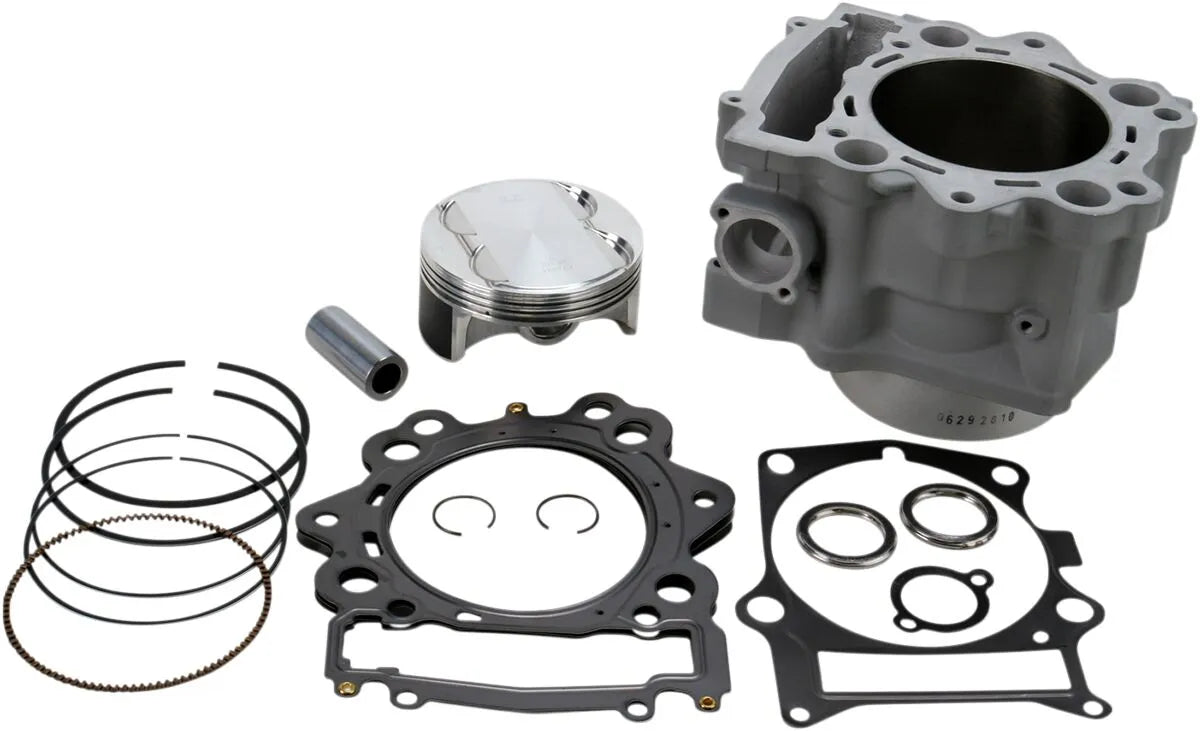

Cylinder Works 686cc High Compression Cylinder Kit

Upgrade your engine's performance with the Cylinder Works Standard Bore High Compression Cylinder Kit. This kit provides a direct bolt-on replacement that enhances power and reliability. Experience improved engine performance and longevity with this high-quality cylinder kit, designed for easy installation and lasting durability.

Description

The Cylinder Works Standard Bore High Compression Cylinder Kit delivers a significant boost in engine performance. The kit features a cylinder with nickel silicon carbide plating, ensuring long life and optimal heat transfer. Matched Vertex pistons are included to guarantee longevity, performance, and reduced engine noise. With an 11.0:1 compression ratio and a displacement of 686cc, this kit provides increased power and improved throttle response. The direct bolt-on design means no re-plating is required, and the cylinders look virtually identical to OEM cylinders. Installation is straightforward, making it an ideal upgrade for enthusiasts and professionals alike. Made in the USA, this kit offers superior quality and reliability.

Features & highlights

• Direct bolt-on cylinder requires no re-plating, simplifying installation.
• Includes matched Vertex pistons for enhanced longevity and reduced engine noise.
• Nickel silicon carbide-plated cylinder ensures long life and efficient heat transfer.
• High compression design (11.0:1) delivers increased power and improved throttle response.
• Complete kit includes all necessary components for a top-end rebuild.
• Made in the USA, ensuring high-quality materials and manufacturing.

Technical specifications

• Brand: Cylinder Works
• Part Number: 20004-K01HC
• Color/Finish: Gray
• Compression Ratio: 11.0:1
• Cylinder Bore Coating: Nickel-Silicon Carbide
• Cylinder Diameter: 102.00 mm
• Displacement: 686 cc
• Engine Type: 4-Cycle
• Overbore: Standard

Important to know

This kit includes the cylinder, piston, rings, pins, clips, and top-end gasket kit. Verify compatibility with your specific motorcycle model before installation.
