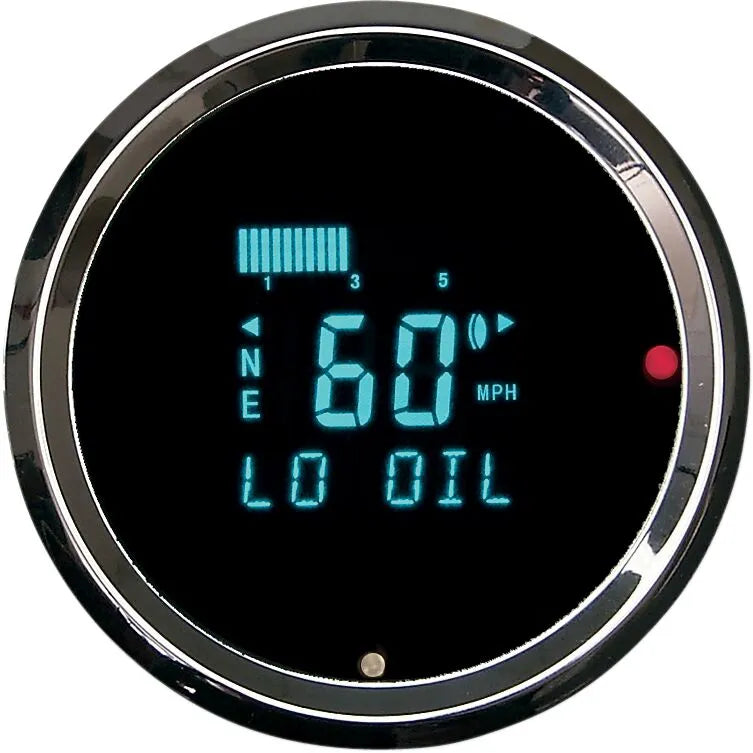

Dakota Digital 3016 Speedometer/Tachometer - 3-3/8" - mph - HLY-3016

Upgrade your motorcycle's instrumentation with the Dakota Digital 3016 Series digital speedometer/tachometer. This high-quality gauge provides stable, accurate, and easily viewable readings, enhancing your riding experience and providing critical information at a glance. The 3016 Series combines a speedometer and tachometer into a single, stylish unit.

Description

The Dakota Digital 3016 Series features a teal display that offers high-contrast visibility, even in direct sunlight. The gauge is housed in a machined aluminum housing with a chrome front bezel and a non-glare, scratch-resistant lens, ensuring durability and a premium look. The adjustable 255 mph speedometer can be easily calibrated for nearly any gearing and tire size combination using push-button calibration. The tachometer displays as a bar graph and features an adjustable shift point warning, ensuring optimal performance. Tachometer calibration is easily adjusted for combinations of one to 15 cylinders without using coils. The odometer includes two resettable trip meters, an hour meter, and a miles-to-service meter with warning. It also features turn signal, neutral, low oil pressure, low voltage, high beam, and security indicators. Performance calculations include high-speed recall, high RPM recall, 0-60 timer, and 1/4-mile time and speed. It displays “check engine” and “wait to start” lights. The gear position indicator works with 3- to 6-speed transmissions, and is automatic turn signal canceling compatible. This 3-3/8" speedometer/tachometer fits the 1996-2006 FLTR and FLHT fairings.

Features & highlights

• High-contrast teal display for excellent visibility, even in sunlight.
• Durable machined aluminum housing with chrome bezel and scratch-resistant lens.
• Adjustable 255 mph speedometer with push-button calibration for any gearing/tire size.
• Tachometer with bar graph display and adjustable shift point warning.
• Comprehensive odometer with dual trip meters, hour meter, and service meter.
• Extensive indicator lights: turn signal, neutral, oil pressure, voltage, high beam, security, check engine, and wait to start.
• Calculates and displays: high-speed recall, high RPM recall, 0-60 time, and 1/4-mile performance.

Technical specifications

• Brand: Dakota Digital
• Product Name: Gauge
• Type: Multi-Function
• Face Color: Black
• Readout Color: Blue
• Housing Color: Chrome
• Housing Material: Aluminum
• Outside Diameter: 3.375" (85 mm)
• Speedometer Calibration: 0-255 mph (0 kph - 410 kph)
• Tachometer Calibration: 0-13,000 RPM

Important to know

This 3-3/8" speedometer/tachometer is designed to fit 1996-2006 FLTR and FLHT fairings. Verify fitment before installation.
