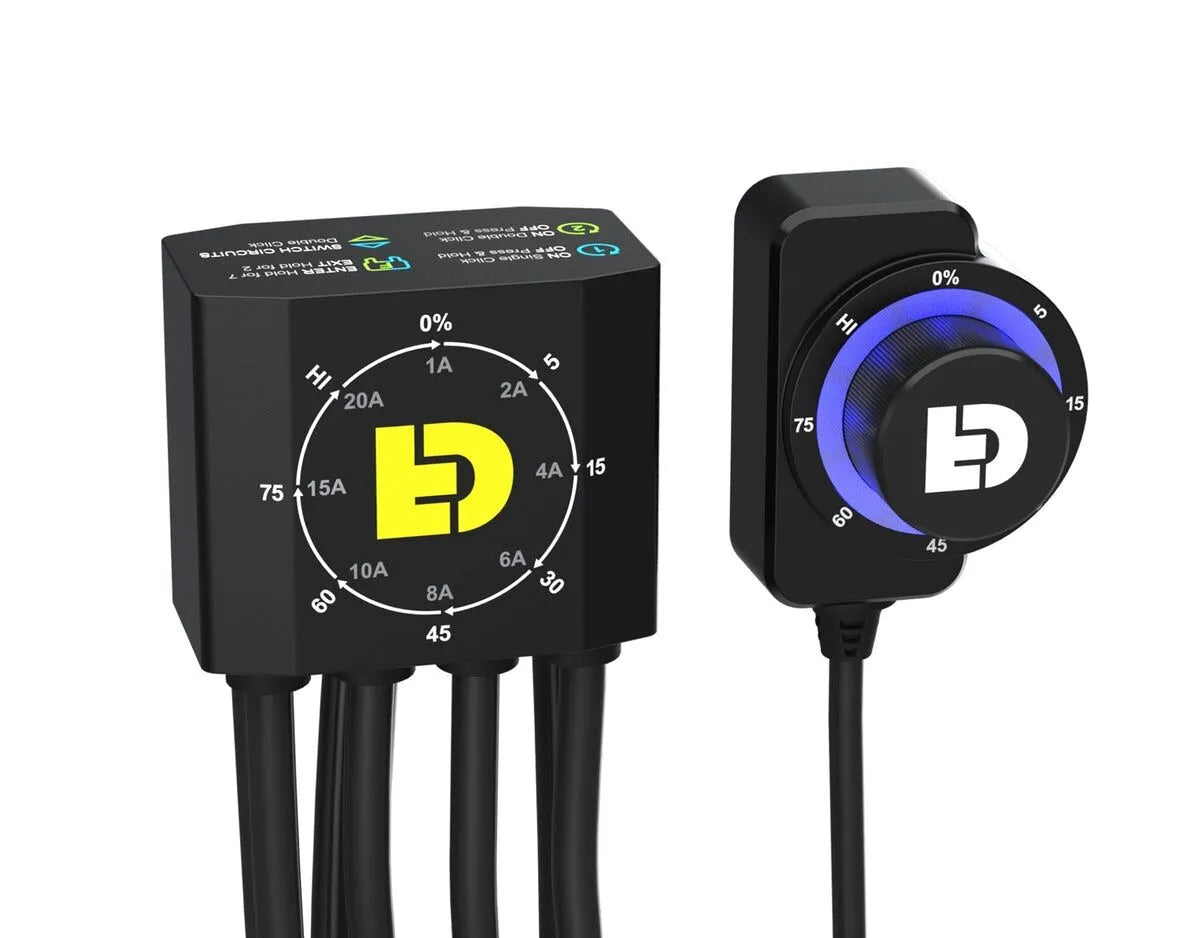

Denali DialDim Lighting Controller - Black - DNL.WHS.20500

Take command of your auxiliary lighting with the Denali DialDim Lighting Controller. This innovative controller gives you independent control over two sets of 3-wire auxiliary lights, all managed through a single, streamlined wiring harness. The multicolor LED halo switch displays your exact settings, providing effortless on-the-fly dimming.

Description

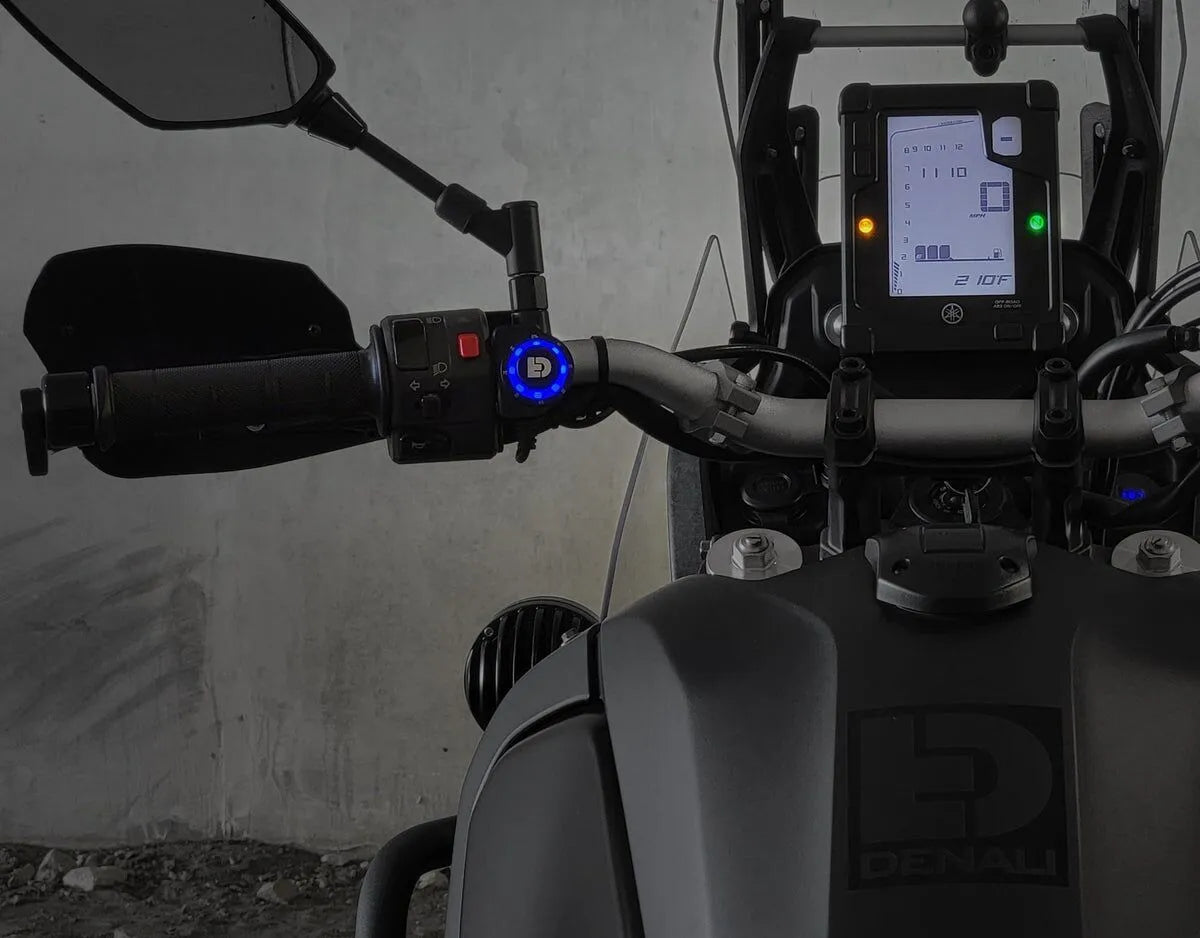

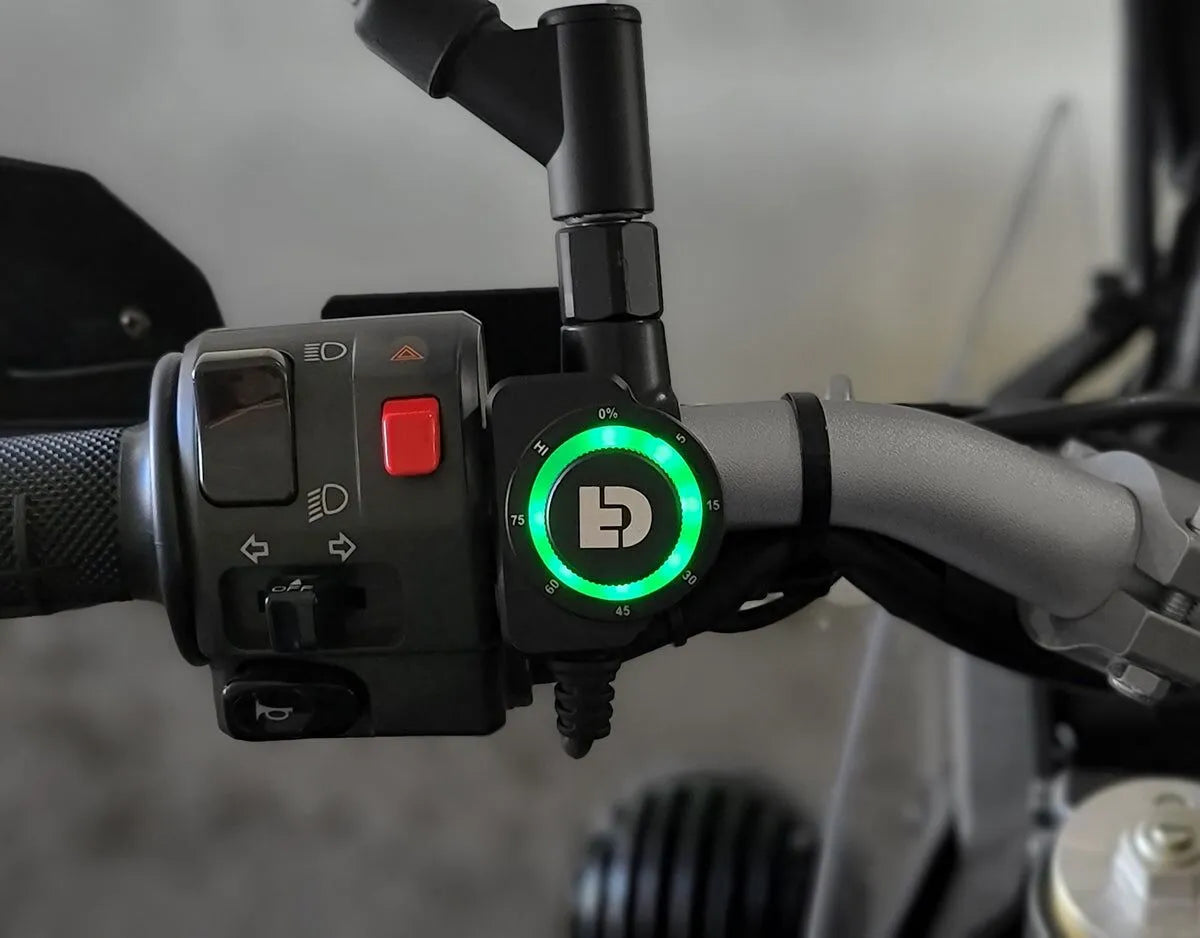

The DialDim controller simplifies your lighting setup and enhances safety. The blue halo controls light set one, while the green halo manages light set two. A simple double-click allows you to switch between circuits quickly. Unlock intelligent flash features using the high beam, turn signal, and horn inputs. Cancel auxiliary lights with your turn signal, flash them as turn signals, or strobe them when you sound the horn. With eight intensity levels per circuit, you can fine-tune your lighting for any condition. The integrated electronic fuses offer added protection, and the consolidated wiring simplifies installation, making the Denali DialDim the ultimate lighting control solution.

Features & highlights

• Independently control and dim two sets of 3-wire auxiliary lights.

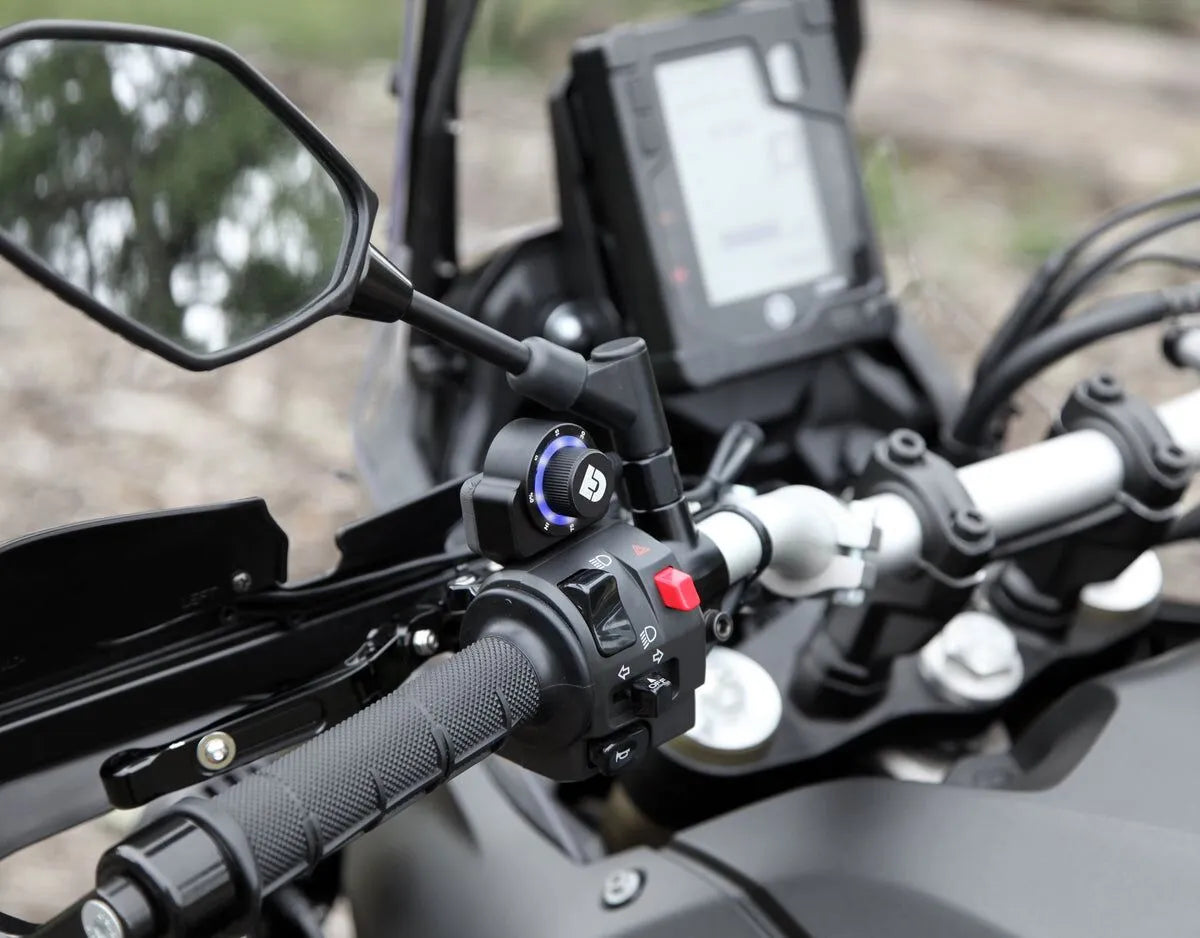

• LED halo switch displays exact settings for intuitive dimming.
• Intelligent flash features: cancel, flash, or strobe lights with vehicle signals.
• Eight intensity levels per circuit for precise lighting control (5%–100%).
• Electronic fuses protect circuits with selectable values (1A–20A).

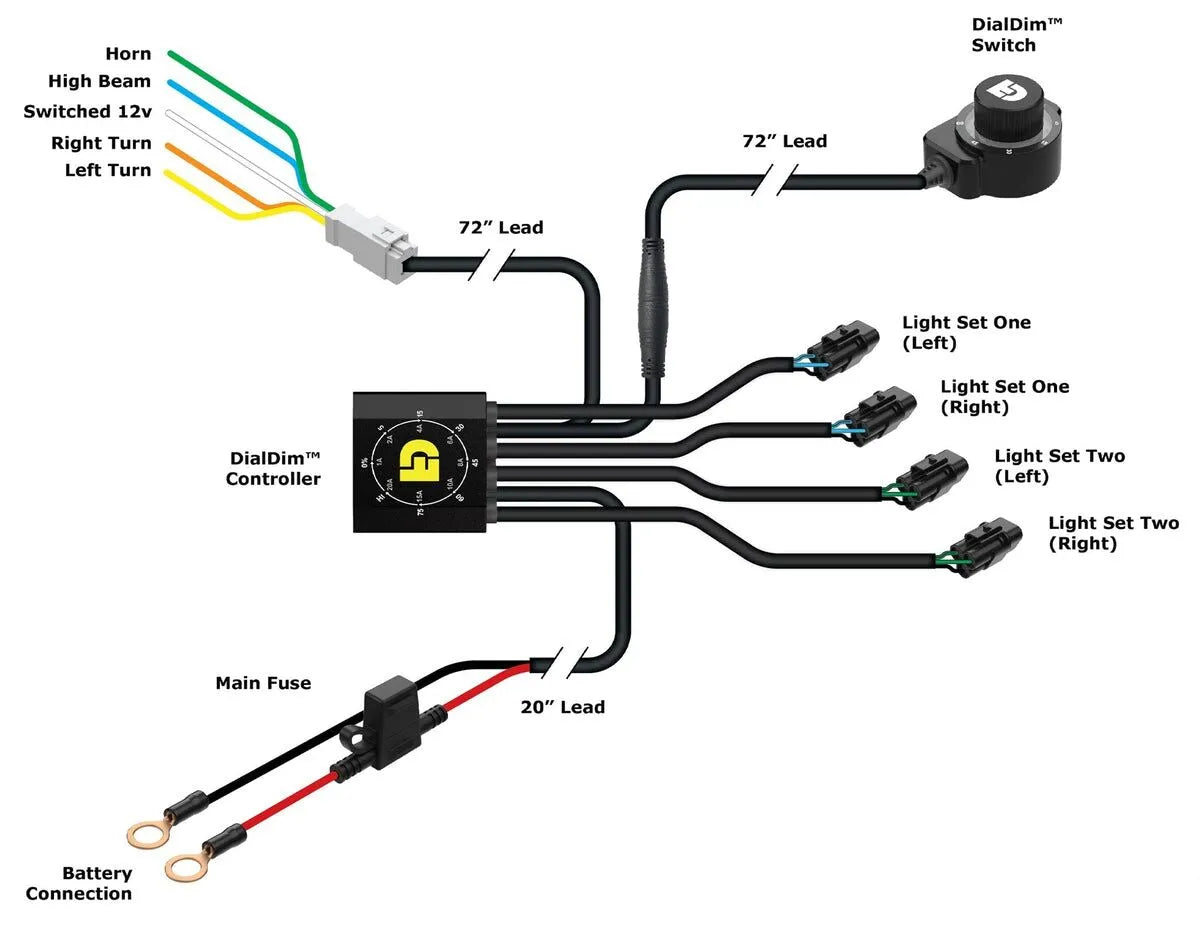

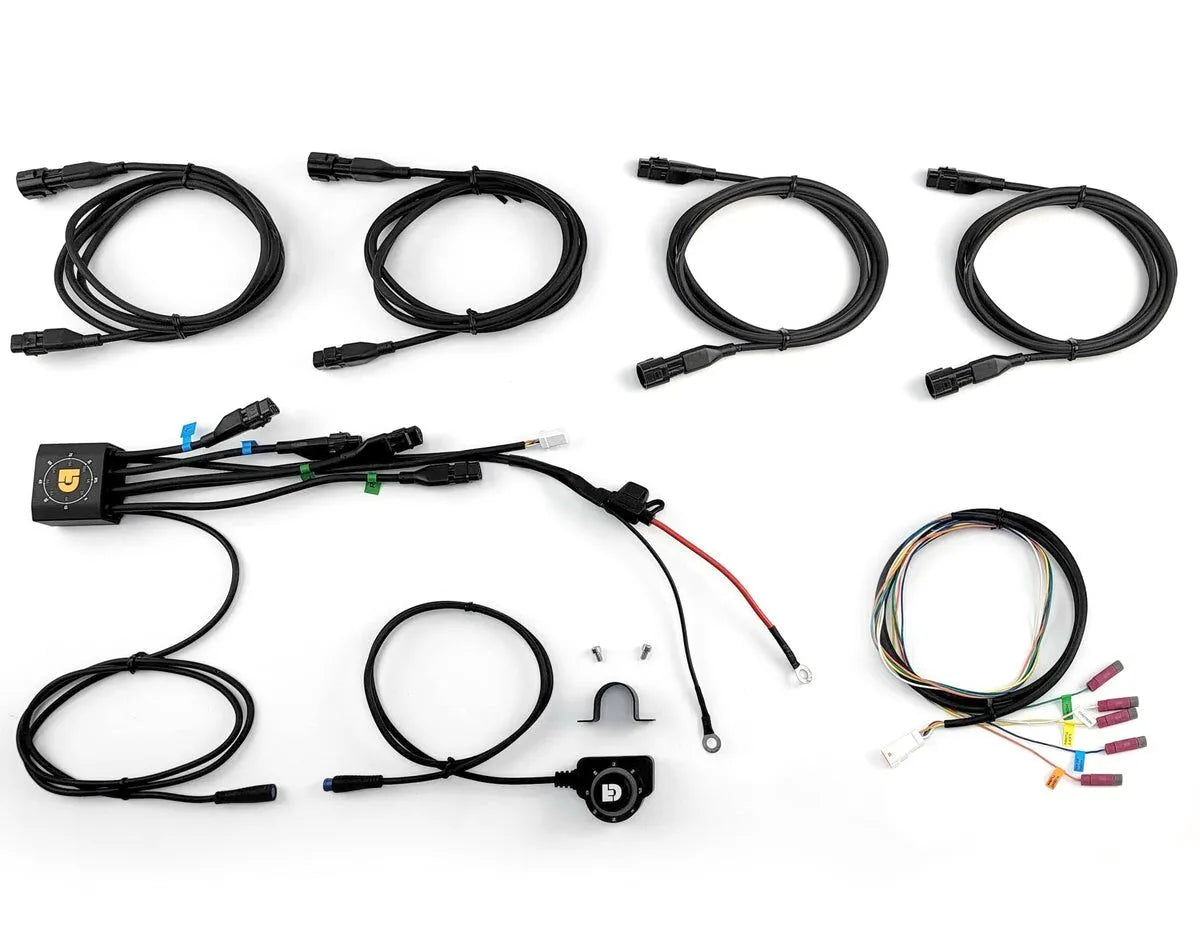

• Consolidated wiring harness simplifies installation.
• Waterproof design ensures reliable performance in all weather conditions.

Technical specifications

• Brand: Denali
• Product Name: Lighting Control Module
• Type: Accent Light, Remote
• Operating Voltage: 12 V
• Circuits: Two fully independent light circuits
• Intensity Levels: Eight per circuit (5%, 15%, 30%, 45%, 60%, 75%, 100%)

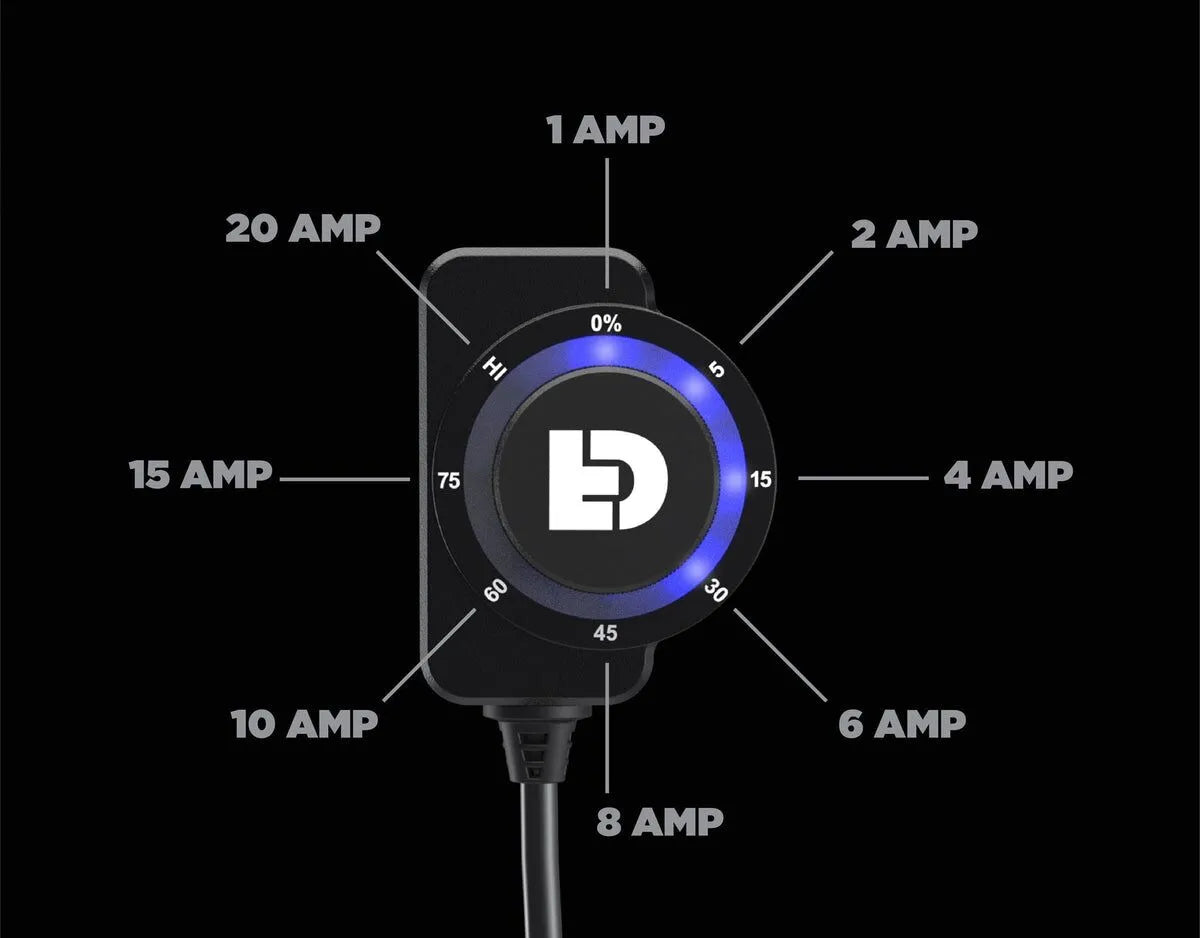

• Electronic Fuse Values: Eight values (1A, 2A, 4A, 6A, 8A, 10A, 15A, 20A)
• Feature Input Wires: Five (ignition, high beam, horn, left turn, right turn)
• Max Current per Circuit: 20A
• Max Combined Current: 30A
• Color: Black
• Finish: Black
• Waterproof: Yes

Important to know

This is a universal product and may require some modification for fitment on certain motorcycles. Professional installation is recommended.
