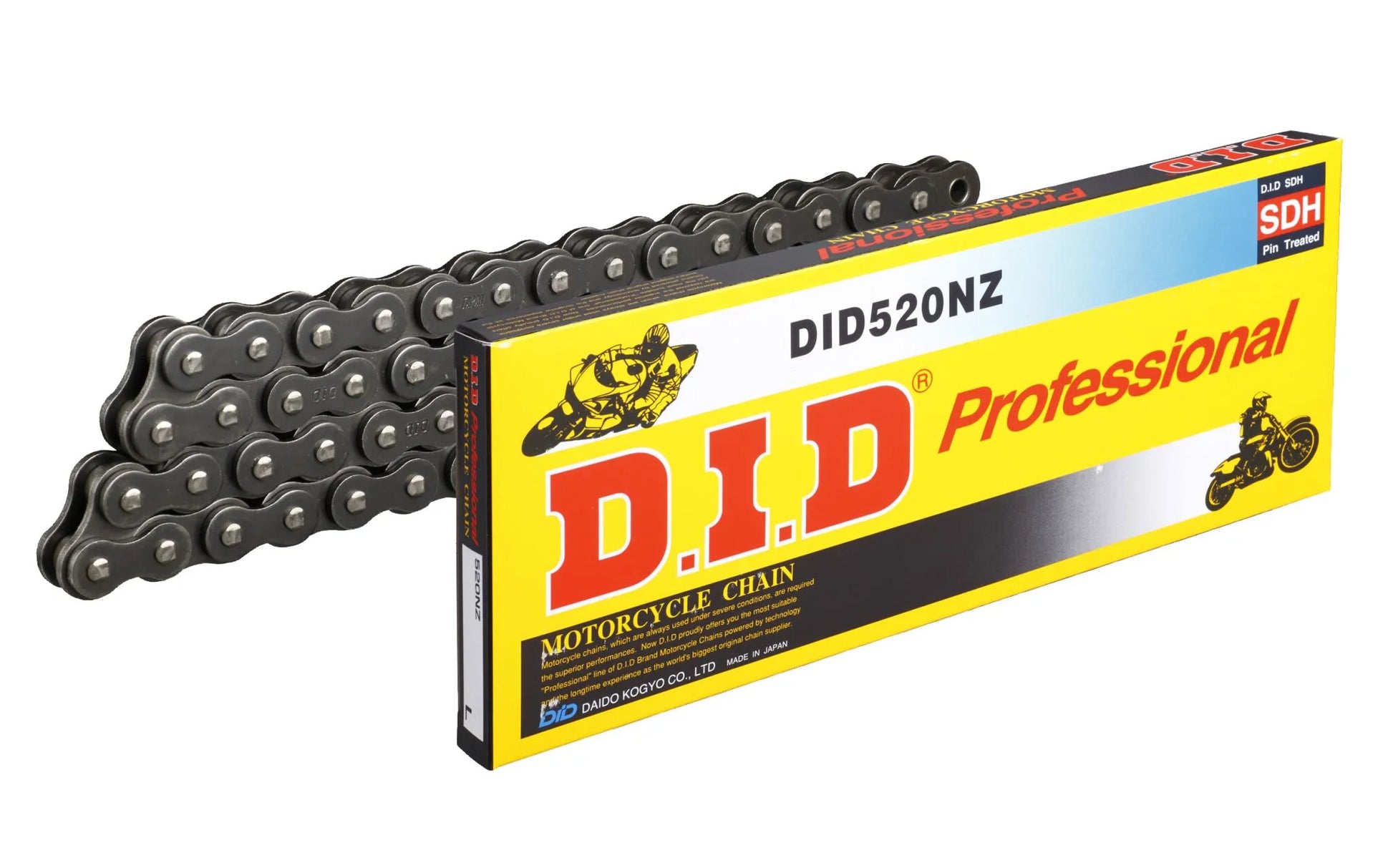

DID 520 NZ Non-Seal Chain - 106 Links - Steel

The DID 520 NZ Chain is an excellent choice for vintage and lower displacement off-road motorcycles. This non-sealed chain offers enhanced performance compared to OEM options, ensuring reliable power transfer and durability. Upgrade your bike with the trusted quality of DID.

Description

Specifically designed for motorcycles with engine displacements up to 450cc, the DID 520NZ chain provides exceptional performance and longevity. The DHA pin treatment creates a hard chromium-carbide layer on the pin surface, enhancing wear resistance and extending the chain's lifespan. Featuring quad-stake riveted pins and solid bushings, this chain delivers superior strength and minimizes stretching, making it ideal for demanding off-road conditions. The 520NZ non-sealed design ensures efficient power delivery and responsiveness, giving you the edge you need on the track or trail. Trust DID for a chain that can handle the rigors of vintage and modern off-road riding.

Features & highlights

• Enhanced Performance: Provides superior performance compared to OEM non-sealed chains.
• DHA Pin Treatment: Hard chromium-carbide layer increases pin surface hardness and wear resistance.
• Quad-Stake Riveted Pins: Ensures robust construction and prevents pin rotation.
• Solid Bushings: Offers increased durability and reduced friction for smooth operation.
• Optimized for Lower Displacement Bikes: Ideal for motorcycles up to 450cc.
• High Tensile Strength: Boasts a tensile strength of 35.8 kN (8050 lb) for reliable power transfer.

Technical specifications

• Brand: DID
• Product Name: Drive Chain
• Chain Size: 520
• Chain Type: 520 NZ
• Seal Type: Non-Seal
• Color/Finish: Steel
• Master Link Connector Type: Clip
• Maximum Engine Displacement (Offroad): 450 cc
• Maximum Engine Displacement (Street): 450 cc
• Number of Links: 106
• Tensile Strength: 35.8 kN (8050 lb)
• Weight: 1.60 kg/100 Links

Important to know

Ensure proper chain lubrication and maintenance for optimal performance and longevity. Verify compatibility with your motorcycle's specifications before installation.
