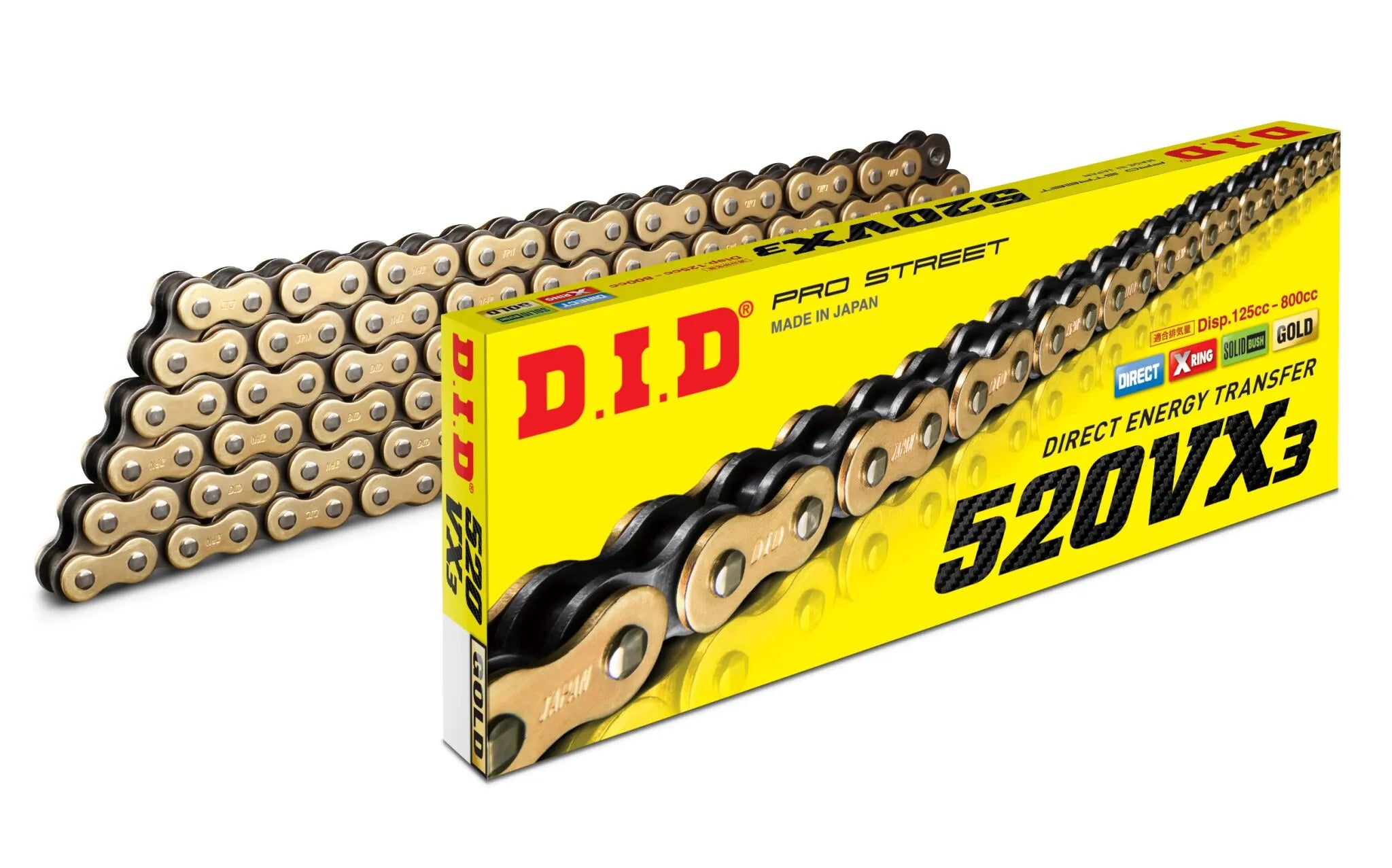

Did 520vx3 Chain - High Performance X-ring Chain
Product info
- Item number
- 12231737
- Manufacturer number
- 4525516319607
- Position
The DID 520VX3 chain is engineered for superior performance and durability, making it an excellent choice for a wide range of motorcycles. Experience enhanced throttle response and power transfer thanks to its rigid pins and advanced design. Upgrade your ride with the reliability and performance of DID, the leading name in motorcycle chains.
Description
The DID 520VX3 chain is a high-performance, low-friction drive chain featuring patented X-Ring technology. This 520VX3 chain is designed to minimize flex and maximize power transfer, providing better throttle response and overall riding experience. The improved seal performance, achieved through increased X-ring retention, significantly enhances the chain's durability and lifespan. Suitable for both street and off-road motorcycles with engine displacements up to 800cc, the DID 520VX3 ensures reliable performance in demanding conditions. With a tensile strength of 36.5 kN (8210 lb), this steel chain is built to withstand high stress and deliver consistent power.
Features & highlights
- Enhanced seal performance: Increased X-ring retention for improved durability and longer lifespan.
- High-performance, low-friction design: Patented X-Ring technology minimizes energy loss.
- Superior rigidity: Highly rigid pins reduce flex, resulting in better throttle response.
- Wide application: Suitable for a broad range of motorcycles up to 800cc.
- High Tensile Strength: Provides exceptional strength and reliability.
- Gold and Steel Finish: Offers an attractive aesthetic and corrosion resistance.
Technical specifications
- Brand: DID
- Chain Size: 520
- Chain Type: 520 VX3
- Color/Finish: Gold, Steel
- Master Link Connector Type: Rivet
- Material: Steel
- Maximum Engine Displacement (Offroad): 800 cc
- Maximum Engine Displacement (Street): 800 cc
- Number of Links: 98
- Seal Type: X-Ring
- Tensile Strength: 36.5 kN (8210 lb)
- Weight: 1.52 kg/100 Links
Important to know
Professional installation is recommended for optimal performance and safety. Ensure the correct number of links for your specific motorcycle model.
- Brand
- DID
- Vendor part number
- 4525516319607
- Product name
- Drive Chain
- Weight
- 1,52 kg/100 Links
- Tensile strength
- 36,5 kN (8210 lb)
- Seal type
- X-Ring
- Number of links
- 98
- Maximum engine displacement street
- 800 cc
- Material
- Steel
- Master link connector type
- Rivet
- Chain type
- 520 VX3
- Chain size
- 520
- Units
- Each
