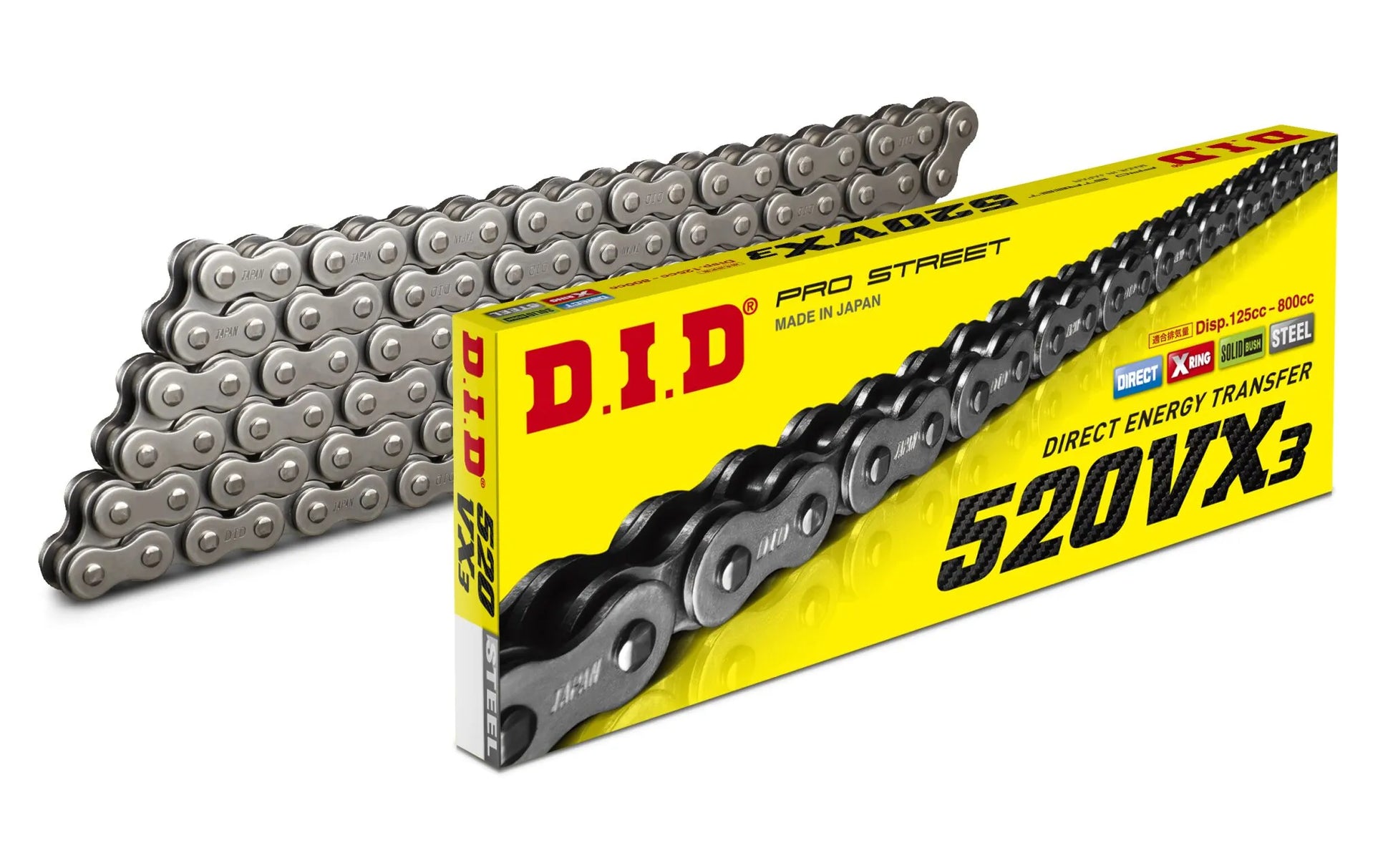

DID 520 VX3 X-Ring Chain - 104 Links - Steel - Clip Master Link
Product info
- Item number
- 12231716
- Manufacturer number
- 4525516317177
- Position
- Chain size
- 520
- Links
- 104
- Seal type
- X-Ring
- Tensile strength
- 36.5 kN
- Max. engine (street)
- 800 cc
- Max. engine (off-road)
- 800 cc
The DID 520VX3 chain is engineered for superior performance and durability, making it an excellent choice for a wide range of motorcycles. Experience enhanced throttle response and a smoother ride with this high-quality drive chain. This chain is designed to handle both on and off-road applications.
Description
The DID 520VX3 X-Ring chain delivers exceptional performance through innovative design. Featuring patented X-Rings, this chain provides superior sealing and minimizes friction, resulting in extended chain life and reduced maintenance. The highly rigid pins minimize flex, translating to improved throttle response and efficient power transfer. This 520VX3 chain is suitable for motorcycles with engine displacements up to 800cc. Crafted from high-quality steel, the DID 520VX3 offers a balance of strength and lightweight construction, enhancing your motorcycle's overall performance. The improved seal performance of the X-ring retains lubrication longer for lasting durability and reduced wear.
Features & highlights
- Enhanced seal performance with increased X-ring retention for lasting durability.
- High-performance, low-friction patented X-Ring design minimizes wear and maximizes efficiency.
- Highly rigid pins reduce flex, providing improved throttle response and power transfer.
- Suitable for both off-road and street motorcycles up to 800cc.
- Constructed from high-quality steel for optimal strength and weight.
- Tensile Strength of 36,5 kN (8210 lb)
Technical specifications
- Brand: DID
- Chain Size: 520
- Chain Type: 520VX3
- Color/Finish: Steel
- Master Link Connector Type: Clip
- Material: Steel
- Maximum Engine Displacement (Offroad): 800 cc
- Maximum Engine Displacement (Street): 800 cc
- Number of Links: 104
- Seal Type: X-Ring
- Tensile Strength: 36,5 kN (8210 lb)
- Weight: 1,52 kg/100 Links
Important to know
Always verify the correct chain length and specifications for your specific motorcycle model before installation. Professional installation is recommended.
- Brand
- DID
- Vendor part number
- 4525516317177
- Color finish
- Steel
- Product name
- Drive Chain
- Weight
- 1,52 kg/100 Links
- Tensile strength
- 36,5 kN (8210 lb)
- Seal type
- X-Ring
- Number of links
- 104
- Maximum engine displacement street
- 800 cc
- Material
- Steel
- Master link connector type
- Clip
- Chain type
- 520 VX3
- Chain size
- 520
- Units
- Each
