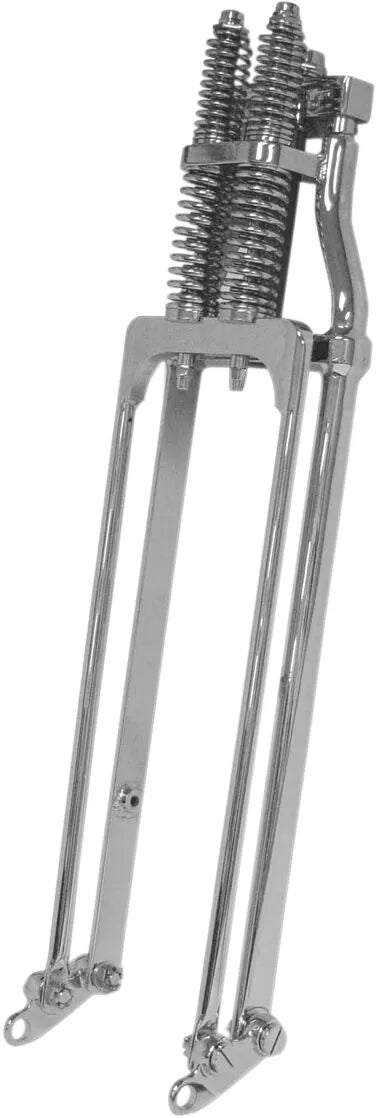

Drag Specialties Custom Springer Springer Forks - MU35214

Upgrade your ride with the Drag Specialties Custom Springer Forks. This fully assembled springer front end provides an economical alternative to shock-dampened designs, offering classic style and reliable performance for your motorcycle build. These forks are designed for ease of installation and a distinctive custom look.

Description

The Drag Specialties Custom Springer Forks are an excellent choice for riders seeking a traditional aesthetic combined with modern manufacturing quality. With an in-line top bracket (no rake), installation is straightforward. The standard length (31" from top bearing to axle) mirrors a standard FXST front end, ensuring compatibility and a familiar feel. The 1" O.D. steering stem is designed for Timken® type bearings, providing smooth and reliable steering. Both rear legs are threaded to accommodate right or left brakes, offering flexibility in your brake setup. The included 3/4" O.D. axle kit features a brake mount pivot with thrust washer and hub spacers, though custom spacers may be needed depending on your chosen wheel. These springer forks deliver both style and substance, enhancing the overall appearance and handling of your motorcycle.

Features & highlights

• Economical alternative to shock-dampened Springer forks, offering classic looks at a great value.
• Fully assembled with an in-line top bracket for easy installation and a clean aesthetic.
• Standard length (31" from top bearing to axle) comparable to a standard FXST front end.
• 1" O.D. steering stem designed for Timken® type bearings ensures smooth and reliable steering performance.
• Both rear legs are threaded for right or left brakes, providing versatile brake mounting options.
• Includes a 3/4" O.D. axle kit with brake mount pivot, thrust washer, and hub spacers for comprehensive setup.
• Riser mounts are on 4-3/4" centers, threaded 1/2"-20 for secure handlebar attachment.

Technical specifications

• Brand: Drag Specialties
• Product Name: Springer
• Color/Finish: Chrome
• Length: 31" (measured from top bearing to axle)
• Steering Stem O.D.: 1" (designed for Timken® type bearings)
• Axle O.D.: 3/4"
• Measurement between Rockers: 9-1/4"
• Riser Mount Centers: 4-3/4"
• Riser Mount Thread: 1/2"-20

Important to know

Requires a wheel compatible with a 3/4" O.D. axle. Custom spacers may be needed depending on the wheel used. Springers do not accept spotlight bars and do not have fender mounts.
