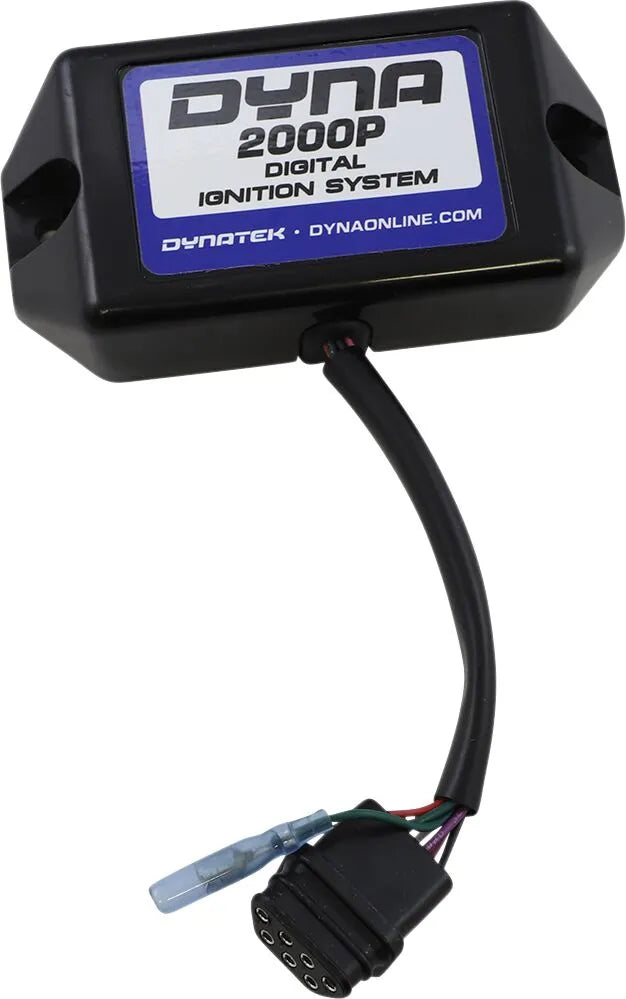

Dynatek Dyna 2000 Ignition Module - Black - DD2000-HD2EP

Upgrade your Harley-Davidson's ignition system with the Dynatek 2000-HDE PC-Programmable Digital Ignition Module. This module provides precise control over the entire ignition process, enhancing your motorcycle's performance and responsiveness. Tailor your engine's advance curve and rev limiter to meet your specific riding needs.

Description

The Dynatek 2000-HDE ignition module offers a significant improvement over stock systems. It features micro-computer control, allowing for extremely accurate ignition timing. Four built-in advance curves cater to a range of engine configurations, from stock to highly modified, adapting to various operating conditions. You can select from four independent rev limiter settings, ranging from 6000 to 7500 rpm, providing the exact level of protection your engine requires. With PC programmability, you can define custom wide-open and part-throttle curves, rev limits, dead-cranking revs, and rear cylinder offset, enabling you to fine-tune your bike's performance. A separate tach output wire ensures clean tachometer operation during rev limiting and in single-fire mode. The integrated diagnostic LED simplifies troubleshooting and static timing adjustments. Proudly made in the USA, the Dynatek 2000-HDE delivers enhanced performance and reliability.

Features & highlights

• Micro-computer controlled for precise ignition timing and enhanced performance.
• Four built-in advance curves to suit stock to highly modified engines.
• Four independent rev limiter choices (6000-7500 rpm) for optimal engine protection.
• PC programmability allows custom tuning of advance curves, rev limits, and more.
• Separate tach output wire ensures clean tach operation.
• Diagnostic LED simplifies troubleshooting and static timing.
• Made in the USA.

Technical specifications

• Brand: Dynatek
• Product Name: Module
• Type: Ignition
• Ignition Fire Method: Dual
• Connection Type: 7 Pin
• Color/Finish: Black

Important to know

This ignition module is not compatible with fuel-injected models or Dyna "S" systems. Use only HD1/HD2 systems. It's crucial to use carbon fiber-type suppression spark plug wires to minimize radio frequency interference; copper wires may cause ignition malfunction due to electrical noise. Original Harley-Davidson wires should be suitable.
